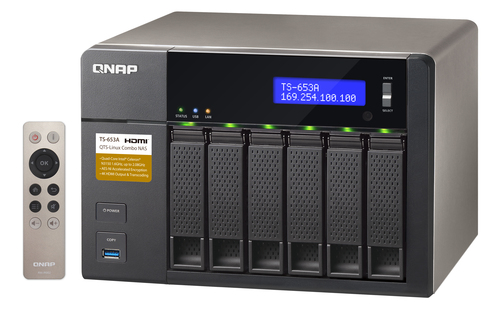

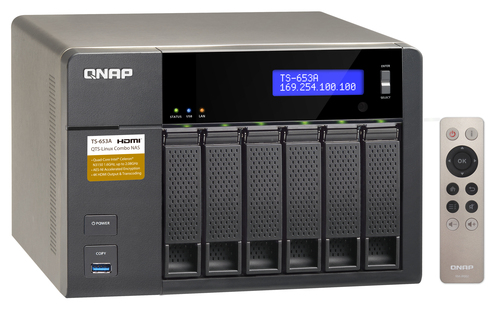

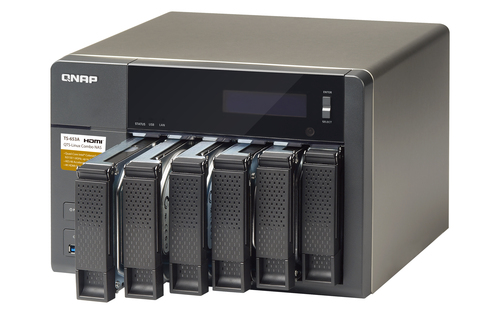

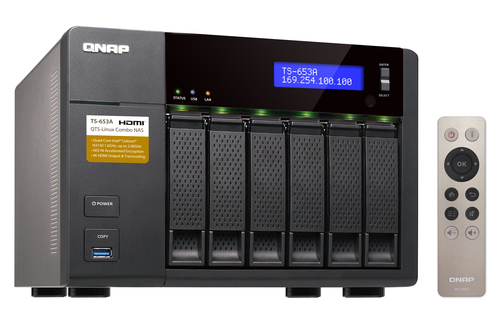

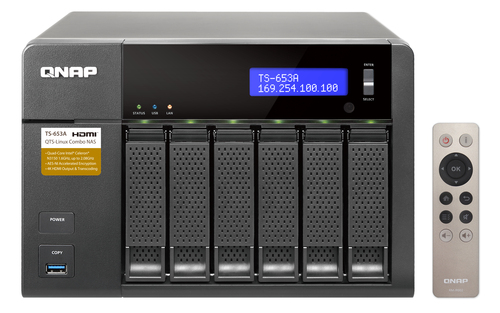

TS-653A NAS Tower Intel® Celeron® N3150
4 GB DDR3L 0 TB QNAP Turbo System Black
Model TS-653APart no. TS-653A-4G/3X1,0TBEAN 5050914925642
175 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Noise21 dB
- TypeNAS
- OSQNAP Turbo System
- Weight5.2 kg
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Noise
- 21 dB
- Type
- NAS
- OS
- QNAP Turbo System
- Weight
- 5.2 kg
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-653A
- Part numbers
- TS-653A-4G/3X1,0TB, TS-653A-4G, TS-653A-8G, TS-653A-4G-US, TS-653A-8G-US, TS-653A-4G-12TB-RED +34 more
- EAN / UPC
- 5050914925642, 885022009893, 4058154000182, 4712511128574 +45 more
- Also known as
- QNAP TS-653A NAS Tower Intel® Celeron® N3150 4 GB DDR3L 0 TB QNAP Turbo System Black
Specifications
175 specifications in 15 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 6 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3150 |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 2.08 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 2 MB |
| L2 cache | 2 MB |
| CPU configuration (max) | 1 |
| ECC supported by processor | No |
| Integrated 4G WiMAX | No |
| PCI Express configurations | 1x4, 4x1 |
| PCI Express slots version | 2.0 |
| Processor cache type | Smart Cache |
| Processor code | SR29F |
| Processor codename | Braswell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 25 x 27 mm |
| Processor series | Intel Celeron N3000 series |
| Processor socket | BGA 1170 |
| Scenario Design Power (SDP) | 4 W |
| Stepping | C0 |
| System bus rate | 5 GT/s |
| Thermal Design Power (TDP) | 6 W |
| Tjunction | 90 °C |
| On-board graphics card model | Intel® HD Graphics |
| Maximum internal memory supported by processor | 8 GB |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L |
| Memory clock speed | 1600 MHz |
| Maximum RAM supported | 8 GB |
| Memory slots | 2 |
| Flash memory | 512 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Link aggregation | Yes |
| Supported network protocols | CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC |

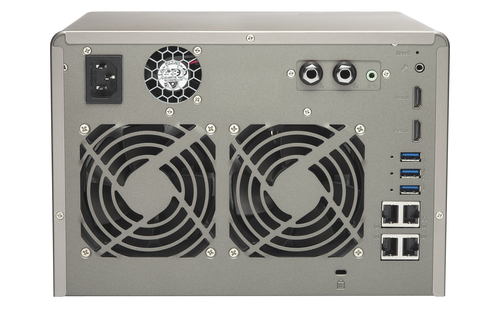

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Fiber ports quantity | 0 |
| HDMI ports quantity | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 640 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 9 cm |
| LED indicators | HDD, Status, USB |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Noise level | 21 dB |
| Share folder access right management | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome |
| Built-in FTP server | Yes |
| Built-in UPnP AV media server | Yes |
| Built-in iTunes server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Password authentication | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Share folder | CIFS/SMB |
| System log | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP Turbo System |
| Operating system version | 4.2 |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 8, Windows 8 x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 240 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 51.16 W |
| Power consumption (sleep) | 32.02 W |
| Power consumption (off) | 1.7 W |
| AC input voltage | 110-240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
| Output current | 5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 257 mm |
| Depth | 235 mm |
| Height | 175 mm |
| Weight | 5.2 kg |
| Package weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
| Number of screws | 42 |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Home Networking (by Intel) | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology | No |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Maximum number of PCI Express lanes | 4 |
| Number of execution units | 12 |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3L-SDRAM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
| Power management | Yes |
| Processor ARK ID | 87258 |
