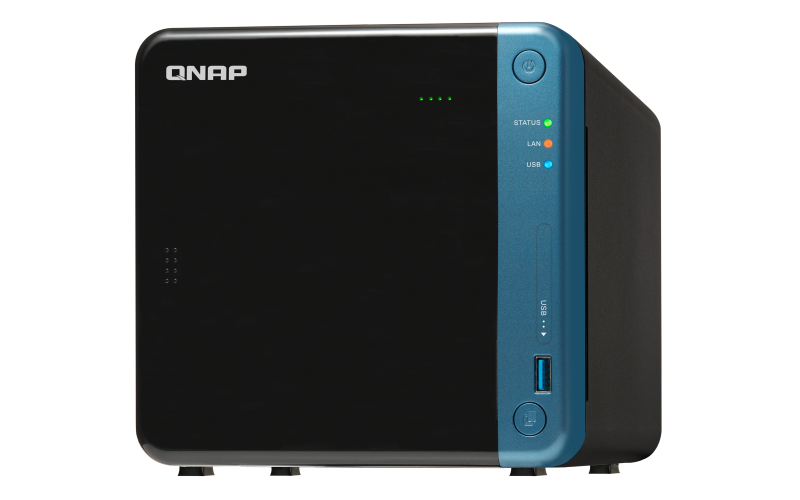

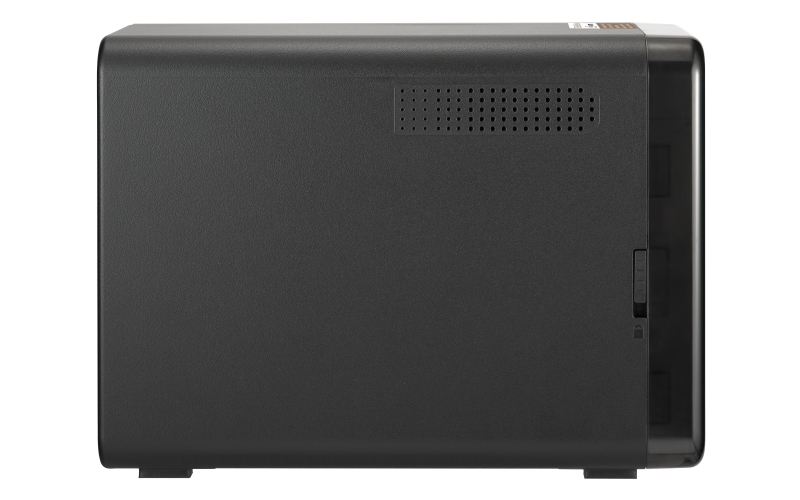

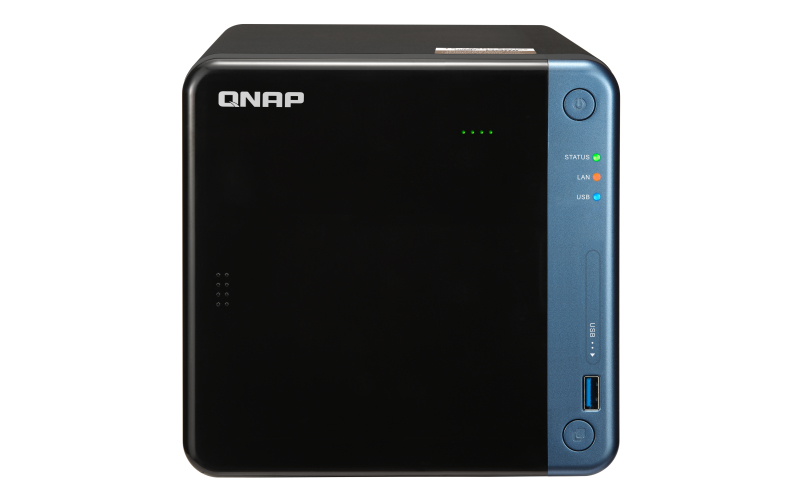

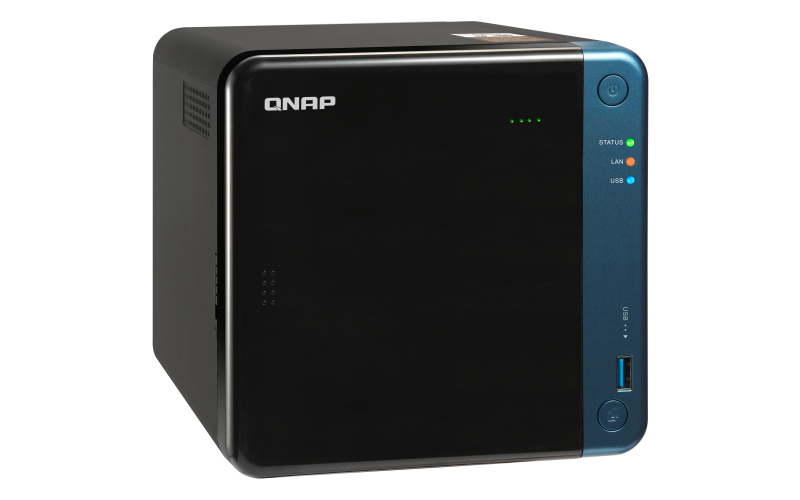

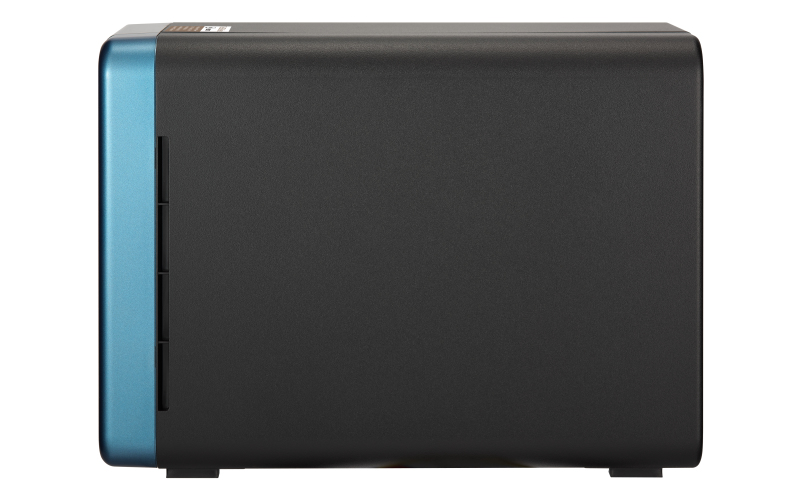

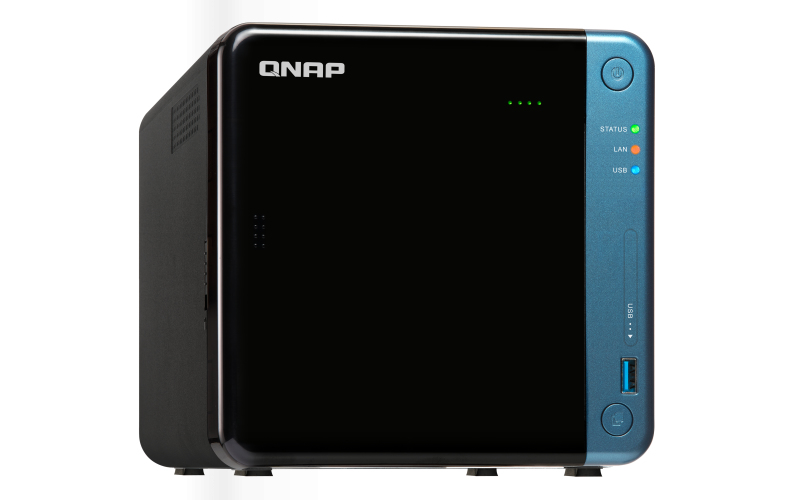

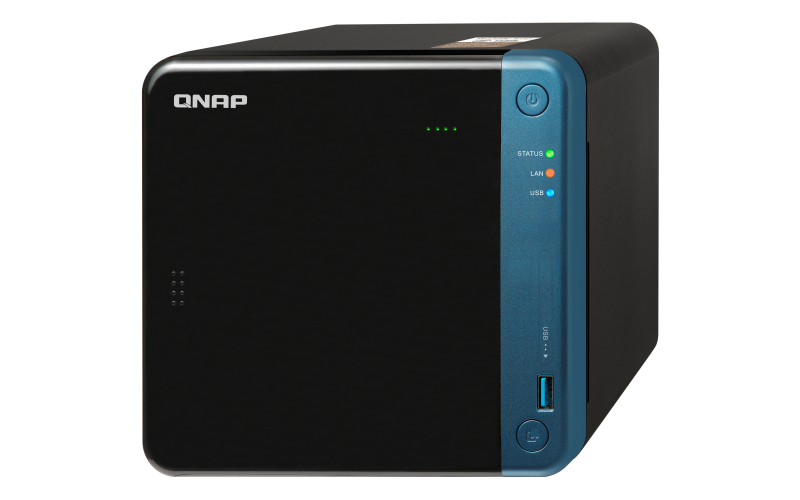

TS-453BE-4G NAS Desktop Intel® Celeron® J3455
2 GB DDR3L 16 TB HDD+SSD QNAP Turbo System Black, Grey
Model TS-453BE-4GPart no. TS-453BE-4G/16TB-IWEAN 5050914070595
179 specifications
- ProcessorIntel® Celeron®
- Memory2 GB
- TypeNAS
- OSQNAP Turbo System
- ColourBlack, Grey
- Storage drives installedYes
Overview
- Processor
- Intel® Celeron®
- Memory
- 2 GB
- Type
- NAS
- OS
- QNAP Turbo System
- Colour
- Black, Grey
- Storage drives installed
- Yes
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-453BE-4G
- Part number
- TS-453BE-4G/16TB-IW
- EAN / UPC
- 5050914070595, 5050914102432, 5051868067105, 5055628428113
- Also known as
- QNAP TS-453BE-4G NAS Desktop Intel® Celeron® J3455 2 GB DDR3L 16 TB HDD+SSD QNAP Turbo System Black, Grey
Specifications
179 specifications in 15 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 16 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD+SSD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 4 TB |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |

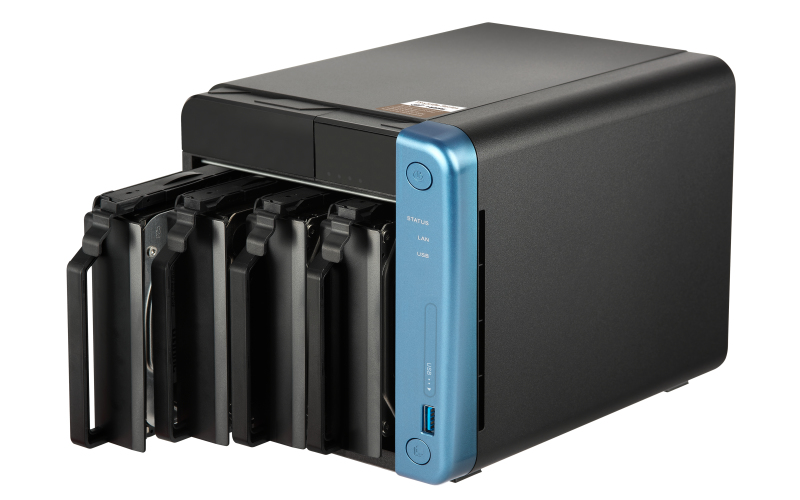

| Hot-swap drive bays | Yes |
| Supported file systems | ext4 |
| Bad block scan | Yes |
| Disk roaming | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J3455 |
| Processor frequency | 1.5 GHz |
| Processor boost frequency | 2.3 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 2 MB |
| CPU configuration (max) | 1 |
| ECC supported by processor | No |
| PCI Express configurations | 1x2+2x1, 4x1 |
| PCI Express slots version | 2.0 |
| Processor cache type | Smart Cache |
| Processor code | SR2Z9 |
| Processor codename | Apollo Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 24 x 31 mm |
| Processor socket | BGA 1296 |
| Stepping | B1 |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| On-board graphics card model | Intel® HD Graphics 500 |
| Maximum internal memory supported by processor | 8 GB |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3L |
| Maximum RAM supported | 8 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Wi-Fi | No |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |

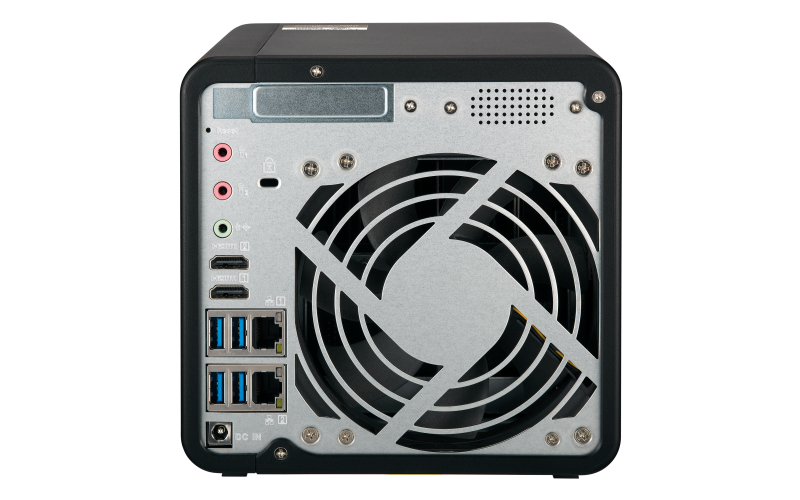

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Fiber ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b |
| 3.5 mm (1/8-inch) out | Yes |
| Audio in/out | Yes |
| Microphone in | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card burst frequency | 750 MHz |
| On-board graphics card dynamic frequency (max) | 750 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| LED indicators | HDD, LAN, Power, Status, USB |
| Built-in display | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Multilingual support | Yes |
| Third-party support | Yes |
| Built-in optical drive | No |
| Card reader integrated | No |
| Snapshot | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Internet Explorer 10+, Chrome, Safari 7+, Firefox |
| Built-in BitTorrent client | Yes |
| Built-in FTP server | Yes |
| Built-in UPnP AV media server | Yes |
| Built-in iTunes server | Yes |
| Disk scan | Yes |
| Hot spare | Yes |
| Password authentication | Yes |
| Remotely operated | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 256-bit WEP, FIPS 140-2, HTTPS, SSH, SSL/TLS |
| Share folder | CIFS/SMB |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP Turbo System |
| Operating system version | 4.3.4 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Power
| Specification | Value |
|---|---|
| Power supply location | External |
| Power supply unit (PSU) capacity | 90 W |
| AC input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 226 mm |
| Height | 168 mm |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
| Number of screws | 12 |
| Package type | Box |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology | No |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Maximum number of PCI Express lanes | 6 |
| Number of execution units | 12 |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
| Power management | Yes |
| Processor ARK ID | 95594 |
| I/O ports | 1 PCIe 2.0 x2 |
