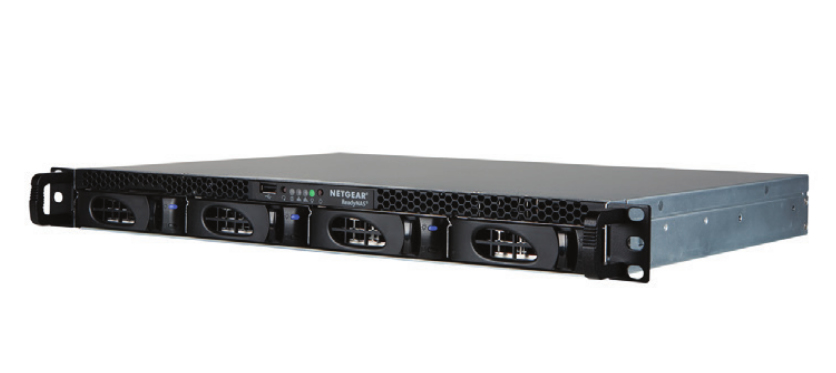

NETGEAR RR230400-100NES NAS Rack (1U)

2 GB 12000 TB HDD Black, Grey

Model RR230400-100NESPart no. RR230400-100NES/4TB-IWEAN 5055628424511

76 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: RR230400-100NES
Part numbers: RR230400-100NES/4TB-IW, RR230400-100NES/8TB-IW, RR230400-100NES/12TB-IW, RR230400-100NES/12TB-IW+R, RR230400-100NES/24TB-IW, RR230400-100NES/32TB-IW +2 more
EAN / UPC: 5055628424511, 5055628424535, 5055628424542, 5055628424559 +3 more
Also known as: NETGEAR RR230400-100NES NAS Rack (1U) 2 GB 12000 TB HDD Black, Grey

76 specifications in 12 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	12000 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	3 TB
Storage drive interface	Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Specification	Value
Processor frequency	2 GHz

Specification	Value
Internal memory	2 GB
Flash memory	128 MB

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic IP	Yes
Link aggregation	Yes
Load balancing system	Yes
Static IP	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, NTP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud
Multilingual support	Yes
Number of users	40 user(s)
Management protocols	SNMP v2, v3
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+
Built-in UPnP AV media server	Yes
Built-in iTunes server	Yes
Hot spare	Yes
On/off switch	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, SSH
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Other operating systems supported	Android, VMware vSphere ESXi, iOS

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	180 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Compliance certificates	RoHS
Digital Living Network Alliance (DLNA) certified	Yes
Certification	FCC B, CE B, VCCI B
