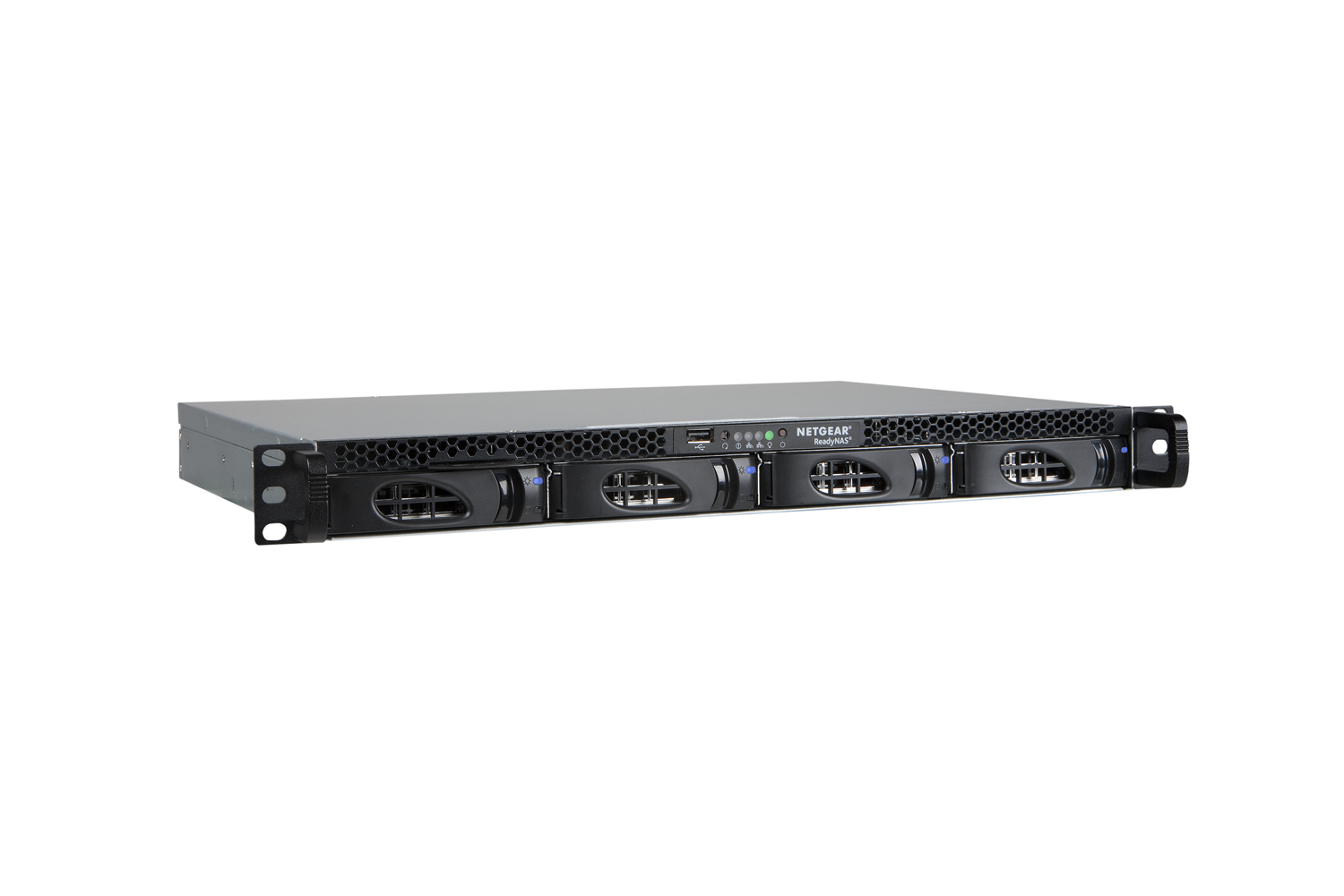

NETGEAR ReadyNas RR2304

NETGEAR ReadyNas RR2304

Model ReadyNas RR2304Part no. RR230400-100NES+4TB-S-IW

78 specifications
  • ProcessorIntel® Celeron®
  • Memory2 GB
  • TypeNAS
  • OSReadyNAS OS
  • ColourBlack, Grey
  • Storage drives installedYes
See all specifications

Overview

Processor
Intel® Celeron®
Memory
2 GB
Type
NAS
OS
ReadyNAS OS
Colour
Black, Grey
Storage drives installed
Yes
Brand
NETGEAR
Model
ReadyNas RR2304
Part numbers
RR230400-100NES+4TB-S-IW, RR230400-100NES+4TB-S-IWSRS, RR230400-100NES+8TB-S-IW, RR230400-100NES+8TB-S-IWSRS
Also known as
NETGEAR ReadyNas RR2304 NAS Rack (1U) Intel® Celeron® 2 GB 4 TB HDD ReadyNAS OS Black, Grey

Specifications

78 specifications in 12 groups

Storage

Storage drives installedYes
Total installed storage capacity4 TB
Number of storage drives installed4
Number of storage drives supported4
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity1 TB
Storage drive interfaceSerial ATA III
Storage drive sizes supported2.5,3.5"
Maximum supported storage capacity48 TB
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Hot-swap drive baysYes
Supported file systemsBTRFS, FAT32, HFS+, NTFS, ext3, ext4
Bad block scanYes

Processor

Processor familyIntel® Celeron®
Processor frequency2 GHz
Processor cores2

Memory

Internal memory2 GB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
DHCP clientYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Dynamic IPYes
Link aggregationYes
Load balancing systemYes
Static IPYes
Supported network protocolsTCP/IP, IPv4, IPv6, NTP

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Fiber ports quantity0

Design

Chassis typeRack (1U)
Cooling typeActive
Product colourBlack, Grey
Number of fans3 fan(s)
Fan diameter4 cm
LED indicatorsActivity, HDD, LAN, Power

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud
Multilingual supportYes
Number of users40 user(s)
Management protocolsSNMP v2, v3
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedMicrosoft Internet Exploer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+
Built-in UPnP AV media serverYes
Hot spareYes
On/off switchYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, SSH
System logYes
Universal Plug and Play (UPnP)Yes

Software

Operating system installedReadyNAS OS
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supportedYes
Mac operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012
Other operating systems supportedAndroid, VMware vSphere ESXi, iOS

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity180 W
Number of power supply units1
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width430 mm
Depth308 mm
Height44 mm

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Other features

Compliance certificatesRoHS
Digital Living Network Alliance (DLNA) certifiedYes
CertificationFCC B, CE B, VCCI B
