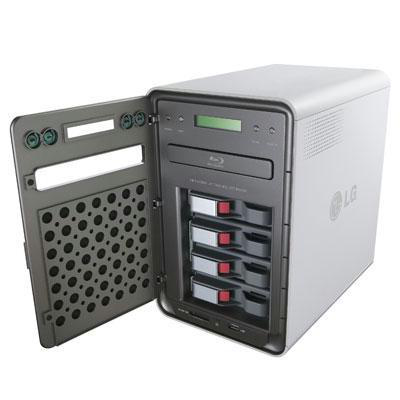

LG N4B2ND4 NAS/storage server Intel Atom® D510

1 GB 4 TB Linux Kernel 2.6

Model N4B2ND4Part no. N4B2ND4.AUAREAN 8808992851462

73 specifications

Overview

Brand: LG
Category: NAS & Storage Servers
Model: N4B2ND4
Part numbers: N4B2ND4.AUAR, N4B2ND4
EAN / UPC: 8808992851462, 058231296198, 058231296211, 5052180003758 +1 more
Also known as: LG N4B2ND4 NAS/storage server Intel Atom® D510 1 GB 4 TB Linux Kernel 2.6

73 specifications in 12 groups

Specification	Value
Total installed storage capacity	4 TB
Number of storage drives installed	4
Storage drive capacity	1 TB
Storage drive interface	Serial ATA II
RAID levels	0, 1, 1+0, 5, JBOD
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor frequency	1.66 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBLA
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	1 GB

Specification	Value
DHCP client	Yes
Compliance industry standards	IEEE 802.3/802.3u/802.3ab
Data link protocols	SMB/CIFS, AFP, FTP, DDNS
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP

Specification	Value
Operating system installed	Linux Kernel 2.6

Specification	Value
Power consumption (typical)	38 W

Specification	Value
Weight	7 kg

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 85%

Specification	Value
Compatible operating systems	Windows 2000/XP/Vista/7/Server 2003 Mac OS 10.3+ Linux/Fedora/Ubuntu/Suse
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	190 x 271 x 295 mm
Link/Act LED	Yes
Networking features	Gigabit Ethernet
Power requirements	100-240V, 50-60Hz
Certification	FCC, UL, CE, CE, RoHS
Processor ARK ID	43098
