Product comparison · 2 nas & storage servers

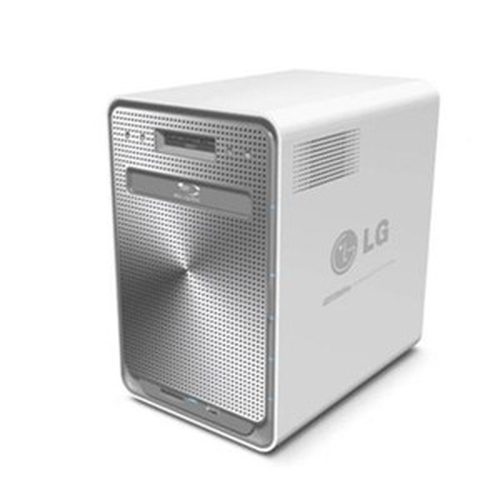

LG N4B2N Intel Atom® D510 vs LG N4B2ND4 NAS/storage server Intel Atom® D510

Add a product
  • 65specifications compared
  • 7differ
  • 58identical
  • 12known for one product only

Key differences

  • Total installed storage capacity
    • 0 TB
    • 4 TB
  • Number of storage drives installed
    • 0
    • 4
  • Storage drive capacity
    • 0 GB
    • 1 TB
  • RAID levels
    • 0, 1, 1+0, 5
    • 0, 1, 1+0, 5, JBOD
  • Dimensions (WxDxH)
    • 190 x 295 x 271 mm
    • 190 x 271 x 295 mm
  • Power requirements
    • 100 - 240V
    • 100-240V, 50-60Hz

Side by side

Differences highlightedShow differences only
77 specifications
A

LG

N4B2N Intel Atom® D510

Model N4B2N

View product
B

LG

N4B2ND4 NAS/storage server Intel Atom® D510

Model N4B2ND4

View product
Storage4 differ
Total installed storage capacityDiffers0 TB4 TB
Number of storage drives installedDiffers04
Storage drive capacityDiffers0 GB1 TB
Storage drive interfaceSerial ATA IISerial ATA II
RAID levelsDiffers0, 1, 1+0, 50, 1, 1+0, 5, JBOD
Hot-swap drive baysKnown for oneYes
Processoridentical
Processor manufacturerIntelIntel
Processor familyIntel Atom®Intel Atom®
Processor modelD510D510
Processor frequency1.66 GHz1.66 GHz
Processor cores22
Processor threads44
Processor cache1 MB1 MB
L2 cacheKnown for one1 MB
Bus typeDMIDMI
ECC supported by processorNoNo
Number of processors installed11
Physical Address Extension (PAE)32 bit32 bit
Processing Die size87 mm²87 mm²
Processor cache typeL2L2
Processor codeSLBLASLBLA
Processor codenamePineviewPineview
Processor lithography45 nm45 nm
Processor operating modes64-bit64-bit
Processor package size22 x 22 mm22 x 22 mm
Processor socketBGA 559BGA 559
SteppingB0B0
Thermal Design Power (TDP)13 W13 W
Tjunction100 °C100 °C
Maximum internal memory supported by processor4 GB4 GB
Memory bandwidth supported by processor (max)6.4 GB/s6.4 GB/s
Conflict-Free processorNoNo
Memoryidentical
Internal memory1 GB1 GB
Network1 differ
DHCP clientKnown for oneYes
Compliance industry standardsDiffersIEEE802.3ab / IEEE802.3u/IEEE802.3IEEE 802.3/802.3u/802.3ab
Data link protocolsSMB/CIFS, AFP, FTP, DDNSSMB/CIFS, AFP, FTP, DDNS
Maximum data transfer rateKnown for one1000 Mbit/s
Supported network protocolsTCP/IPTCP/IP
Cabling technologyKnown for one10/100/1000Base-T(X)
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports11
USB 2.0 ports quantity33
eSATAYesYes
Performanceidentical
Optical drive typeBlu-RayBlu-Ray
Compatible memory cardsMemory Stick (MS), MMC, SD, xDMemory Stick (MS), MMC, SD, xD
Management protocolsHTTP/SHTTP/S
On/off switchKnown for oneYes
Reset buttonKnown for oneYes
Softwareidentical
Operating system installedLinux Kernel 2.6Linux Kernel 2.6
Poweridentical
Power consumption (typical)38 W38 W
Weight & dimensionsidentical
Weight7 kg7 kg
Processor special featuresidentical
Embedded options availableYesYes
Enhanced Intel SpeedStep TechnologyNoNo
Execute Disable BitYesYes
Idle StatesNoNo
Intel 64YesYes
Intel Demand Based SwitchingNoNo
Intel Enhanced Halt StateNoNo
Intel Trusted Execution TechnologyNoNo
Intel Virtualization Technology (VT-x)NoNo
Intel Virtualization Technology for Directed I/O (VT-d)NoNo
Intel® AES New Instructions (Intel® AES-NI)NoNo
Intel® Hyper Threading Technology (Intel® HT Technology)YesYes
Intel® Turbo Boost TechnologyNoNo
Number of Processing Die Transistors176 M176 M
Thermal Monitoring TechnologiesNoNo
Memory channels supported by processorSingleSingle
Operational conditionsidentical
Operating temperature (T-T)Known for one0 - 40 °C
Operating relative humidity (H-H)Known for one15 - 85%
Other features2 differ
Compatible operating systemsKnown for oneWindows 2000/XP/Vista/7/Server 2003 Mac OS 10.3+ Linux/Fedora/Ubuntu/Suse
Data transfer rateKnown for one3 Gbit/s
Dimensions (WxDxH)Differs190 x 295 x 271 mm190 x 271 x 295 mm
Link/Act LEDYesYes
Networking featuresGigabit EthernetGigabit Ethernet
Power requirementsDiffers100 - 240V100-240V, 50-60Hz
CertificationFCC, UL, CE, CE, RoHSFCC, UL, CE, CE, RoHS
Processor ARK ID4309843098
Connectivity LEDsKnown for oneYes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
