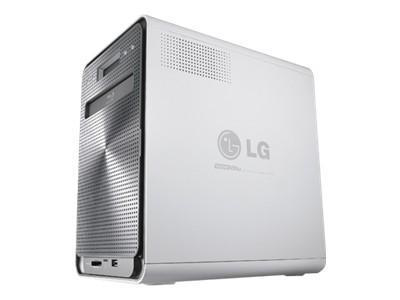

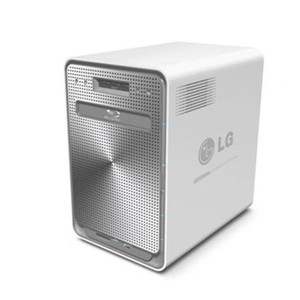

LG N4B2N Intel Atom® D510

LG N4B2N Intel Atom® D510

1 GB 0 TB Linux Kernel 2.6

Model N4B2NPart no. N4B2N.AUAR01IEAN 8808992852933

69 specifications
  • ProcessorIntel Atom®
  • Memory1 GB
  • OSLinux Kernel 2.6
  • Weight7 kg
  • Total installed storage capacity0 TB
  • Processor manufacturerIntel
See all specifications

Overview

Processor
Intel Atom®
Memory
1 GB
OS
Linux Kernel 2.6
Weight
7 kg
Total installed storage capacity
0 TB
Processor manufacturer
Intel
Brand
LG
Model
N4B2N
Part number
N4B2N.AUAR01I
EAN / UPC
8808992852933
Also known as
LG N4B2N Intel Atom® D510 1 GB 0 TB Linux Kernel 2.6

Specifications

69 specifications in 11 groups

Storage

Total installed storage capacity0 TB
Number of storage drives installed0
Storage drive capacity0 GB
Storage drive interfaceSerial ATA II
RAID levels0, 1, 1+0, 5

Processor

Processor manufacturerIntel
Processor familyIntel Atom®
Processor modelD510
Processor frequency1.66 GHz
Processor cores2
Processor threads4
Processor cache1 MB
Bus typeDMI
ECC supported by processorNo
Number of processors installed1
Physical Address Extension (PAE)32 bit
Processing Die size87 mm²
Processor cache typeL2
Processor codeSLBLA
Processor codenamePineview
Processor lithography45 nm
Processor operating modes64-bit
Processor package size22 x 22 mm
Processor socketBGA 559
SteppingB0
Thermal Design Power (TDP)13 W
Tjunction100 °C
Maximum internal memory supported by processor4 GB
Memory bandwidth supported by processor (max)6.4 GB/s
Conflict-Free processorNo

Memory

Internal memory1 GB

Network

Compliance industry standardsIEEE802.3ab / IEEE802.3u/IEEE802.3
Cabling technology10/100/1000Base-T(X)
Data link protocolsSMB/CIFS, AFP, FTP, DDNS
Supported network protocolsTCP/IP

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity3
eSATAYes

Performance

Optical drive typeBlu-Ray
Compatible memory cardsMemory Stick (MS), MMC, SD, xD
Management protocolsHTTP/S
On/off switchYes
Reset buttonYes

Software

Operating system installedLinux Kernel 2.6

Power

Power consumption (typical)38 W

Weight & dimensions

Weight7 kg

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyNo
Execute Disable BitYes
Idle StatesNo
Intel 64Yes
Intel Demand Based SwitchingNo
Intel Enhanced Halt StateNo
Intel Trusted Execution TechnologyNo
Intel Virtualization Technology (VT-x)No
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost TechnologyNo
Number of Processing Die Transistors176 M
Thermal Monitoring TechnologiesNo
Memory channels supported by processorSingle

Other features

Dimensions (WxDxH)190 x 295 x 271 mm
Link/Act LEDYes
Networking featuresGigabit Ethernet
Power requirements100 - 240V
CertificationFCC, UL, CE, CE, RoHS
Processor ARK ID43098
Connectivity LEDsYes
