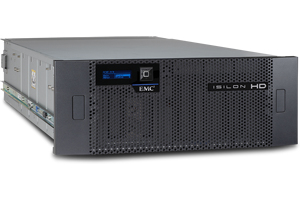

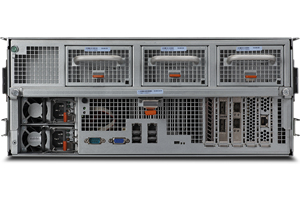

EMC HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2

24 GB DDR3 354.8 TB HDD+SSD Black

Model HD400Part no. HD400-SATA-S40

102 specifications

Overview

Brand: EMC
Category: NAS & Storage Servers
Model: HD400
Part numbers: HD400-SATA-S40, HD400-SATA-S17, HD400-SATA-S18, HD400-SATA-E07, HD400-SATA-E08, HD400-SATA-S18-HO +3 more
Also known as: EMC HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2 24 GB DDR3 354.8 TB HDD+SSD Black

102 specifications in 12 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	354.8 TB
Number of storage drives supported	60
Installed storage drive type	HDD+SSD
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA III
Storage drive size	3.5"

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2407V2
Processor frequency	2.4 GHz
Processor boost frequency	2.4 GHz
Processor cores	4
Processor threads	4
Processor cache	10 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
FSB Parity	No
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor cache type	Smart Cache
Processor code	SR1AK
Processor codename	Ivy Bridge EN
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor socket	LGA 1356 (Socket B2)
Scalability	2S
Stepping	S1
System bus rate	6.4 GT/s
Tcase	76 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	384 GB
Memory bandwidth supported by processor (max)	32 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	NFSv3, NFSv4, NFS, SMB1 (CIFS), SMB2, SMB3 Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, ADS

Specification	Value
USB port	No
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0

Specification	Value
Type	NAS

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	1450 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
AC input voltage	220 V

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	24
Number of QPI links	1
Physical Address Extension (PAE)	Yes
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Triple
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Processor ARK ID	75782
