Product comparison · 2 nas & storage servers

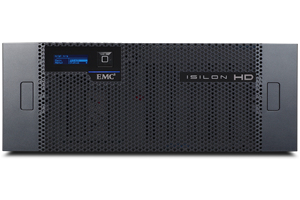

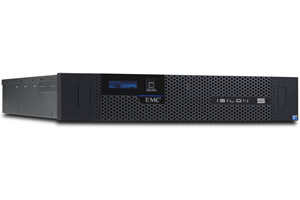

EMC HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2 vs EMC S210 NAS Rack (2U) Intel® Xeon®

30specifications compared
14differ
16identical
76known for one product only

Key differences

Total installed storage capacity
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:354.8 TB
- S210 NAS Rack (2U) Intel® Xeon®:27.2 TB
Number of storage drives supported
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:60
- S210 NAS Rack (2U) Intel® Xeon®:24
Storage drive interface
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:Serial ATA III
- S210 NAS Rack (2U) Intel® Xeon®:Serial Attached SCSI (SAS)
Storage drive size
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:3.5"
- S210 NAS Rack (2U) Intel® Xeon®:2.5"
Processor family
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:Intel® Xeon® E5 V2 Family
- S210 NAS Rack (2U) Intel® Xeon®:Intel® Xeon®
Processor cores
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:4
- S210 NAS Rack (2U) Intel® Xeon®:6
Internal memory
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:24 GB
- S210 NAS Rack (2U) Intel® Xeon®:256 GB
Maximum RAM supported
- HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2:48 GB
- S210 NAS Rack (2U) Intel® Xeon®:256 GB

Side by side

Differences highlightedShow differences only

Comparison of HD400, S210
106 specifications	A EMC HD400 NAS Rack (4U) Intel® Xeon® E5 V2 Family E5-2407V2 Model HD400 View product	B EMC S210 NAS Rack (2U) Intel® Xeon® Model S210 View product
Storage4 differ
Storage drives installed	Yes	Yes
Total installed storage capacityDiffers	354.8 TB	27.2 TB
Number of storage drives supportedDiffers	60	24
Installed storage drive type	HDD+SSD	HDD+SSD
Supported storage drive types	HDD & SSD	HDD & SSD
Storage drive interfaceDiffers	Serial ATA III	Serial Attached SCSI (SAS)
Storage drive sizeDiffers	3.5"	2.5"
Processor2 differ
Processor manufacturerKnown for one	Intel	Unknown — not stated by the source
Processor familyDiffers	Intel® Xeon® E5 V2 Family	Intel® Xeon®
Processor modelKnown for one	E5-2407V2	Unknown — not stated by the source
Processor frequencyKnown for one	2.4 GHz	Unknown — not stated by the source
Processor boost frequencyKnown for one	2.4 GHz	Unknown — not stated by the source
Processor coresDiffers	4	6
Processor threadsKnown for one	4	Unknown — not stated by the source
Processor cacheKnown for one	10 MB	Unknown — not stated by the source
Bus typeKnown for one	QPI	Unknown — not stated by the source
CPU configuration (max)Known for one	2	Unknown — not stated by the source
ECC supported by processorKnown for one	Yes	Unknown — not stated by the source
FSB ParityKnown for one	No	Unknown — not stated by the source
PCI Express slots versionKnown for one	3.0	Unknown — not stated by the source
Physical Address Extension (PAE)Known for one	46 bit	Unknown — not stated by the source
Processor cache typeKnown for one	Smart Cache	Unknown — not stated by the source
Processor codeKnown for one	SR1AK	Unknown — not stated by the source
Processor codenameKnown for one	Ivy Bridge EN	Unknown — not stated by the source
Processor lithographyKnown for one	22 nm	Unknown — not stated by the source
Processor operating modesKnown for one	64-bit	Unknown — not stated by the source
Processor package sizeKnown for one	45 x 42.5 mm	Unknown — not stated by the source
Processor socketKnown for one	LGA 1356 (Socket B2)	Unknown — not stated by the source
ScalabilityKnown for one	2S	Unknown — not stated by the source
SteppingKnown for one	S1	Unknown — not stated by the source
System bus rateKnown for one	6.4 GT/s	Unknown — not stated by the source
TcaseKnown for one	76 °C	Unknown — not stated by the source
Thermal Design Power (TDP)Known for one	80 W	Unknown — not stated by the source
Maximum internal memory supported by processorKnown for one	384 GB	Unknown — not stated by the source
Memory bandwidth supported by processor (max)Known for one	32 GB/s	Unknown — not stated by the source
Conflict-Free processorKnown for one	No	Unknown — not stated by the source
Memory2 differ
Internal memoryDiffers	24 GB	256 GB
Internal memory typeKnown for one	DDR3	Unknown — not stated by the source
Maximum RAM supportedDiffers	48 GB	256 GB
Network1 differ
Ethernet LAN	Yes	Yes
Wi-Fi	No	No
Supported network protocolsDiffers	NFSv3, NFSv4, NFS, SMB1 (CIFS), SMB2, SMB3 Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, ADS	NFSv3, NFSv4, NFS (UDP/TCP), SMB1 (CIFS), SMB2, SMB3, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, ADS, NIS
Ethernet LAN data ratesKnown for one	Unknown — not stated by the source	10,100,1000,10000 Mbit/s
Ports & interfacesidentical
USB port	No	No
USB 2.0 ports quantity	0	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0	0
Ethernet LAN (RJ-45) portsKnown for one	Unknown — not stated by the source	2
Design1 differ
Chassis typeDiffers	Rack (4U)	Rack (2U)
Cooling type	Active	Active
Product colour	Black	Black
Performanceidentical
Type	NAS	NAS
Device classKnown for one	Unknown — not stated by the source	Large Enterprise Business
Security algorithmsKnown for one	Unknown — not stated by the source	256-bit AES, FIPS 140-2
Power1 differ
Power supply location	Built-in	Built-in
Power supply unit (PSU) capacityDiffers	1450 W	875 W
Number of power supply units	2	2
Redundant power supply (RPS) support	Yes	Yes
AC input voltageKnown for one	220 V	Unknown — not stated by the source
Weight & dimensions3 differ
WidthDiffers	480 mm	479 mm
DepthDiffers	889 mm	774.7 mm
HeightDiffers	177 mm	88 mm
Processor special featuresidentical
Embedded options availableKnown for one	No	Unknown — not stated by the source
Enhanced Intel SpeedStep TechnologyKnown for one	Yes	Unknown — not stated by the source
Execute Disable BitKnown for one	Yes	Unknown — not stated by the source
Idle StatesKnown for one	Yes	Unknown — not stated by the source
Intel 64Known for one	Yes	Unknown — not stated by the source
Intel Clear Video TechnologyKnown for one	No	Unknown — not stated by the source
Intel Demand Based SwitchingKnown for one	Yes	Unknown — not stated by the source
Intel Dual Display Capable TechnologyKnown for one	No	Unknown — not stated by the source
Intel Enhanced Halt StateKnown for one	Yes	Unknown — not stated by the source
Intel FDI TechnologyKnown for one	No	Unknown — not stated by the source
Intel Fast Memory AccessKnown for one	No	Unknown — not stated by the source
Intel Flex Memory AccessKnown for one	No	Unknown — not stated by the source
Intel Identity Protection Technology versionKnown for one	0.00	Unknown — not stated by the source
Intel Rapid Storage TechnologyKnown for one	No	Unknown — not stated by the source
Intel Secure Key Technology versionKnown for one	1.00	Unknown — not stated by the source
Intel TSX-NIKnown for one	No	Unknown — not stated by the source
Intel TSX-NI versionKnown for one	0.00	Unknown — not stated by the source
Intel Trusted Execution TechnologyKnown for one	Yes	Unknown — not stated by the source
Intel VT-x with Extended Page Tables (EPT)Known for one	Yes	Unknown — not stated by the source
Intel Virtualization Technology (VT-x)Known for one	Yes	Unknown — not stated by the source
Intel Virtualization Technology for Directed I/O (VT-d)Known for one	Yes	Unknown — not stated by the source
Intel® AES New Instructions (Intel® AES-NI)Known for one	Yes	Unknown — not stated by the source
Intel® Anti-Theft Technology (Intel® AT)Known for one	No	Unknown — not stated by the source
Intel® Clear Video HD Technology (Intel® CVT HD)Known for one	No	Unknown — not stated by the source
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Known for one	No	Unknown — not stated by the source
Intel® Hyper Threading Technology (Intel® HT Technology)Known for one	No	Unknown — not stated by the source
Intel® Identity Protection Technology (Intel® IPT)Known for one	No	Unknown — not stated by the source
Intel® InTru™ 3D TechnologyKnown for one	No	Unknown — not stated by the source
Intel® Insider™Known for one	No	Unknown — not stated by the source
Intel® My WiFi Technology (Intel® MWT)Known for one	No	Unknown — not stated by the source
Intel® OS GuardKnown for one	Yes	Unknown — not stated by the source
Intel® Quick Sync Video TechnologyKnown for one	No	Unknown — not stated by the source
Intel® Secure KeyKnown for one	Yes	Unknown — not stated by the source
Intel® Smart CacheKnown for one	Yes	Unknown — not stated by the source
Intel® Turbo Boost TechnologyKnown for one	No	Unknown — not stated by the source
Intel® Wireless Display (Intel® WiDi)Known for one	No	Unknown — not stated by the source
Maximum number of PCI Express lanesKnown for one	24	Unknown — not stated by the source
Number of QPI linksKnown for one	1	Unknown — not stated by the source
Physical Address Extension (PAE)Known for one	Yes	Unknown — not stated by the source
Thermal Monitoring TechnologiesKnown for one	Yes	Unknown — not stated by the source
Memory channels supported by processorKnown for one	Triple	Unknown — not stated by the source
Memory types supported by processorKnown for one	DDR3-SDRAM	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)	10 - 35 °C	10 - 35 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Other featuresidentical
Processor ARK IDKnown for one	75782	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
