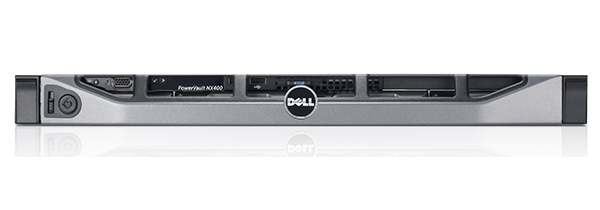

Dell PowerVault NX400 NAS Rack (1U) Intel® Xeon® E5 V2 Family E5-2403V2

4 GB DDR3 4 TB HDD Windows Storage Server 2012 R2 Black, Silver

Model NX400Part no. X400-9032EAN 5397063769032

108 specifications

Overview

Brand: Dell
Category: NAS & Storage Servers
Model: NX400
Part numbers: X400-9032, SVNX4002
EAN / UPC: 5397063769032
Also known as: DELL PowerVault NX400 NAS Rack (1U) Intel® Xeon® E5 V2 Family E5-2403V2 4 GB DDR3 4 TB HDD Windows Storage Server 2012 R2 Black, Silver

108 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	1 TB
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	12 TB
RAID support	Yes
RAID levels	0, 1, 5, 10, 50
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2403V2
Processor frequency	1.8 GHz
Processor boost frequency	1.8 GHz
Processor cores	4
Processor threads	4
Processor cache	10 MB
L3 cache	10 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor cache type	Smart Cache
Processor code	SR1AL
Processor codename	Ivy Bridge EN
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor socket	LGA 1356 (Socket B2)
Scalability	2S
Stepping	S1
System bus rate	6.4 GT/s
Tcase	76 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	384 GB
Memory bandwidth supported by processor (max)	32 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
iSCSI support	Yes
Supported network protocols	CIFS, NFS, FTP, SMB3.0, SMB, RDMA

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Fiber ports quantity	0
VGA (D-Sub) ports quantity	2
Serial ports quantity	1

Specification	Value
Operating system installed	Windows Storage Server 2012 R2
Operating system version	Workgroup

Specification	Value
Power supply unit (PSU) capacity	550 W
Redundant power supply (RPS) support	Yes
AC input voltage	100-240 V

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	24
Number of QPI links	1
Physical Address Extension (PAE)	Yes
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Triple
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-40 - 65 °C

Specification	Value
Processor ARK ID	75975
