Product comparison · 2 nas & storage servers

Dell PowerVault MD1420 Rack (2U) vs Dell PowerVault NX400 NAS Rack (1U) Intel® Xeon® E5 V2 Family E5-2403V2

Add a product
  • 21specifications compared
  • 13differ
  • 8identical
  • 89known for one product only

Key differences

  • Total installed storage capacity
    • 10.8 TB
    • 4 TB
  • Number of storage drives installed
    • 6
    • 4
  • Number of storage drives supported
    • 24
    • 4
  • Supported storage drive types
    • HDD & SSD
    • HDD
  • Storage drive size
    • 2.5"
    • 3.5"
  • HDD speed
    • 10000 RPM
    • 7200 RPM
  • RAID levels
    • 0, 1, 5, 6, 10, 50, 60
    • 0, 1, 5, 10, 50
  • Internal memory
    • 0 GB
    • 4 GB

Side by side

Differences highlightedShow differences only
110 specifications
A

Dell

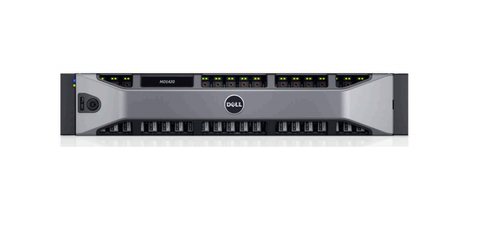

PowerVault MD1420 Rack (2U)

Model MD1420

View product
B

Dell

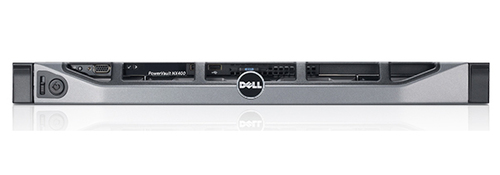

PowerVault NX400 NAS Rack (1U) Intel® Xeon® E5 V2 Family E5-2403V2

Model NX400

View product
Storage7 differ
Storage drives installedYesYes
Total installed storage capacityDiffers10.8 TB4 TB
Number of storage drives installedDiffers64
Number of storage drives supportedDiffers244
Installed storage drive typeHDDHDD
Supported storage drive typesDiffersHDD & SSDHDD
Storage drive capacityKnown for one1 TB
Storage drive sizeDiffers2.5"3.5"
HDD speedDiffers10000 RPM7200 RPM
Maximum supported storage capacityKnown for one12 TB
RAID supportYesYes
RAID levelsDiffers0, 1, 5, 6, 10, 50, 600, 1, 5, 10, 50
Hot-swap drive baysYesYes
Processoridentical
Processor manufacturerKnown for oneIntel
Processor familyKnown for oneIntel® Xeon® E5 V2 Family
Processor modelKnown for oneE5-2403V2
Processor frequencyKnown for one1.8 GHz
Processor boost frequencyKnown for one1.8 GHz
Processor coresKnown for one4
Processor threadsKnown for one4
Processor cacheKnown for one10 MB
L3 cacheKnown for one10 MB
Bus typeKnown for oneQPI
CPU configuration (max)Known for one2
ECC supported by processorKnown for oneYes
PCI Express slots versionKnown for one3.0
Physical Address Extension (PAE)Known for one46 bit
Processor cache typeKnown for oneSmart Cache
Processor codeKnown for oneSR1AL
Processor codenameKnown for oneIvy Bridge EN
Processor lithographyKnown for one22 nm
Processor operating modesKnown for one64-bit
Processor package sizeKnown for one45 x 42.5 mm
Processor socketKnown for oneLGA 1356 (Socket B2)
ScalabilityKnown for one2S
SteppingKnown for oneS1
System bus rateKnown for one6.4 GT/s
TcaseKnown for one76 °C
Thermal Design Power (TDP)Known for one80 W
Maximum internal memory supported by processorKnown for one384 GB
Memory bandwidth supported by processor (max)Known for one32 GB/s
Conflict-Free processorKnown for oneNo
Memory1 differ
Internal memoryDiffers0 GB4 GB
Internal memory typeKnown for oneDDR3
Memory clock speedKnown for one1600 MHz
Maximum RAM supportedKnown for one96 GB
Memory slotsKnown for one6
Networkidentical
Ethernet LANKnown for oneYes
Ethernet LAN data ratesKnown for one10,100,1000 Mbit/s
Wi-FiNoNo
DHCP clientKnown for oneYes
DHCP serverKnown for oneYes
iSCSI supportKnown for oneYes
Supported network protocolsKnown for oneCIFS, NFS, FTP, SMB3.0, SMB, RDMA
Ports & interfacesidentical
Ethernet LAN (RJ-45) portsKnown for one2
USB 2.0 ports quantityKnown for one4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityKnown for one0
Fiber ports quantity00
VGA (D-Sub) ports quantityKnown for one2
Serial ports quantityKnown for one1
USB portKnown for oneNo
Design2 differ
Chassis typeDiffersRack (2U)Rack (1U)
Product colourDiffersSilverBlack, Silver
LED indicatorsKnown for oneYes
Performanceidentical
TypeKnown for oneNAS
Built-in optical driveKnown for oneYes
Optical drive typeKnown for oneDVD-RW
Softwareidentical
Operating system installedKnown for oneWindows Storage Server 2012 R2
Operating system versionKnown for oneWorkgroup
Power1 differ
Power supply unit (PSU) capacityDiffers600 W550 W
Redundant power supply (RPS) supportYesYes
AC input voltageKnown for one100-240 V
Weight & dimensions2 differ
Width482 mm482 mm
DepthDiffers541 mm607 mm
HeightDiffers87 mm42.8 mm
WeightKnown for one19.3 kg
Processor special featuresidentical
Embedded options availableKnown for oneNo
Enhanced Intel SpeedStep TechnologyKnown for oneYes
Execute Disable BitKnown for oneYes
Idle StatesKnown for oneYes
Intel 64Known for oneYes
Intel Demand Based SwitchingKnown for oneYes
Intel Enhanced Halt StateKnown for oneYes
Intel Flex Memory AccessKnown for oneNo
Intel Identity Protection Technology versionKnown for one0.00
Intel Secure Key Technology versionKnown for one1.00
Intel TSX-NIKnown for oneNo
Intel TSX-NI versionKnown for one0.00
Intel Trusted Execution TechnologyKnown for oneYes
Intel VT-x with Extended Page Tables (EPT)Known for oneYes
Intel Virtualization Technology (VT-x)Known for oneYes
Intel Virtualization Technology for Directed I/O (VT-d)Known for oneYes
Intel® AES New Instructions (Intel® AES-NI)Known for oneYes
Intel® Hyper Threading Technology (Intel® HT Technology)Known for oneNo
Intel® Identity Protection Technology (Intel® IPT)Known for oneNo
Intel® OS GuardKnown for oneYes
Intel® Secure KeyKnown for oneYes
Intel® Smart CacheKnown for oneYes
Intel® Turbo Boost TechnologyKnown for oneNo
Maximum number of PCI Express lanesKnown for one24
Number of QPI linksKnown for one1
Physical Address Extension (PAE)Known for oneYes
Thermal Monitoring TechnologiesKnown for oneYes
Memory channels supported by processorKnown for oneTriple
Memory types supported by processorKnown for oneDDR3-SDRAM
Operational conditionsidentical
Operating temperature (T-T)Known for one10 - 35 °C
Operating relative humidity (H-H)Known for one10 - 80%
Storage temperature (T-T)Known for one-40 - 65 °C
Other featuresidentical
Processor ARK IDKnown for one75975
Dell E-Value CodeKnown for onePVMD142011T

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
