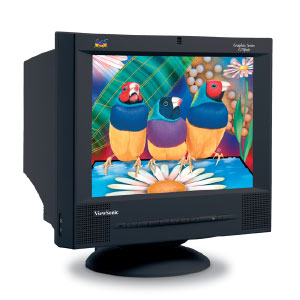

17IN 25MM 70HZ
Model 17IN 25MM 70HZPart no. G70FMB
23 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight16.7 kg
- Mounting interfacePlug & Play
- Power consumption (typical)90 W
- Operating relative humidity (H-H)5 - 95%
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 16.7 kg
- Mounting interface
- Plug & Play
- Power consumption (typical)
- 90 W
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Viewsonic
- Category
- Monitors CRT
- Model
- 17IN 25MM 70HZ
- Part number
- G70FMB
- Also known as
- Viewsonic 17IN 25MM 70HZ monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
23 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | 17" (16.0" viewable), 90° deflection |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 23 cm |
| Viewable size, horizontal | 31 cm |
| Vertical scan range | 50 - 150 Hz |
| Horizontal scan range | 30 - 70 kHz |
| Pixel pitch | 0.25 x 0.21 mm |
| Surface treatment | Tint (TM = 50%), ARAG screen treatment |
Features
| Specification | Value |
|---|---|
| Audio system | 3W (x2) @ 1KHz, THD100-20KHz, Bezel-integrated high-fidelity speakers and microphone |
| Certification | TCO '99, Tܖ/GS, Tܖ/Ergo, CE, ISO9241-3, ISO9241-7, ISO9241-8, Nordics, GOST-R, PCBC, Energy2000, ENERGY STAR, MPR-II, CB, UL, FCC-B, CSA, ICES-003, NOM, Tܖ-S, SASO |
| Mounting interface | Plug & Play |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Video In 15-pin mini D-Sub (attached) Audio In 3.5mm pin mini jack (stereo) Mic In/Out 3.5mm pin mini jack (mono/auxillary) Headphone Out 3.5mm pin mini jack (stereo) Power 3-pin plug (IEC22) |
Power
| Specification | Value |
|---|---|
| Power management | ENERGY STAR, VESA DPMS, TCO '99 and Energy 2000 |
| Power consumption (typical) | 90 W |
| Power source | AC 100-240V, 50-60Hz (auto switch) |
Management features
| Specification | Value |
|---|---|
| User controls | Basic - Power on/off, Menu, down, up, Select, Mute, Volume. OSD Contrast, Brighness, Zoom, H/V Position, H/V Size, Pincushion, Pin-Balance, Trapezoid, Rotation, H/V Moire, Degauss, ViewMatch Colour, ViewMeter, OSD Language, OSD Position, OSD Lock, Recall |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 412 x 412 x 435 mm |
| Weight | 16.7 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible products | PC and Mac compatible |
| Mac compatibility | Yes |
