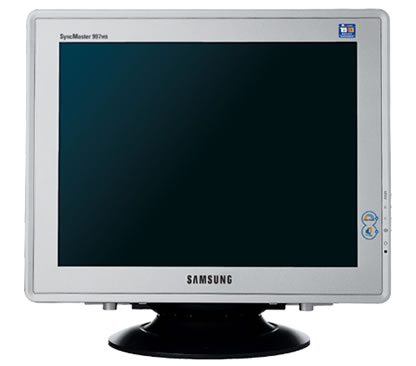

SyncMaster 997MB
Model SyncMaster 997MBPart no. LH19ISBBSEAN 8808979443802
24 specifications
- Display48.3 cm (19")
- Resolution1920 x 1440 pixels
- TypeDyna Flat
- Weight18.2 kg
- Plug and PlayYes
- I/O ports15-pin D-Sub, 5 BNC
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1920 x 1440 pixels
- Type
- Dyna Flat
- Weight
- 18.2 kg
- Plug and Play
- Yes
- I/O ports
- 15-pin D-Sub, 5 BNC
- Brand
- Samsung
- Category
- Monitors CRT
- Model
- SyncMaster 997MB
- Part number
- LH19ISBBS
- EAN / UPC
- 8808979443802
- Also known as
- Samsung SyncMaster 997MB monitor CRT 1920 x 1440 pixels 48.3 cm (19")
Specifications
24 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | Dyna Flat |
| Display resolution | 1920 x 1440 pixels |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 96 kHz |
| Monitor sync input signal | Separate H/V, Composite |
| Maximum resolution | 1920 x 1440 pixels |
| Pixel pitch | 0.20 |
| Surface treatment | Multi-Layer Coating |
| Recommended resolution | 1280x1024 @85Hz; 1600x1200 @75Hz |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TCO'03 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 15-pin D-Sub, 5 BNC |
Power
| Specification | Value |
|---|---|
| Power management | EPA/VESA DPMS |
| Power consumption (typical) | 100 W |
| Power consumption (standby) | 2 W |
| Power requirements | AC 90-264VAC, 50/60Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 445 x 457.5 x 416 mm |
| Weight | 18.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 557 x 607 x 507 mm |
| Package weight | 21.5 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/ME/XP |
Technical details
| Specification | Value |
|---|---|
| Special features | MagicBright Highlight Zone III |
| Video Dot Rate | 250 MHz |
