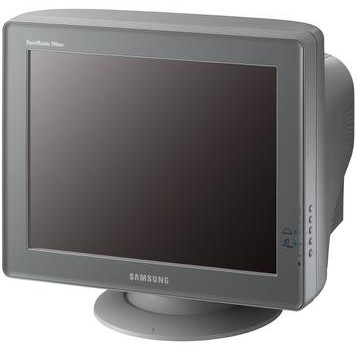

SyncMaster 796MB
Model SyncMaster 796MBPart no. KS17CNJBH
28 specifications
- Display43.2 cm (17")
- Resolution1600 x 1200 pixels
- TypeDynaFlat
- Weight13.8 kg
- Plug and PlayYes
- I/O ports1x D-sub 15-pin
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1600 x 1200 pixels
- Type
- DynaFlat
- Weight
- 13.8 kg
- Plug and Play
- Yes
- I/O ports
- 1x D-sub 15-pin
- Brand
- Samsung
- Category
- Monitors CRT
- Model
- SyncMaster 796MB
- Part number
- KS17CNJBH
- Also known as
- Samsung SyncMaster 796MB monitor CRT 1600 x 1200 pixels 43.2 cm (17")
Specifications
28 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | DynaFlat |
| Display resolution | 1600 x 1200 pixels |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 85 kHz |
| Monitor sync input signal | Separate H/V |
| Display viewable area (HxV) | 325 x 244 mm |
| Pixel pitch | 0.2 |
| Surface treatment | Multi-Layer Coating |
| Display resolution at frequency | 1600x1200 @68Hz, 1280x1024 @65Hz, 1152x864 @77Hz, 1024x768 @86Hz, 800x600 @109Hz, 640x480@134Hz |
| Recommended resolution | 1024x768@85Hz; 1280x1024 @75Hz |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TUV GS, MPR II, TCO'03 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1x D-sub 15-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 73 W |
| Power consumption (standby) | 1 W |
| Power requirements | AC 90 - 264V, 50/60Hz |
Management features
| Specification | Value |
|---|---|
| User controls | OSD |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 414 mm |
| Height | 378 mm |
| Weight | 13.8 kg |
| Width | 401 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 464 x 518 x 59 mm |
| Package weight | 16.9 kg |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | FCC, CE, VCCI, C-tick, BSMI, Mic, ICES |
| Safety | UL, CSA, TUV, CB, NEMKO, Korea EK, CCIB, PSB, NOM, GOST, CDRH, IRAM |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/2000/ME/XP/XP x64 |
Technical details
| Specification | Value |
|---|---|
| Special features | MagicBright 2 Highlight Zone III |
