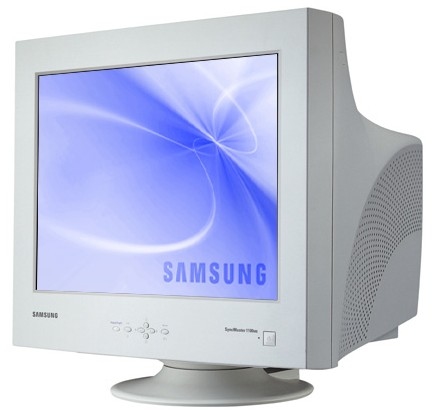

SyncMaster 1100MB
Model SyncMaster 1100MBPart no. LU21GSBBEAN 8808979794430
26 specifications
- Display53.3 cm (21")
- Resolution2048 x 1536 pixels
- Weight26.1 kg
- Plug and PlayYes
- I/O ports1x D-Sub 15-pin 5x BNC
- Power managementEPA/Energy2000/VESA DPMS
Overview
- Display
- 53.3 cm (21")
- Resolution
- 2048 x 1536 pixels
- Weight
- 26.1 kg
- Plug and Play
- Yes
- I/O ports
- 1x D-Sub 15-pin 5x BNC
- Power management
- EPA/Energy2000/VESA DPMS
- Brand
- Samsung
- Category
- Monitors CRT
- Model
- SyncMaster 1100MB
- Part numbers
- LU21GSBB, KS21CNIBH
- EAN / UPC
- 8808979794430
- Also known as
- Samsung SyncMaster 1100MB monitor CRT 2048 x 1536 pixels 53.3 cm (21")
Specifications
26 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 53.3 cm (21") |
| Display resolution | 2048 x 1536 pixels |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 130 kHz |
| Maximum resolution | 2048 x 1536 pixels |
| Display viewable area (HxV) | 393 x 295 mm |
| Pixel pitch | 0.20 |
| Surface treatment | Multi-Layer Coating |
| Recommended resolution | 1280x1024 @118Hz; 1600x1200 @102Hz |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TCO'99 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1x D-Sub 15-pin 5x BNC |
Power
| Specification | Value |
|---|---|
| Power management | EPA/Energy2000/VESA DPMS |
| Power consumption (typical) | 130 W |
| Power consumption (standby) | 2 W |
| Power requirements | 100 - 240V, 50/60Hz |
Management features
| Specification | Value |
|---|---|
| User controls | OSD |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 508 mm |
| Height | 492 mm |
| Weight | 26.1 kg |
| Width | 504 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 634 x 642 x 625 mm |
| Package weight | 30.5 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/2000/ME/XP |
Technical details
| Specification | Value |
|---|---|
| Special features | MagicBright Highlight Zone |
| Video Dot Rate | 360 MHz |
