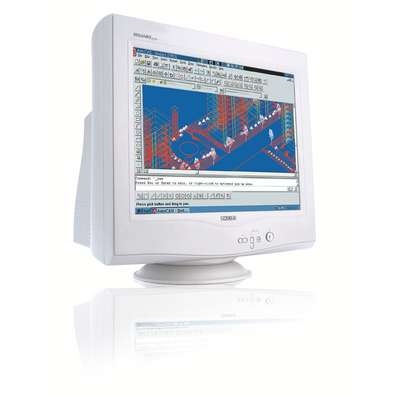

22" Real Flat QXGA CRT
Model 22" Real Flat QXGA CRTPart no. 202P70/00EAN 8710895891707
24 specifications
- Display55.9 cm (22")
- Resolution1024 x 768 pixels
- TypeCRT
- Weight26.3 kg
- Swivel angle range90 - 90°
- Power consumption (typical)215 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1024 x 768 pixels
- Type
- CRT
- Weight
- 26.3 kg
- Swivel angle range
- 90 - 90°
- Power consumption (typical)
- 215 W
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 22" Real Flat QXGA CRT
- Part number
- 202P70/00
- EAN / UPC
- 8710895891707
- Also known as
- Philips 22" Real Flat QXGA CRT monitor CRT 1024 x 768 pixels 55.9 cm (22")
Specifications
24 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Type | CRT |
| Display resolution | 1024 x 768 pixels |
| Viewable size, vertical | 29.4 cm |
| Viewable size, horizontal | 39.2 cm |
| Viewable size diagonal | 5.5 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 130 kHz |
| Maximum resolution | 2048 x 1536 pixels |
| Pixel pitch | 0.25 |
| Recommended resolution | 1600 x 1200 |
Features
| Specification | Value |
|---|---|
| Swivel angle range | 90 - 90° |
| Plug and Play | Yes |
| Tilt angle range | -5 - 25° |
| Certification | CE Mark, E2000, FCC-B, UL, CSA, FDA, NUTEK, Energy Star, SEMKO, TCO '03, TÜV/GS, TÜV Ergo |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 215 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 466 mm |
| Height | 501 mm |
| Weight | 26.3 kg |
| Width | 501 mm |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP |
