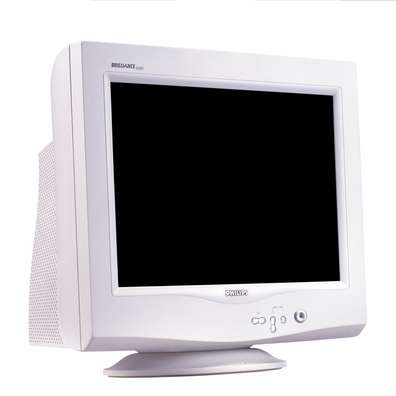

Philips 19" Real Flat Monitor
Model 19" Real Flat MonitorPart no. 109P40/20
24 specifications
- Display48.3 cm (19")
- TypeCRT
- Weight23.5 kg
- ErgonomicsTÜV/GS, TÜV/Ergo
- I/O ports1x D-sub 5x BNC
- Power requirements90 - 264V, 50/60Hz
Overview
- Display
- 48.3 cm (19")
- Type
- CRT
- Weight
- 23.5 kg
- Ergonomics
- TÜV/GS, TÜV/Ergo
- I/O ports
- 1x D-sub 5x BNC
- Power requirements
- 90 - 264V, 50/60Hz
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 19" Real Flat Monitor
- Part numbers
- 109P40/20, 109P40/00, 109P40/40
- Also known as
- Philips 19" Real Flat Monitor monitor CRT 48.3 cm (19")
Specifications
24 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | CRT |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 111 kHz |
| Maximum resolution | 1920 x 1440 pixels |
| Display viewable area (HxV) | 365 x 274 mm |
| Pixel pitch | 0.24 |
| Recommended resolution | 1280x1024 |
Features
| Specification | Value |
|---|---|
| Ergonomics | TÜV/GS, TÜV/Ergo |
| Plug and Play | Yes |
| Certification | MPR-II, TCO’03 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1x D-sub 5x BNC |
Power
| Specification | Value |
|---|---|
| Power requirements | 90 - 264V, 50/60Hz |
| Monitor typical power consumption | 120 W |
Management features
| Specification | Value |
|---|---|
| User controls | OSD |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 456 x 438 x 419 mm |
| Weight | 23.5 kg |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic emissions | FCC-B, UL, CSA, DHHS |
System requirements
| Specification | Value |
|---|---|
| Compliance industry standards | SEMKO, Poland-B, C-Tick, VCC-I, CE, BSMI, PSB |
| Mac compatibility | No |
Technical details
| Specification | Value |
|---|---|
| Monitor max. video input bandwidth | 290 MHz |
