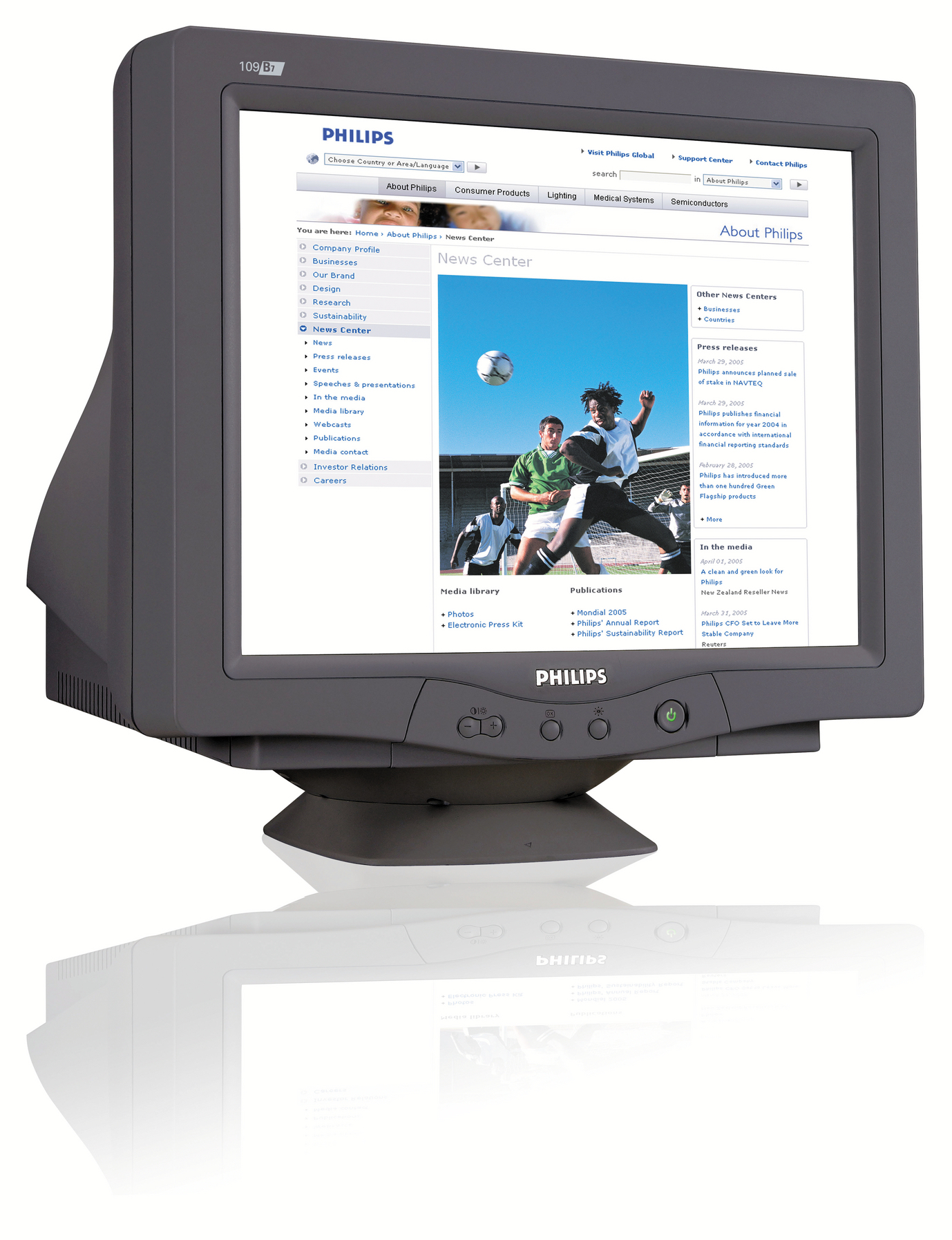

Philips 109B75 19" real flat SXGA CRT monitor

Philips 109B75 19" real flat SXGA CRT monitor

Model 109B75 19" real flat SXGA CRT monitorPart no. 109B75/73

29 specifications

Maximum resolution1600 x 1200 pixels
Tilt angle range-5 - 25°
Storage temperature (T-T)-25 - 65 °C
Depth457 mm
Video Dot Rate180 MHz

See all specifications

Overview

Maximum resolution: 1600 x 1200 pixels
Tilt angle range: -5 - 25°
Storage temperature (T-T): -25 - 65 °C
Depth: 457 mm
Video Dot Rate: 180 MHz

Brand: Philips
Category: Monitors CRT
Model: 109B75 19" real flat SXGA CRT monitor
Part number: 109B75/73
Also known as: Philips 109B75 19" real flat SXGA CRT monitor

Specifications

29 specifications in 7 groups

Display

Specification	Value
Maximum resolution	1600 x 1200 pixels
Digital horizontal frequency	30 - 92 kHz
Digital vertical frequency	50 - 160 Hz
Display dot pitch (horizontal)	0.21 mm
Display recommended refresh rate	85 Hz
Display sRGB	Yes
Recommended display area(inch)	35.6 cm (14")
Sync input impedance	2200 Ω
Video input impedance	75 Ω

Features

Specification	Value
Tilt angle range	-5 - 25°

Operational conditions

Specification	Value
Storage temperature (T-T)	-25 - 65 °C
Operating temperature (T-T)	0 - 35 °C

Weight & dimensions

Specification	Value
Depth	457 mm
Height	422.5 mm
Set weight (lb)	20 kg (44 lbs)
Set depth (inch)	45.7 cm (18")
Set height (inch)	42.2 cm (16.6")
Set weight	20 kg
Set width	43.9 cm
Set width (inch)	43.9 cm (17.3")

Packaging data

Specification	Value
Package depth	534 mm
Package height	434 mm
Package weight	22.9 kg
Package width	494 mm
Box depth (imperial)	53.4 cm (21")
Box height (imperial)	43.4 cm (17.1")
Box width (imperial)	49.4 cm (19.4")

Packaging content

Specification	Value
Manual	Yes

Technical details

Specification	Value
Video Dot Rate	180 MHz
