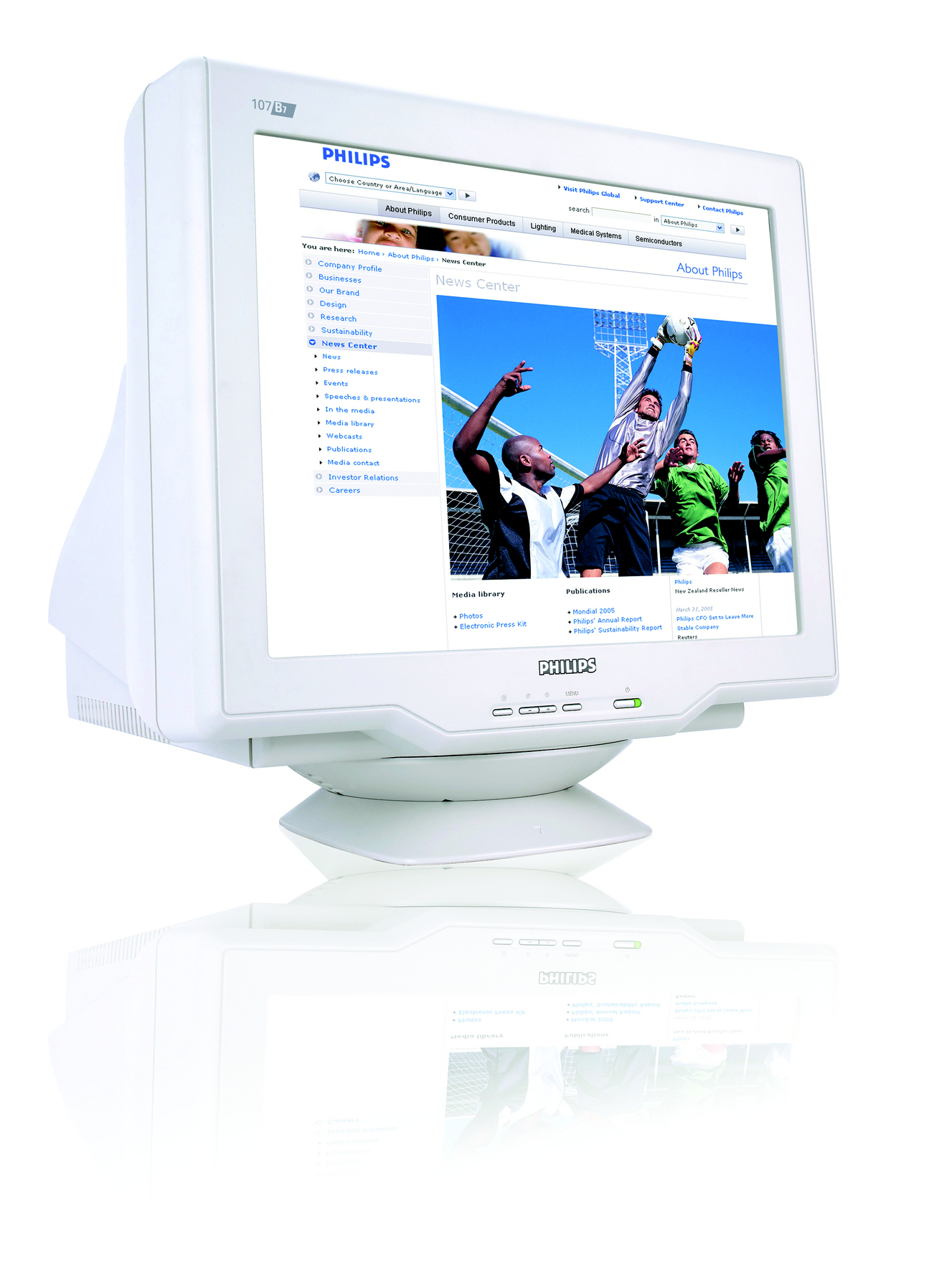

Philips CRT monitor 107B70/00

Philips CRT monitor 107B70/00

Model 107B70/00

36 specifications

Weight13.5 kg
Maximum resolution1600 x 1200 pixels
Tilt angle range-5 - 13°
Power consumption (typical)62 W
Storage temperature (T-T)-25 - 65 °C
Depth423.5 mm

See all specifications

Overview

Weight: 13.5 kg
Maximum resolution: 1600 x 1200 pixels
Tilt angle range: -5 - 13°
Power consumption (typical): 62 W
Storage temperature (T-T): -25 - 65 °C
Depth: 423.5 mm

Brand: Philips
Category: Monitors CRT
Model: 107B70/00
Part number: 107B70/00
Also known as: Philips CRT monitor 107B70/00

Specifications

36 specifications in 8 groups

Display

Specification	Value
Maximum resolution	1600 x 1200 pixels
Digital horizontal frequency	30 - 86 kHz
Digital vertical frequency	50 - 160 Hz
Display dot pitch (horizontal)	0.21 mm
Display recommended refresh rate	75 Hz
Display sRGB	Yes
Recommended display area(inch)	30.5 cm (12")
Sync input impedance	2200 Ω
Video input impedance	75 Ω

Features

Specification	Value
Tilt angle range	-5 - 13°

Power

Specification	Value
Power consumption (typical)	62 W

Operational conditions

Specification	Value
Storage temperature (T-T)	-25 - 65 °C
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Depth	423.5 mm
Height	428 mm
Set weight (lb)	13.5 kg (29.7 lbs)
Weight	13.5 kg
Width	397 mm
Set depth (inch)	42.4 cm (16.7")
Set height (inch)	42.9 cm (16.9")
Set weight	13.5 kg
Set width	39.7 cm
Set width (inch)	39.6 cm (15.6")

Packaging data

Specification	Value
Package depth	475 mm
Package height	420 mm
Package weight	15.4 kg
Package width	446 mm
Box depth (imperial)	47.5 cm (18.7")
Box height (imperial)	41.9 cm (16.5")
Box width (imperial)	44.7 cm (17.6")

Packaging content

Specification	Value
Manual	Yes

Technical details

Specification	Value
Dot clock scanning frequency	180 MHz
Resolution	1600 x 1200 pixels
Video Dot Rate	180 MHz
Box dimensions (W x D x H)	446 x 475 x 420 mm
Dimensions (W x D x H) (imperial)	396.2 x 424.2 x 429.3 mm (15.6 x 16.7 x 16.9")
