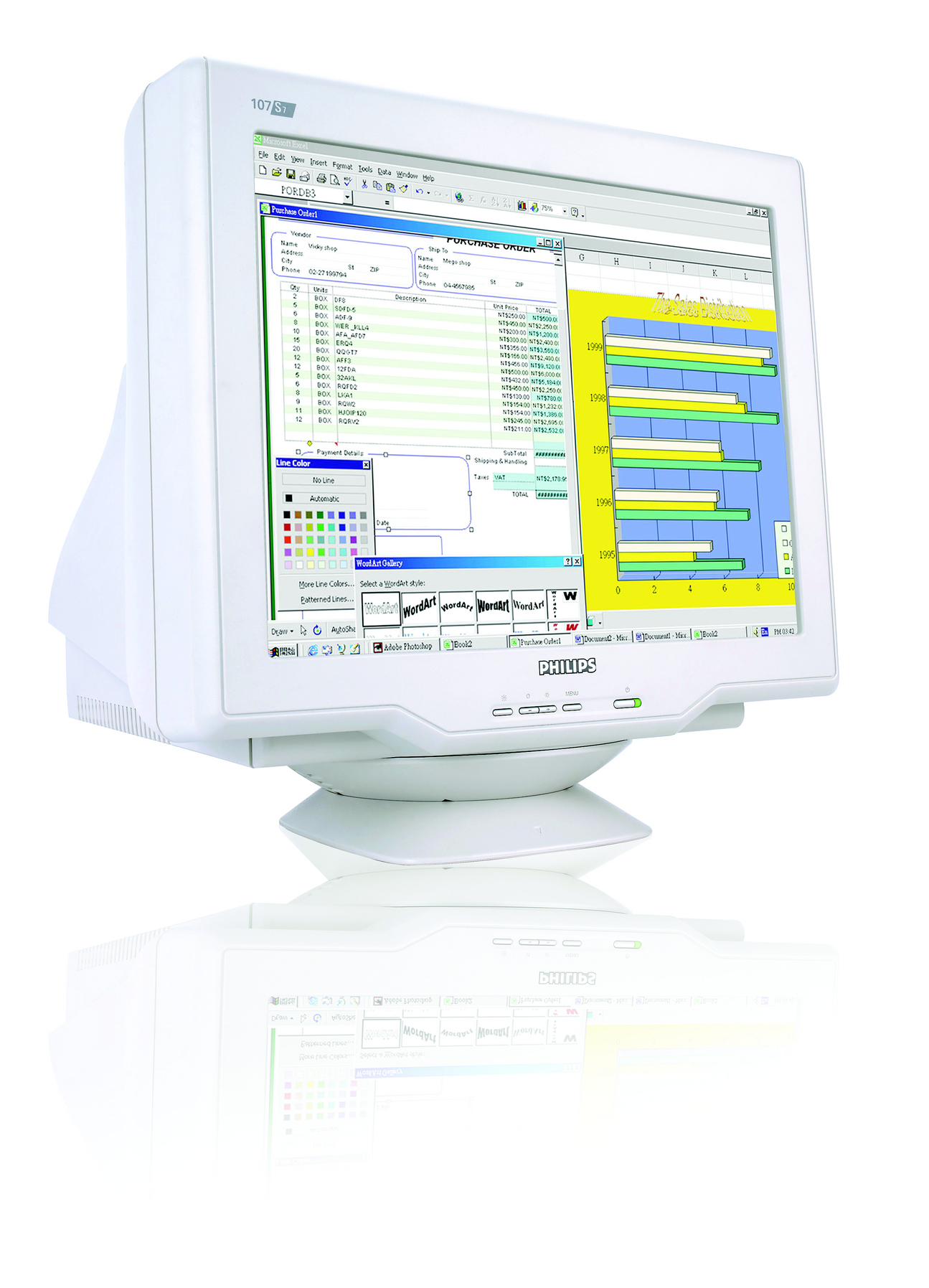

Philips 107S77 17" real flat XGA CRT monitor

Philips 107S77 17" real flat XGA CRT monitor

Model 107S77 17" real flat XGA CRT monitorPart no. 107S77/00

29 specifications

Maximum resolution1280 x 1024 pixels
Tilt angle range-5 - 13°
Power consumption (typical)62 W
Storage temperature (T-T)-25 - 65 °C
Depth423.5 mm
Video Dot Rate110 MHz

See all specifications

Overview

Maximum resolution: 1280 x 1024 pixels
Tilt angle range: -5 - 13°
Power consumption (typical): 62 W
Storage temperature (T-T): -25 - 65 °C
Depth: 423.5 mm
Video Dot Rate: 110 MHz

Brand: Philips
Category: Monitors CRT
Model: 107S77 17" real flat XGA CRT monitor
Part number: 107S77/00
Also known as: Philips 107S77 17" real flat XGA CRT monitor

Specifications

29 specifications in 7 groups

Display

Specification	Value
Maximum resolution	1280 x 1024 pixels
Digital horizontal frequency	30 - 71 kHz
Digital vertical frequency	50 - 160 Hz
Display dot pitch (horizontal)	0.21 mm
Display recommended refresh rate	85 Hz
Display sRGB	Yes
Recommended display area(inch)	30.5 cm (12")
Sync input impedance	2200 Ω
Video input impedance	75 Ω

Features

Specification	Value
Tilt angle range	-5 - 13°

Power

Specification	Value
Power consumption (typical)	62 W

Operational conditions

Specification	Value
Storage temperature (T-T)	-25 - 65 °C
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Depth	423.5 mm
Height	382 mm
Set weight (lb)	13.5 kg (29.7 lbs)
Set depth (inch)	42.4 cm (16.7")
Set height (inch)	38.1 cm (15")
Set weight	13.5 kg
Set width	39.7 cm
Set width (inch)	39.6 cm (15.6")

Packaging data

Specification	Value
Package depth	475 mm
Package height	420 mm
Package weight	15.4 kg
Package width	446 mm
Box depth (imperial)	47.5 cm (18.7")
Box height (imperial)	41.9 cm (16.5")
Box width (imperial)	44.7 cm (17.6")

Technical details

Specification	Value
Video Dot Rate	110 MHz
