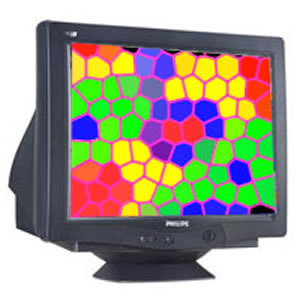

107E56/00 monitor CRT
1024 x 768 pixels 43.2 cm (17")
Model 107E56/00
15 specifications
- Display43.2 cm (17")
- Resolution1024 x 768 pixels
- Weight14 kg
- Display tilt and swivel range90
- Monitor maximum power consumption75 W
- Operating relative humidity (H-H)5 - 95%
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1024 x 768 pixels
- Weight
- 14 kg
- Display tilt and swivel range
- 90
- Monitor maximum power consumption
- 75 W
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 107E56/00
- Part number
- 107E56/00
- Also known as
- Philips 107E56/00 monitor CRT 1024 x 768 pixels 43.2 cm (17")
Specifications
15 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | CRT . Shadow mask, flat square, high contrast |
| Display resolution | 1024 x 768 pixels |
| Viewable size, vertical | 41 cm |
| Viewable size, horizontal | 30.6 cm |
| Viewable size diagonal | 23 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 70 kHz |
Features
| Specification | Value |
|---|---|
| Display tilt and swivel range | 90 |
Power
| Specification | Value |
|---|---|
| Monitor maximum power consumption | 75 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 419 x 383 x 397 mm |
| Weight | 14 kg |
Technical details
| Specification | Value |
|---|---|
| Monitor max. video input bandwidth | 108 MHz |
