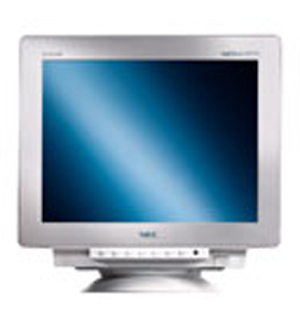

MultiSync® FE770
Model MultiSync® FE770Part no. 60001287
20 specifications
- Display43.2 cm (17")
- Resolution1024 x 768 pixels
- TypeClearFlat shadow mask CRT
- Weight16 kg
- Plug and PlayYes
- I/O portsMini D-sub; 15 pin (1.8 m)
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1024 x 768 pixels
- Type
- ClearFlat shadow mask CRT
- Weight
- 16 kg
- Plug and Play
- Yes
- I/O ports
- Mini D-sub; 15 pin (1.8 m)
- Brand
- NEC
- Category
- Monitors CRT
- Model
- MultiSync® FE770
- Part number
- 60001287
- Also known as
- NEC MultiSync® FE770 monitor CRT 1024 x 768 pixels 43.2 cm (17")
Specifications
20 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | ClearFlat shadow mask CRT |
| Display resolution | 1024 x 768 pixels |
| Viewable size, vertical | 24.4 cm |
| Viewable size, horizontal | 32.5 cm |
| Viewable size diagonal | 40.6 cm |
| Vertical scan range | 50 - 120 Hz |
| Maximum resolution | 1280 x 1024 pixels |
| Pixel pitch | 0.25 |
| Recommended resolution | 1024 x 768, 85 Hz |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | CE; TÜV-GS; MPR-III; FCC Class B; UL/C-UL; Ctick; PCBC; GOST; PSB; TCO 99; ISO 9241-3/-7/-8; Energy Star |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Mini D-sub; 15 pin (1.8 m) |
Power
| Specification | Value |
|---|---|
| Power management | VESA/EPA |
| Power consumption (typical) | 65 W |
| Power consumption (standby) | 5 W |
| Power requirements | 100–240 V; 50/60 Hz; 1.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 397 x 415 x 392 mm |
| Weight | 16 kg |
Technical details
| Specification | Value |
|---|---|
| Technical features | - OptiClear coating. |
Similar products
All monitors crt

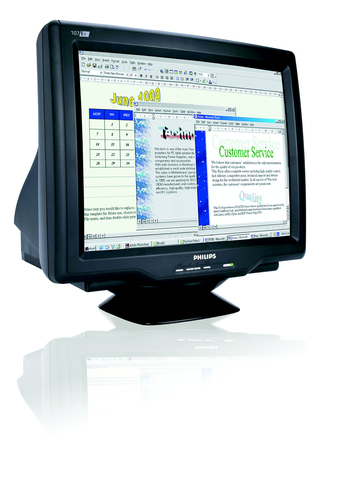

Philips
CRT monitor 107S76/00
Model 107S76/00
- Display
- 43.2 cm (17")
- Weight
- 13.5 kg
- Swivel angle range
- 90 - 90°

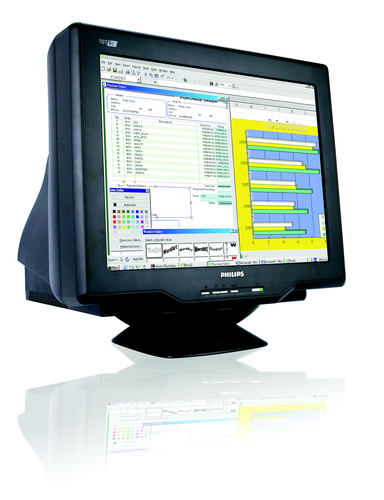

Philips
CRT monitor 107S71/00
Model 107S71/00
- Display
- 43.2 cm (17")
- Weight
- 13.5 kg
- Swivel angle range
- 90 - 90°

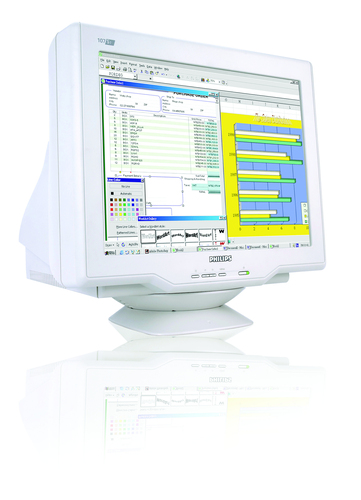

Philips
CRT monitor 107E76/00
Model 107E76/00
- Display
- 43.2 cm (17")
- Weight
- 12.5 kg
- Swivel angle range
- 90 - 90°

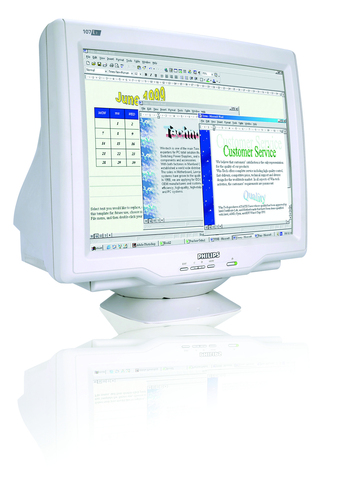

Philips
CRT monitor 107E71/00
Model 107E71/00
- Display
- 43.2 cm (17")
- Weight
- 12.5 kg
- Swivel angle range
- 90 - 90°
Philips
107S96/93 monitor CRT
Model 107S96/93
- Display
- 43.2 cm (17")
- Weight
- 13.5 kg
- Swivel angle range
- -90 - 90°

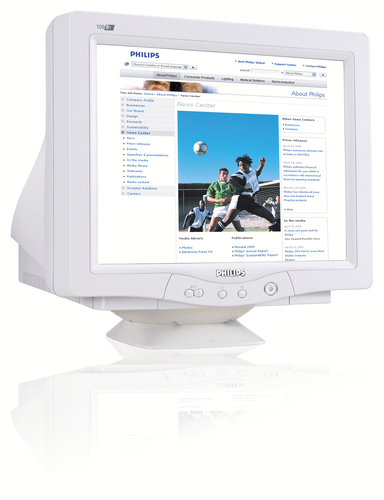

Philips
