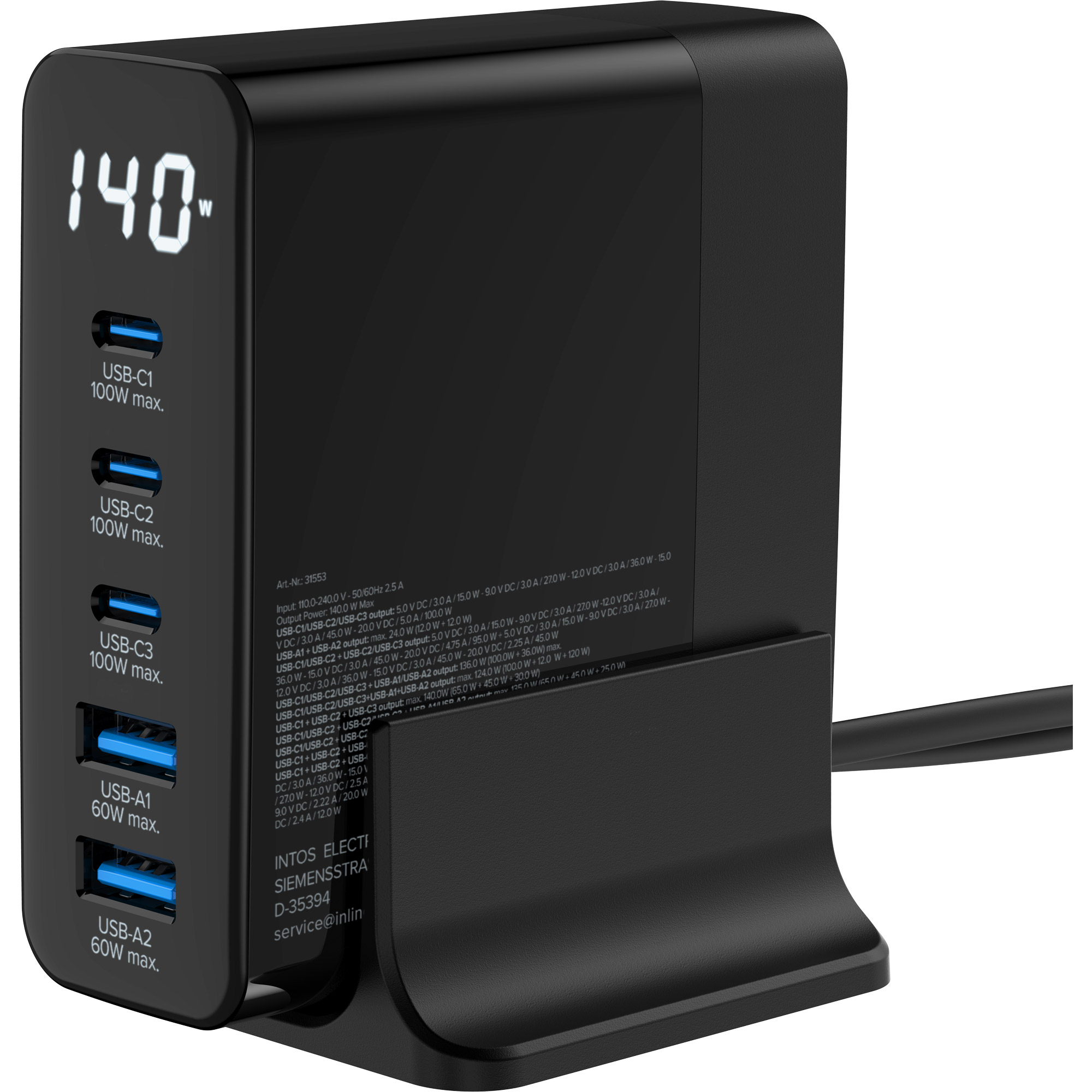

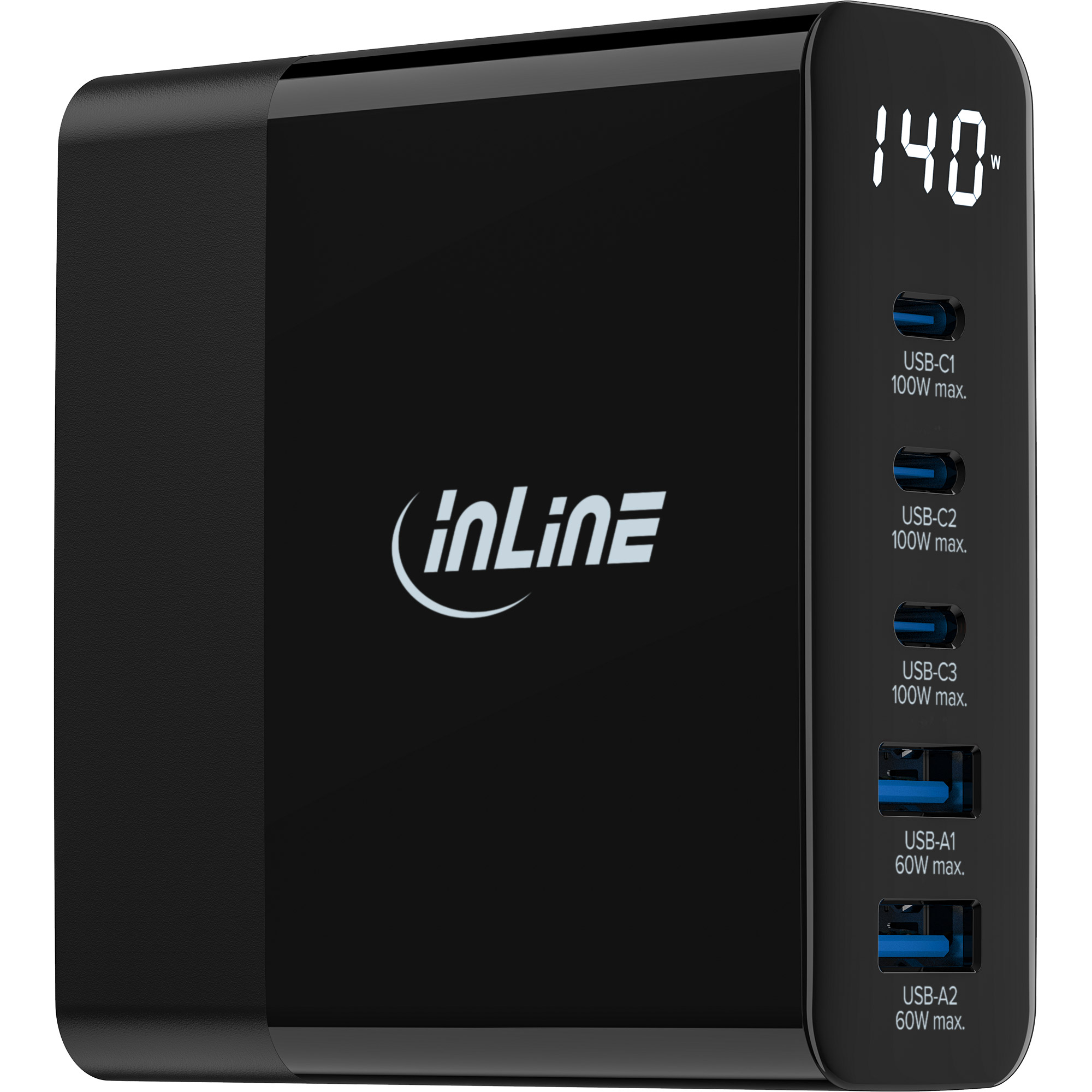

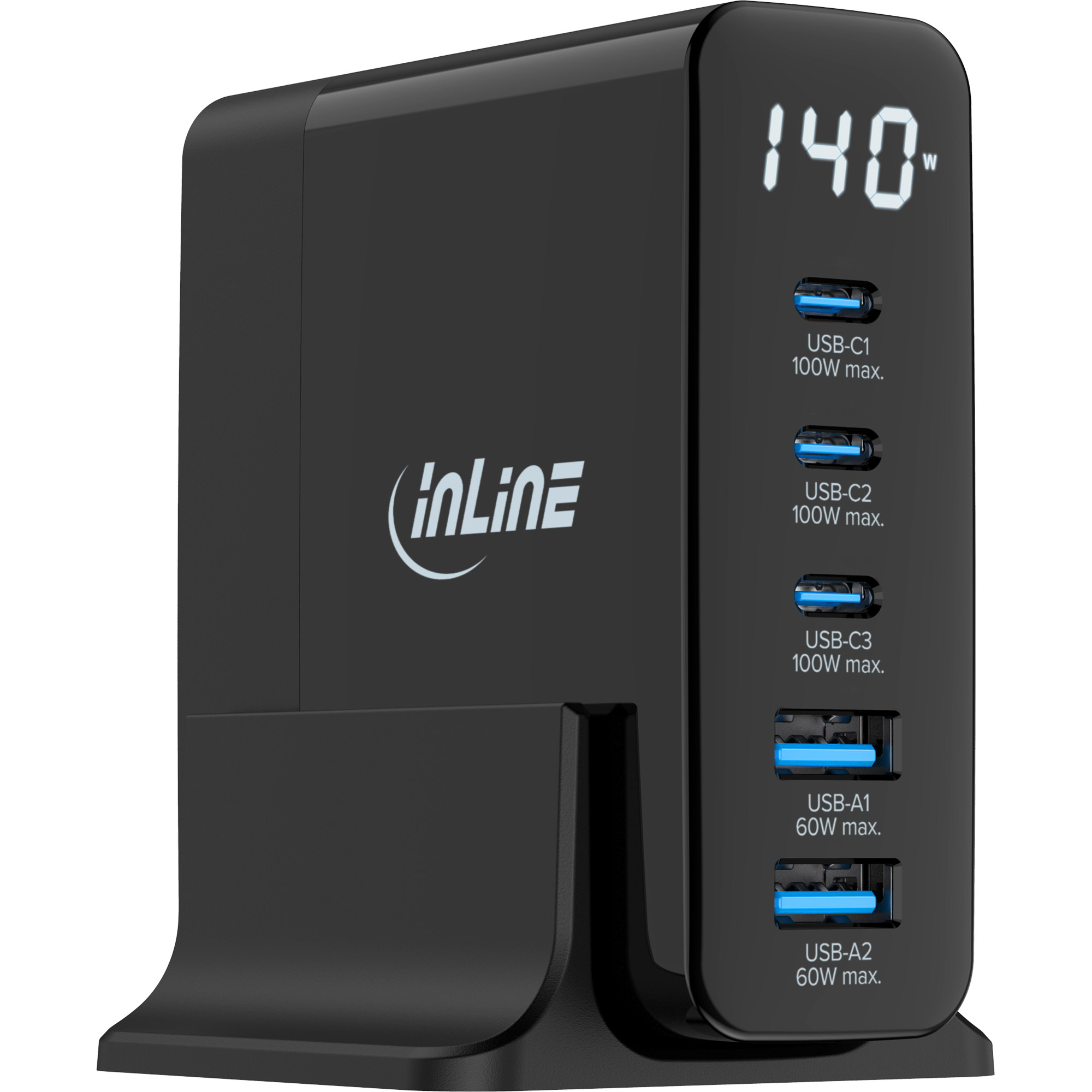

USB PD power supply, GaN charger, 5-port, USB-C + USB-A
140W, w/display
Model 31553EAN 4043718334186
51 specifications
- Power140 W
- Weight289 g
- ColourBlack
- Charger typeIndoor
- Input current2.5 A
- Width31 mm
Overview
- Power
- 140 W
- Weight
- 289 g
- Colour
- Black
- Charger type
- Indoor
- Input current
- 2.5 A
- Width
- 31 mm
- Brand
- InLine
- Category
- Mobile Device Charger
- Model
- 31553
- Part number
- 31553
- EAN / UPC
- 4043718334186
- Also known as
- InLine USB PD power supply, GaN charger, 5-port, USB-C + USB-A, 140W, w/display
Specifications
51 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 3 |
| Wireless charging | No |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0 |
| Number of simultaneously connected devices (max) | 5 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Power protection features | Over voltage, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 2.5 A |
| Maximum power | 140 W |
| Maximum output voltage | 20 V |
| Minimum output voltage | 5 V |
| AC adapter power | 100 W |
| Port 1 output power | 100 W |
| Port 2 output power | 100 W |
| Port 3 output power | 100 W |
| Port 4 output power | 100 W |
| Port 5 output power | 100 W |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 5 A |
| Port 1 output current | 5 A |
| Port 2 output current | 5 A |
| Port 3 output current | 5 A |
| Port 4 output current | 5 A |
| Port 5 output current | 5 A |
| Power consumption (no load) | 0.22 W |
| Average active efficiency | 86,22 % (230 V, 50 Hz, USB-C1 + USB-C2 + USB-C3 + USB-A1 + USB-A2 5.0 V / 2.0 A + 5.0 V / 2.0 A + 5.0 V / 2.0 A + 5.0 V / 2.4 A + 5.0 V / 2.4 A) / 90,04 % (230 V, 50 Hz, USB-C1 + USB-C2 + USB-C3 + USB-A1 + USB-A2 20,0 V / 3.25 A + 20.0 V / 1.5 A + 15.0 V / 1.33 A + 5.0 V / 2.4 A + 5.0 V / 2.4 A) |
| Efficiency at low load (10%) | Yes |
| Efficiency (@10 %) | 85.54% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 31 mm |
| Depth | 79 mm |
| Height | 86 mm |
| Weight | 289 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 146 mm |
| Package depth | 200 mm |
| Package height | 49 mm |
| Package volume | 1400 cm³ |
| Package weight | 476 g |
| Package type | Hanging box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 31 x 79 x 86 mm |
