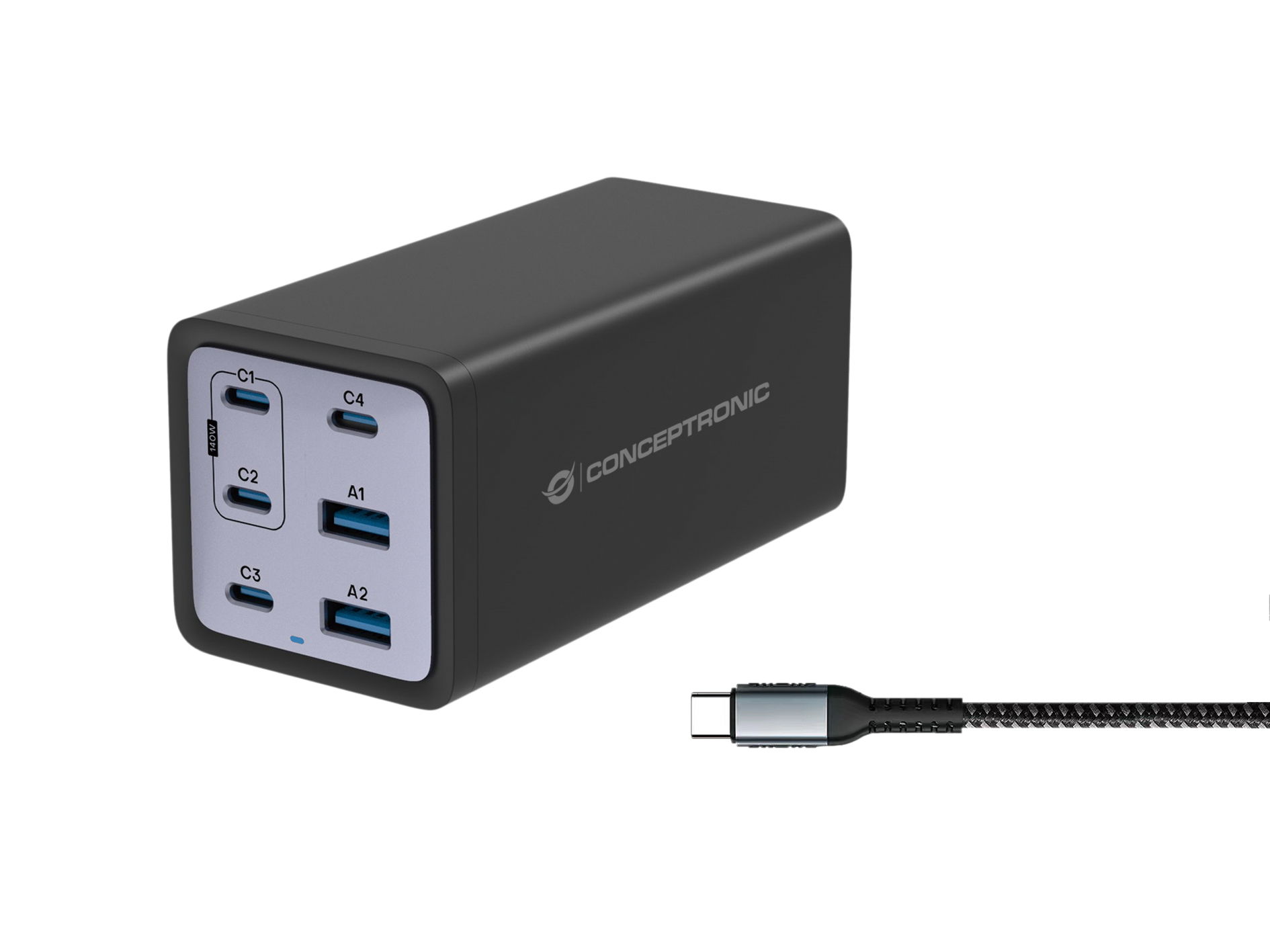

6-Port 200W GaN USB PD Charger with USB-C Charging Cable, USB-C x 4, USB-A x 2, QC 3.0, PD 3.1, PPS
Model OZUL06BEEAN 4015867236543
64 specifications
- Power200 W
- Weight450 g
- ColourBlack
- Charger typeIndoor
- Input voltage100 - 240 V
- Width53.5 mm
Overview
- Power
- 200 W
- Weight
- 450 g
- Colour
- Black
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 53.5 mm
- Brand
- Conceptronic
- Category
- Mobile Device Charger
- Model
- OZUL06BE
- Part number
- OZUL06BE
- EAN / UPC
- 4015867236543
- Also known as
- Conceptronic 6-Port 200W GaN USB PD Charger with USB-C Charging Cable, USB-C x 4, USB-A x 2, QC 3.0, PD 3.1, PPS
Specifications
64 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 4 |
| Fast charging | Yes |
| Fast charging technology | Power Delivery, Quick Charge 3.0 |
| Number of simultaneously connected devices (max) | 6 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| Power protection features | Overheating, Overload, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

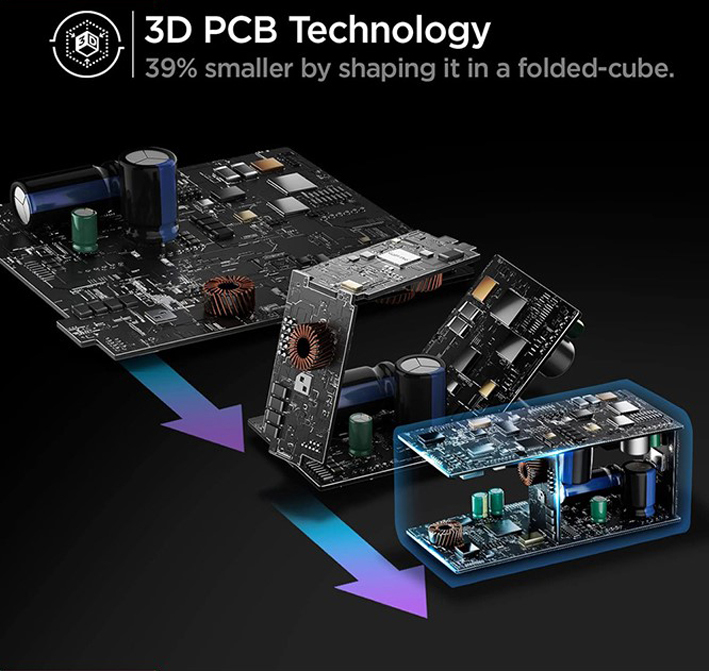

| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Maximum power | 200 W |
| Maximum output voltage | 55 V |
| Minimum output voltage | 3.3 V |

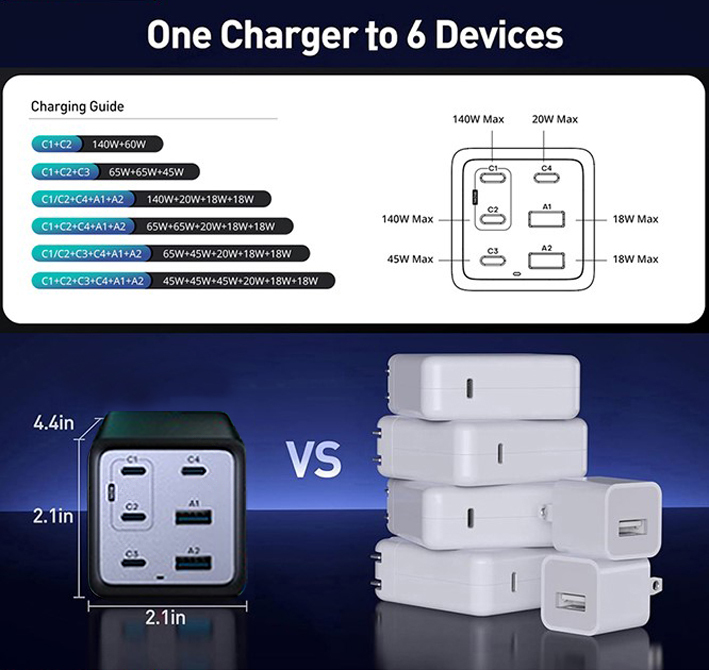

| Port 1 output power | 140 W |
| Port 2 output power | 140 W |
| Port 3 output power | 45 W |
| Port 4 output power | 20 W |
| Port 5 output power | 18 W |
| Port 6 output power | 18 W |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 5 A |
| Port 1 output current | 5 A |
| Port 2 output current | 5 A |
| Port 3 output current | 4.05 A |
| Port 4 output current | 3 A |
| Port 5 output current | 3 A |
| Port 6 output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53.5 mm |
| Depth | 112.5 mm |
| Height | 53.5 mm |
| Weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 57 mm |
| Package height | 150 mm |
| Package weight | 735 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB Type-C to USB Type-C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8504408390 |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 152 cm |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 300 mm |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 20 pc(s) |
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| User guide | Yes |
