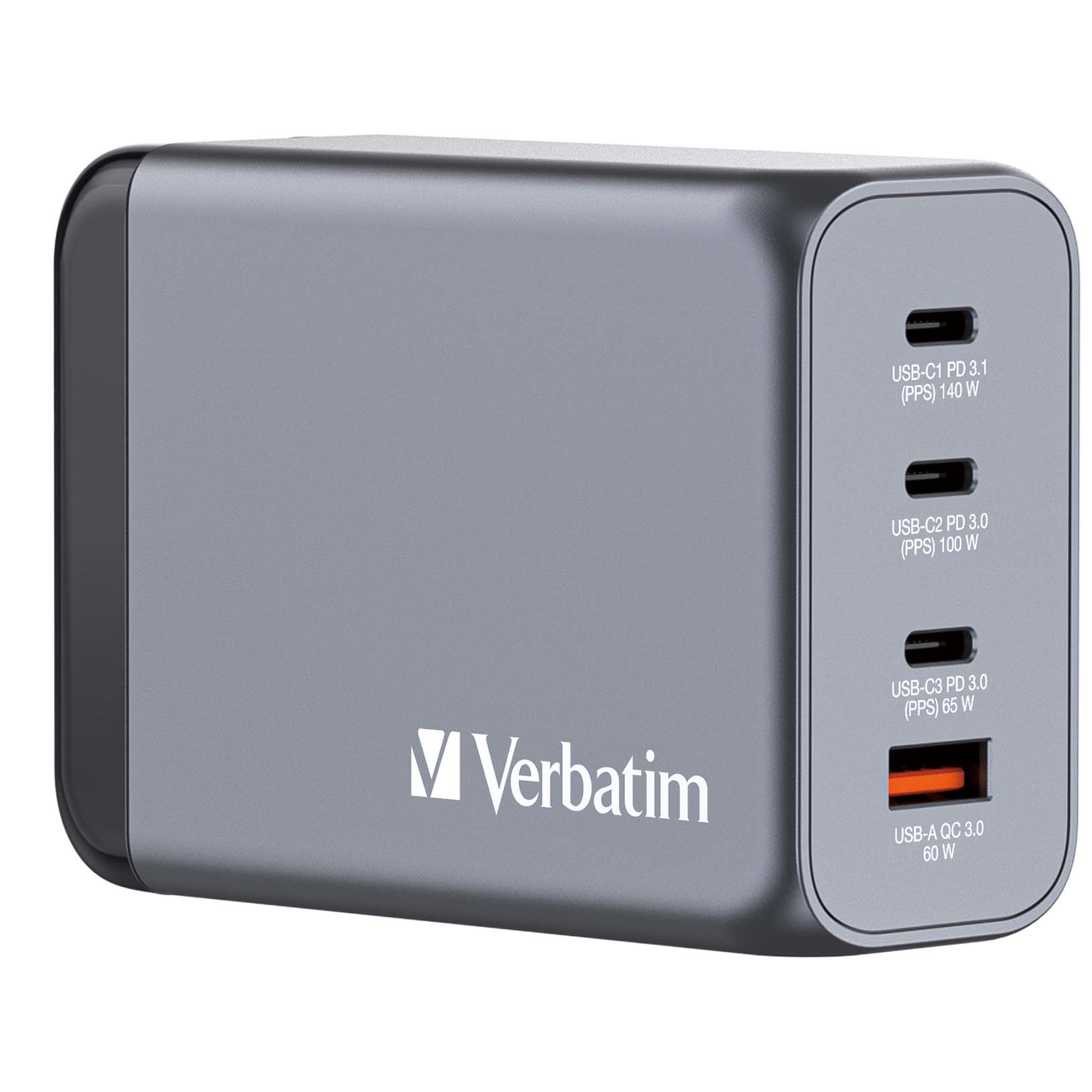

GNC-240 GaN Charger
240W with 1 x USB-C 140W /1 x USB-C 100W / 1 x USB-C 65W / 1 x USB-A QC 3.0 (EU/UK/US)
Model GNC-240Part no. 32205EAN 20023942322058
63 specifications
- Power240 W
- Weight414 g
- ColourBlack, Grey
- Charger typeIndoor
- Input voltage100 - 240 V
- Width36.1 mm
Overview
- Power
- 240 W
- Weight
- 414 g
- Colour
- Black, Grey
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 36.1 mm
- Brand
- Verbatim
- Category
- Mobile Device Charger
- Model
- GNC-240
- Part number
- 32205
- EAN / UPC
- 20023942322058, 50023942322059
- Also known as
- Verbatim GNC-240 GaN Charger 240W with 1 x USB-C 140W /1 x USB-C 100W / 1 x USB-C 65W / 1 x USB-A QC 3.0 (EU/UK/US)
Specifications
63 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 3 |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0 |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Plug and Play | Yes |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 2.8 A |
| Maximum power | 240 W |
| Maximum output voltage | 28 V |
| Minimum output voltage | 3.3 V |
| Port 1 output power | 140 W |
| Port 2 output power | 100 W |
| Port 3 output power | 65 W |
| Port 4 output power | 60 W |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 5 A |
| Port 1 output current | 5 A |
| Port 2 output current | 5 A |
| Port 3 output current | 5 A |
| Port 4 output current | 5 A |
| Compatible power plug types | EU, UK, US |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36.1 mm |
| Depth | 90.5 mm |
| Height | 65 mm |
| Weight | 414 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 47 mm |
| Package depth | 110 mm |
| Package height | 131.5 mm |
| Package weight | 520 g |
| Package type | Hanging box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | REACH, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 85366990 |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 302 mm |
| Master (outer) case gross weight | 11.2 kg |
| Products per master (outer) case | 20 pc(s) |
| Shipping (inner) case width | 25.5 cm |
| Shipping (inner) case length | 25.5 cm |
| Shipping (inner) case height | 13.1 cm |
| Shipping (inner) case gross weight | 5.4 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Country of origin | China |
