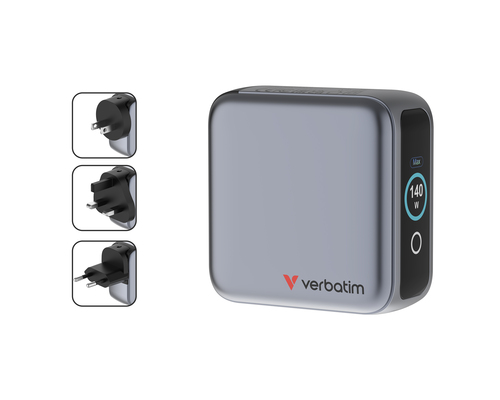

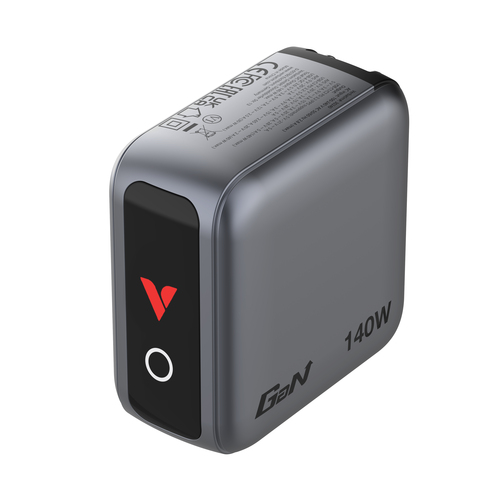

Mini GaN Charger
140W with Display
Model 30240EAN 023942302407
61 specifications
- Power140 W
- Weight340 g
- ColourBlack
- Charger typeIndoor
- Input voltage100 - 240 V
- Width36.5 mm
Overview
- Power
- 140 W
- Weight
- 340 g
- Colour
- Black
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 36.5 mm
- Brand
- Verbatim
- Category
- Mobile Device Charger
- Model
- 30240
- Part number
- 30240
- EAN / UPC
- 023942302407
- Also known as
- Verbatim Mini GaN Charger 140W with Display
Specifications
61 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |

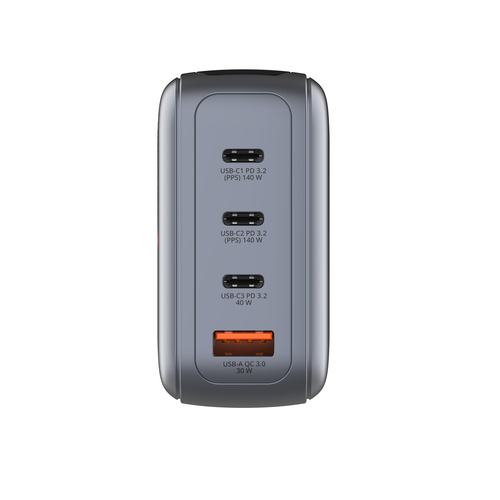

| USB Type-A ports quantity | 1 |
| USB Type-C ports quantity | 3 |
| Wireless charging | No |
| Fast charging | Yes |
| Fast charging technology | Power Delivery 3.0, Quick Charge 3.0 |
| Number of simultaneously connected devices (max) | 4 |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.2 |
| USB Power Delivery up to | 140 W |
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

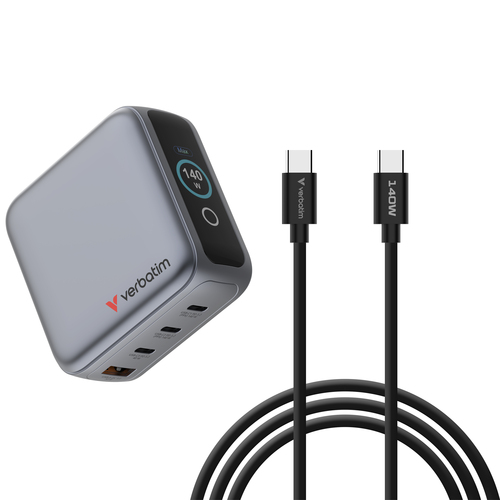

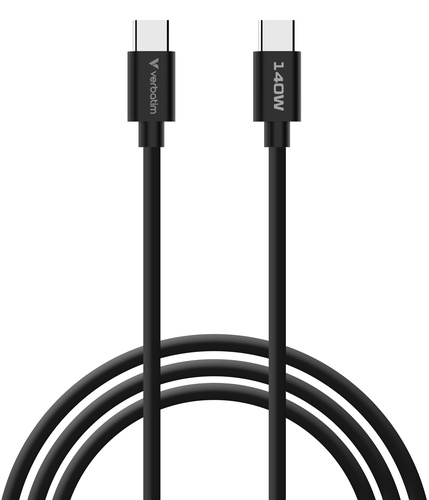

| Cable length | 1 m |
| Housing material | Polycarbonate (PC) |
| Plug and Play | Yes |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 2.8 A |
| Maximum power | 140 W |
| Maximum output voltage | 28 V |
| Minimum output voltage | 5 V |
| Port 1 output power | 140 W |
| Port 2 output power | 140 W |
| Port 3 output power | 40 W |
| Port 4 output power | 30 W |
| Port 1 output current | 5 A |
| Port 2 output current | 5 A |
| Port 3 output current | 3 A |
| Port 4 output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36.5 mm |
| Depth | 71.5 mm |
| Height | 71.5 mm |
| Weight | 340 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 55 mm |
| Package depth | 110 mm |
| Package height | 129.5 mm |
| Package weight | 470.5 g |
| Package type | Hanging box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 25 °C |
| Storage temperature (T-T) | -25 - 40 °C |

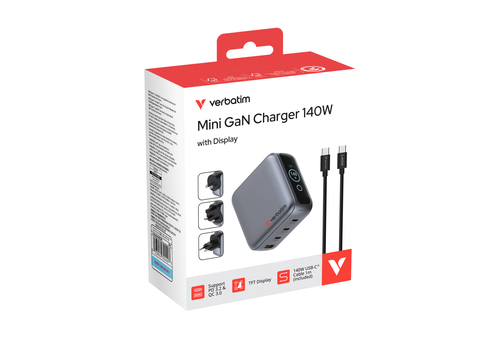

Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Included power plug types | EU, UK, US |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 1152 pc(s) |
| Master (outer) cases per pallet layer | 12 pc(s) |
| Layers per pallet | 4 pc(s) |
| Master (outer) case width | 275 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 325 mm |
| Master (outer) case gross weight | 12.5 kg |
| Products per master (outer) case | 24 pc(s) |
Other features
| Specification | Value |
|---|---|

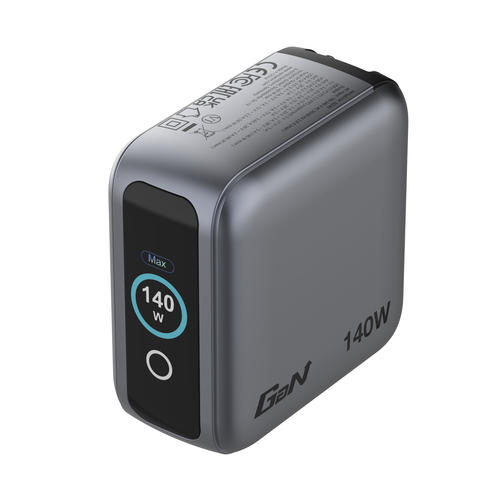

| Built-in display | Yes |
| Display type | TFT |
| Gross weight inner carton | 2983 kg |
| Inner carton dimensions (W x D x H) | 150 x 355 x 150 mm |
| Quantity inner carton | 6 pc(s) |
