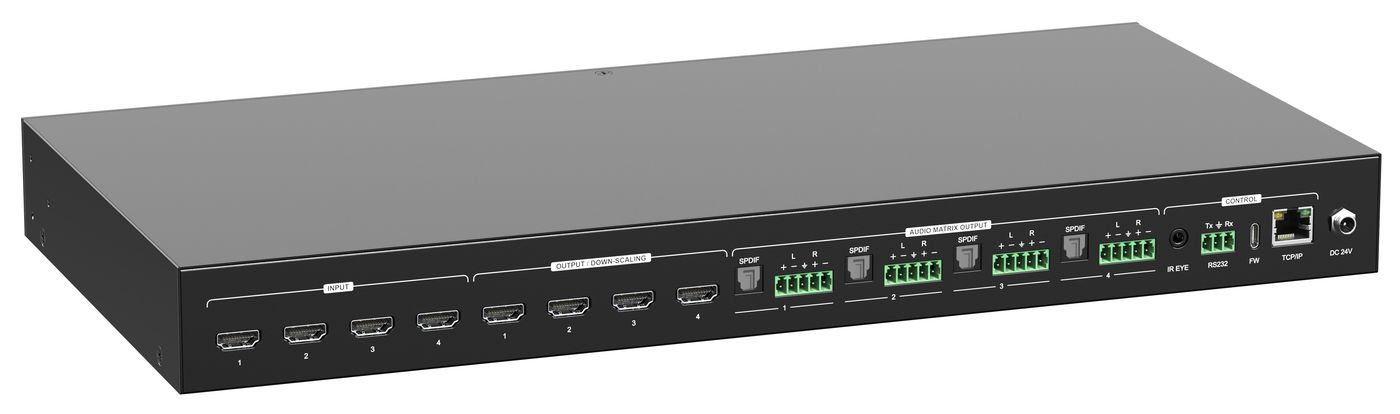

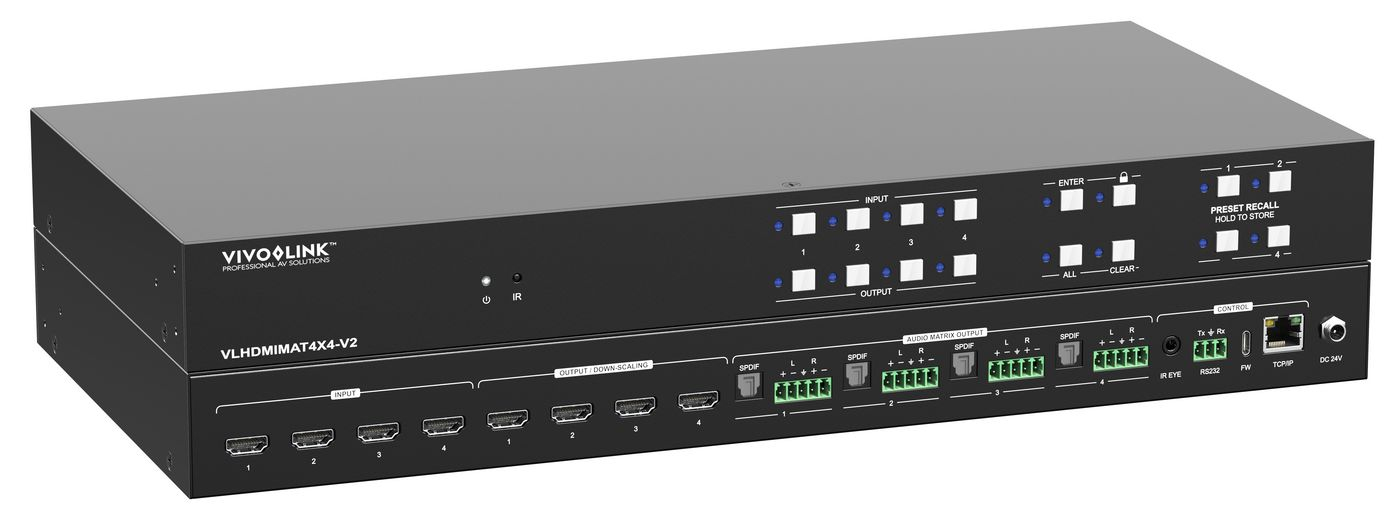

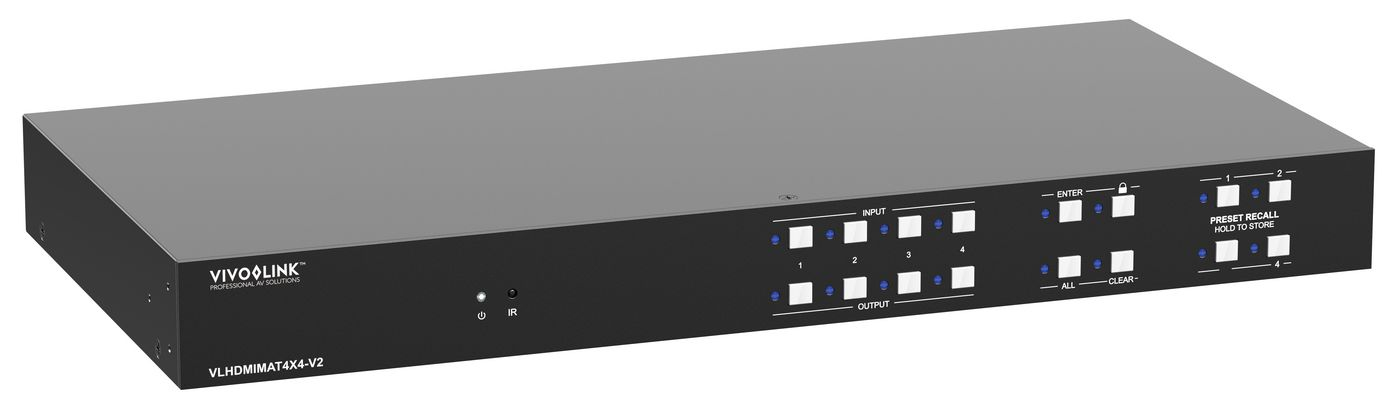

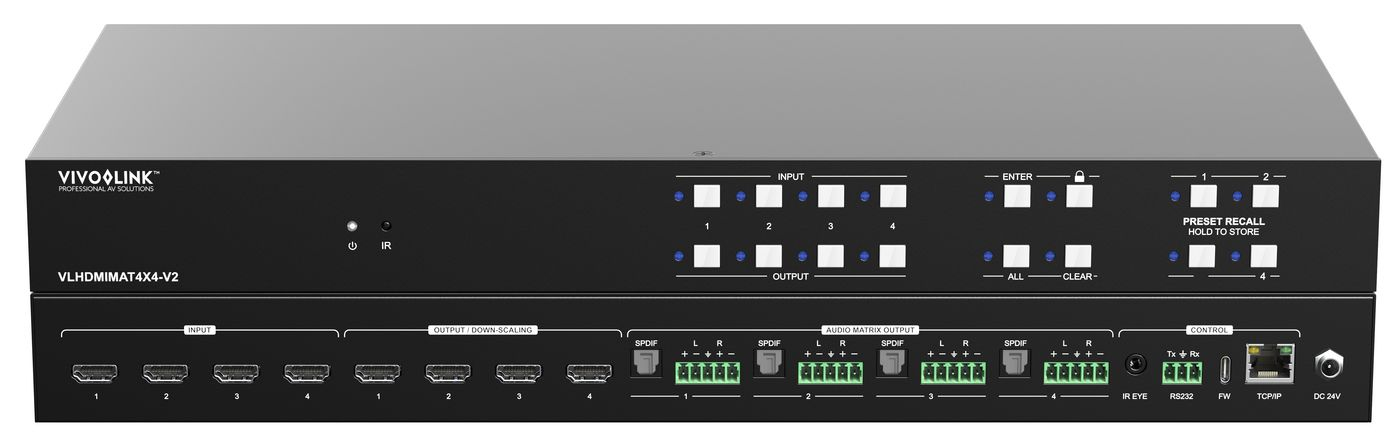

HDMI 2.0 4x4, Matrix Fast switcher w/GUI and RS232 control
Model HDMI 2.0 4x4, Matrix Fast switcher w/GUI and RS232 controlPart no. VLHDMIMAT4X4-V2EAN 5715328167407
27 specifications
- Weight2.63 kg
- Maximum resolution3840 x 2160 pixels
- HDMI input ports quantity4
- AC input voltage100 - 240 V
- Operating temperature (T-T)-5 - 55 °C
- Width350 mm
Overview
- Weight
- 2.63 kg
- Maximum resolution
- 3840 x 2160 pixels
- HDMI input ports quantity
- 4
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- -5 - 55 °C
- Width
- 350 mm
- Brand
- Vivolink
- Category
- Matrix Switcher
- Model
- HDMI 2.0 4x4, Matrix Fast switcher w/GUI and RS232 control
- Part number
- VLHDMIMAT4X4-V2
- EAN / UPC
- 5715328167407
- Also known as
- Vivolink HDMI 2.0 4x4, Matrix Fast switcher w/GUI and RS232 control
Specifications
27 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | PCM |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Audio (L/R) out | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 350 mm |
| Depth | 540 mm |
| Height | 140 mm |
| Weight | 2.63 kg |
| Package width | 350 mm |
| Package depth | 540 mm |
| Package height | 140 mm |
| Package weight | 3.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR sensor |
| Manual | Yes |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| IR receiver included | Yes |
