90 inkjet printer Colour
2400 x 1200 DPI
Model 90Part no. Q6656AEAN 882780046498
57 specifications
- Weight18.5 kg
- ColourYes
- Maximum resolution2400 x 1200 DPI
- Total input capacity100 sheets
- Maximum media width457 mm
- I/O ports1 parallel, 1 USB, 1 EIO
Overview
- Weight
- 18.5 kg
- Colour
- Yes
- Maximum resolution
- 2400 x 1200 DPI
- Total input capacity
- 100 sheets
- Maximum media width
- 457 mm
- I/O ports
- 1 parallel, 1 USB, 1 EIO
- Brand
- HP
- Category
- Inkjet Printer
- Model
- 90
- Part number
- Q6656A
- EAN / UPC
- 882780046498, 829160804675, 829160804682, 829160804699 +16 more
- Also known as
- HP 90 inkjet printer Colour 2400 x 1200 DPI
Specifications
57 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Colour | Yes |
| Number of print cartridges | 6 |
| Duplex printing | No |
| Page description languages | PCL 3, PostScript 3 |
| Printing colours | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Electromagnetic compatibility | Compliance for Class B products, Class A when connected to LANs: EU (EMC Directive), USA (FCC rules), Canada (DoC), Australia (ACA), New Zealand (MoC), China (CCC), Japan (VCCI); Class A: Korea (MIC), Taiwan (BSMI) |
| Safety | IEC 950-compliant, EU LVD and EN60950 compliant, CSA certified for US and Canada, Mexico NOM-1-NYCE, Argentina IRAM, China CCC, Singapore PSB, Russia VNIIS, Korea KTL |
| Print head nozzles | 304 |
Printing
| Specification | Value |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Print speed (colour, draft quality, A4/US Letter) | 1.7 ppm |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 100 sheets |
| Total output capacity | 50 sheets |
| Maximum paper trays | 1 |
| Paper handling standard/input | 100-sheet input tray, front single-sheet paper feed, rear path for manual single-sheet feed |
| Paper handling standard/output | 50-sheet output tray |
Paper handling
| Specification | Value |
|---|---|
| Maximum media width | 457 mm |
| Paper handling | 70-sheet input tray, front single-sheet paper feed, rear path for manual single-sheet feed, optional rear roll feed, 50-sheet output tray |
| Standard media sizes | Tray 1: 76 x 142 to 457 x 610 mm (3 x 5.6 to 18 x 24 in); manual single-sheet feed: 110 x 205 to 457 x 610 mm (4.3 x 8.1 to 18 x 24 in); rear path: 110 x 205 to 457 x 610 mm (4.3 x 8.1 to 18 x 24 in); roll feed: up to 457 mm (18 in) |
| Media handling | 70-sheet input tray, 50-sheet output tray, front single-sheet paper feed, rear path for manual single-sheet feed, rear roll feed with automatic cutter |

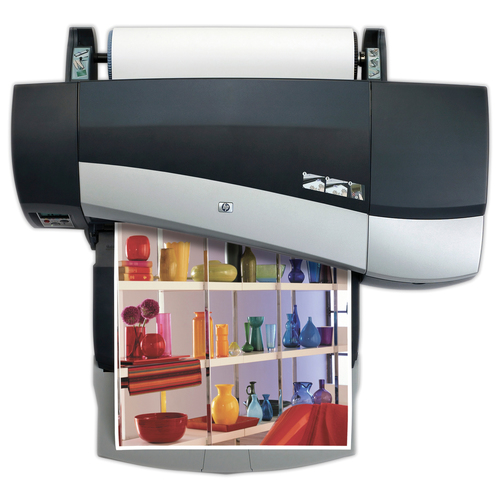

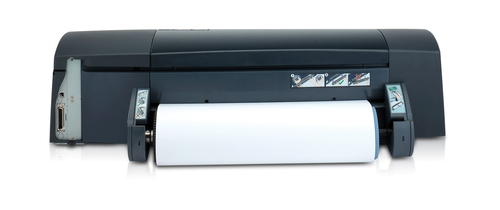

| Paper handling optional/input | Optional roll-feed with automatic cutter |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 parallel, 1 USB, 1 EIO |
Performance
| Specification | Value |
|---|---|
| Maximum internal memory | 64 MB |
| Buffer size | 16384 KB |
| Processor frequency | 16 MHz |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 65 W |
| Power consumption (standby) | 22 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows XP Home, Windows XP Professional |
| Mac operating systems supported | Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther |
| Compatible operating systems | Microsoft Windows 2000, XP Home, XP Professional, Windows Vista; Mac OS 9.x; Mac OS 10.2; Mac OS 10.3 |
| Minimum processor | Pentium II, 300 MHz |
| Minimum RAM | 128 MB |
| Minimum storage drive space | 400 MB |
| Minimum system requirements | Mac OS 9 v 9.2, Mac OS 10 v 10.2 and higher, 10.3, G3 dual processor, 512 MB RAM, 1 GB available hard disk space |
| Minimum system requirements for Macintosh | iMac G3, Mac OS 9 v 9.1, Mac OS 10 v 10.2, 256 MB RAM, 100 MB available hard disk |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 889 mm |
| Depth | 861.1 mm |
| Height | 221 mm |
| Weight | 18.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Downloadable software | HP Designjet 30/90/130 series Windows driver, HP Designjet 30/90/130 series Macintosh driver |
| Bundled software | HP Designjet Windows software, HP Designjet Macintosh software |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.2 % |
| Media types supported | Bond and coated paper (coated, heavyweight coated, plain), photo (gloss, satin, matte), proofing (high-gloss contract, semi-gloss contract, matte), transparencies |
| Power requirements | Input voltage 100 to 240 VAC (+/- 10%) auto range, 50/60 Hz (+/- 3 Hz), 2 amp maximum |
| Print cartridge volume (metric) | 6 (1 each cyan, magenta, yellow, black, light cyan, light magenta) |
| Standard input trays | 1 |
| Compatible ink types, supplies | HP Vivera dye-based inks |
| Duplex print options | None |
| Colour printing technology | Colorsmart III |
| Control panel | 2 LEDs for status: Power, Attention; 3 keys: Power, Cancel, OK; display area containing information icons |
| Driver updates | Latest driver upgrade information available on http:// |
| Maximum length of sheet media | 625 mm |
| Media thickness (by paper path) | Tray 1: up to 8 mil; envelopes: up to 15 mil; rear tray: up to 15 mil; manual sheet feed: up to 8 mil |
| Technical features | Superb image quality—rich colour depth and minimal dot visibility—with 2400 dpi and HP Vivera Inks |
