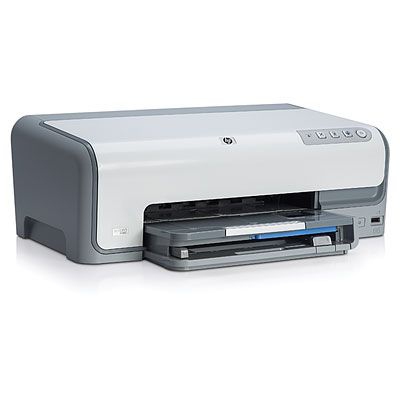

Photosmart D6160 Printer
Model Photosmart D6160 PrinterPart no. C9089B#UUW#*SIBAEAN 882780735774
129 specifications
- Memory32 MB
- ConnectivityUSB (USB 2.0), PictBridge
- Weight7.37 kg
- ColourYes
- Maximum resolution4800 x 1200 DPI
- Total input capacity100 sheets
Overview
- Memory
- 32 MB
- Connectivity
- USB (USB 2.0), PictBridge
- Weight
- 7.37 kg
- Colour
- Yes
- Maximum resolution
- 4800 x 1200 DPI
- Total input capacity
- 100 sheets
- Brand
- HP
- Category
- Inkjet Printer
- Model
- Photosmart D6160 Printer
- Part numbers
- C9089B#UUW#*SIBA, C9089B
- EAN / UPC
- 882780735774, 882780524576, 882780524583, 882780524590 +3 more
- Also known as
- HP Photosmart D6160 Printer inkjet printer Colour 4800 x 1200 DPI
Specifications
129 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum duty cycle | 3000 pages per month |
| Number of print cartridges | 6 |
| Printing colours | Black, Cyan, Light Cyan, Magenta, Yellow |
| Electromagnetic compatibility | EN55022: 1998 + A1:2000 + A2:2003 / Class B; CISPR 22: 1997 +A1 2000 +A2: 2002 / Class B; EN55024: 1998 +A1: 2001 + A2: 2003; CISPR 24: 1997; IEC/EN 61000-3-2: 2000 (2nd Edition); IEC/EN 61000-3-3: 1995 + A1: 2001; FCC Title 47 CFR, Part 15 Class B |
| Safety | I |
Printing
| Specification | Value |
|---|---|
| Maximum resolution | 4800 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 7.8 ppm |
| Print speed (colour, draft quality, A4/US Letter) | 31 ppm |
| Print speed (black, draft quality, A4/US Letter) | 32 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 5.7 ppm |
| Print speed (colour, best quality, A4) | 2.1 ppm |
| Print speed (black, best quality, A4) | 2.1 ppm |
| Print quality (colour, best quality) | 4800 DPI |
| Print quality (black, normal quality) | 600 DPI |
| Print quality (black, draft quality) | 300 DPI |
| Print quality (black, best quality) | 1200 |
| Print speed (black, fast normal quality, A4) | 7.9 ppm |
| Print speed (colour, fast normal quality, A4) | 7.3 ppm |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 100 sheets |
| Total output capacity | 50 sheets |
| Maximum input capacity | 100 sheets |
| Maximum output capacity | 50 sheets |
| Envelope feeder | No |
| Standard input capacity for cards | Up to 40 cards |
| Standard input capacity for transparencies | Up to 30 sheets |
| Standard output capacity for cards | Up to 25 cards |
| Maximum output capacity for transparencies | 25 sheets |
| Maximum input capacity for transparencies | 30 sheets |
| Maximum input capacity for labels | Up to 30 sheets |
| Maximum input capacity for envelopes | 10 |
| Maximum input capacity for cards | 40 |
| Maximum paper trays | 1 plus automated 4 x 6-in photo tray |
| Paper handling standard/input | 100-sheet input tray, automated 10 x 15 cm photo tray |
| Paper handling standard/output | 50-sheet output tray |
Paper handling
| Specification | Value |
|---|---|
| Media size (tray 1) | Letter, legal, executive, No. 10 envelopes, index cards, 5 x 7-in photo, 4 x 6-in photo, 4 x 12-in panorama, 4 x 24-in panorama |
| Media weights by paper path | US letter: 60 to 90 g/m2; A4: 60 to 90 g/m2; legal: 75 to 90 g/m2; envelopes: 75 to 90 g/m2; cards: up to 200 g/m2; photo paper: up to 280 g/m2 |
| Recommended media weight | A4: 60 - 90, HP envelopes: 70 - 90, HP cards: up - 200, HP pho- paper: up - 280 |
| Standard media sizes | A4 (210 x 297 mm) ; A5 (148 x 210 mm) ; B5 (176 x 250 mm) ; DL (110 x 220 mm) ; C6 (114 x 162 mm) ; A6 (105 x 148 mm) ; panorama (100 x 300 mm, 215 x 610 mm) ; 130 x 180 mm ; 100 x 150 mm |
| Custom media sizes | 76 x 102 ~ 215 x 610 mm |
| Media handling | Sheetfed |
| Recommended media | Paper (plain, inkjet, photo), envelopes, transparencies, labels, cards (index, greeting), borderless media |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| PictBridge | Yes |
| I/O ports | 1 x USB 1 x PictBridge |
| Wireless option type | Optional, with HP bt450 Bluetooth Wireless Printer and PC Adapter |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32 MB |
| Maximum internal memory | 32 MB |
| Acoustic power emissions | 6,6 B(A) |
| Acoustic pressure emissions | 54 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 4 W |
| Power consumption (off) | 0.3 W |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows 98 SE, 2000, Me, XP, Mac OS X v10.3, 10.4 |
| Minimum processor | Intel Pentium II / Celeron |
| Minimum RAM | 128 MB |
| Minimum storage drive space | 425 MB |
| Minimum system requirements | Any Intel Pentium II Celeron compatible processor or higher; 128 MB RAM (Windows 2000, XP Home, XP Professional); 256 MB or higher recommended for all operating systems; 425 MB available hard disk space; SVGA 800 x 600 monitor with 16-bit colour; Wind |
| Minimum system requirements for Macintosh | Mac OS X v10.3.9, 10.4; G3 processor (G4 or higher recommended); 128 MB RAM (256 MB or higher recommended); 400 MB available hard disk space; SVGA 800 x 600 monitor with 16-bit colour; CD-ROM drive; available USB port and USB cable for direct connection; |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Recommended operating temperature range (T-T) | 15 - 30 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.37 kg |
| Pallet dimensions (W x D x H) | 1219 x 1016 x 2476 mm |
| Maximum dimensions (W x D x H) | 462.5 x 500 x 236.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | HP Photosmart Essential and Premier Software, HP Photosmart Express |
| Package weight | 9.4 kg |
| Package weight (imperial) | 9.34 kg (20.6 lbs) |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 443.6 kg |
| Master (outer) cases per pallet | 9 pc(s) |
| Layers per pallet | 5 pc(s) |
| Products per pallet | 45 pc(s) |
Other features
| Specification | Value |
|---|---|
| Network ready | No |
| Dimensions (WxDxH) | 462.5 x 387.3 x 172.9 mm |
| Functions | Color printing |
| Interface | USB (USB 2.0), PictBridge |
| Media types supported | Paper (inkjet, photo, plain), envelopes, labels, cards (greeting, index), transparencies, iron-on transfers |
| Power requirements | 100 ~ 240 V (+/- 10 %), 50/60 Hz (+/-3 Hz) |
| Print head | 6 (1 each black, cyan, magenta, yellow, light cyan, light magenta) |
| Print quality, vertical alignment accuracy | +/- 0,0508 mm |
| Print technology | Inkjet |
| Product dimensions when open (LxWxD) | 46.2 cm (18.2") |
| Size (imperial) | 46.2 cm (18.2") |
| Standard input trays | 2 |
| Wireless technology | Bluetooth |
| Package dimensions (WxDxH) | 532 x 233 x 466 mm |
| Maximum print length | 610 m |
| Compatible ink types, supplies | Dye-based, pigment-based |
| Duplex print options | Automatic (optional) |
| Typefaces | 8 built in |
| Automatic paper sensor | No |
| Camera phone | Direct photo printing from camera phones with the optional HP bt450 Bluetooth Wireless Printer and PC Adapter Yes |
| Control panel | 5 front-panel buttons (Power, Ink Indicator, Cancel, Resume, HP Photosmart Express) |
| Exifprint supported | Yes |
| Fade-resistance (archivability, dye ink) | 200 year(s) |
| Maximum input capacity (photo paper) | 30 sheets |
| Maximum input capacity for 10 x 15 cm photographs | 20 sheets |
| Maximum output capacity (photo paper) | 10 sheets |
| Maximum output capacity for labels | 25 sheets |
| Maximum print length (imperial) | 24 in |
| Media sizes supported (imperial) | Letter, legal, executive, No. 10 envelopes, index cards, 5 x 7-in photo, 4 x 6-in photo, 4 x 12-in panorama, 4 x 24-in panorama |
| Package dimensions (W x D x H) | 530.9 x 233.7 x 464.8 mm (20.9 x 9.2 x 18.3") |
| Pallet dimensions (W x D x H) (imperial) | 1219.2 x 1016 x 2476.5 mm (48 x 40 x 97.5") |
| Pallet weight (imperial) | 443.6 kg (978 lbs) |
| Photo proofsheets supported | No |
| Print speed (black, best quality, letter) | Up to 2.1 ppm |
| Print speed (black, fast normal quality, letter) | Up to 7.9 ppm |
| Print speed (colour, best quality, letter) | Up to 2.1 ppm |
| Print speed (colour, draft quality, 10 x 15 photo) | As fast as 12 sec |
| Print speed (colour, draft quality, letter) | Up to 31 ppm |
| Print speed (colour, fast normal, letter) | Up to 7.3 ppm |
| Print speed (colour, normal quality, 10 x 15 photo) | As fast as 21 sec As fast as 49 sec |
| Printer features | Color printing |
| Recommended media weight (imperial) | 16 to 24 lb |
| Skew | +/- 0.006 in |
| Skew (transparency) | +/- 0.010 in |
| Standard input capacity for envelopes | 10 sheets |
| Standard input capacity for legal | 100 sheets |
| Standard output capacity for labels | 25 sheets |
| Standard output capacity for legal | 50 sheets |
| Standard output capacity for transparencies | 25 sheets |
| SureSupply supported | Yes |
| Technical features | 10 x 15 cm photos in as fast as 12 seconds; documents up to 32 ppm black/31 ppm colour. Economical printing with individual ink cartridges and ink recirculation system. Convenient on-board control panel with one-touch buttons including HP Photosmart softw |
| UNSPSC-code | 43212104 |
| Vivera inks supported | Yes |
| Weight (imperial) | 16.2 lb |
