Deskjet D5560 Printer
Model Deskjet D5560 PrinterPart no. CB774BEAN 8849620065974
131 specifications
- Display3.18 cm (1.25")
- Memory64 MB
- Weight2.62 kg
- ColourYes
- Maximum resolution4800 x 1200 DPI
- Total input capacity80 sheets
Overview
- Display
- 3.18 cm (1.25")
- Memory
- 64 MB
- Weight
- 2.62 kg
- Colour
- Yes
- Maximum resolution
- 4800 x 1200 DPI
- Total input capacity
- 80 sheets
- Brand
- HP
- Category
- Inkjet Printer
- Model
- Deskjet D5560 Printer
- Part number
- CB774B
- EAN / UPC
- 8849620065974, 008442093154, 884420931546, 884420931553 +4 more
- Also known as
- HP Deskjet D5560 Printer inkjet printer Colour 4800 x 1200 DPI A4
Specifications
131 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| Colour | Yes |
| Number of print cartridges | 2 |
| Electromagnetic compatibility | EN 55022: 2006/CISPR 22: 2005 Class B: EN 55024: 1998+A1:2001+A2: 2003: EN 610000-3-2:2006: EN 610000-3-3: 1995+A1: 2001 FCC CFR 47, Part 15 Class B/ICES-003, Issue 4 Class B |
| Safety | Safety: EN 60950-1: 2001+A11: 2004/IEC 60950: 2001; Radio: EN 301 489-1 V1.6.1:2005: EN 301 489-17 V1.2.1:2002: EN 300 328 V1.7.1:2006 |
| Print head nozzles | 336 - Black; 1248 Tri-Color |
Printing
| Specification | Value |
|---|---|
| Maximum resolution | 4800 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 8 ppm |
| Print speed (colour, draft quality, A4/US Letter) | 21 ppm |
| Print speed (black, draft quality, A4/US Letter) | 28 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 6 ppm |
| Print speed (colour, best quality, A4) | 2 ppm |
| Print speed (black, best quality, A4) | 5 ppm |
| Print quality (black, best quality) | 600 |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 80 sheets |
| Total output capacity | 20 sheets |
| Maximum output capacity | 20 sheets |
| Envelope feeder | No |
| Standard input capacity for cards | Up to 20 cards |
| Input capacity for envelopes (primary tray) | 10 sheets |
| Standard input capacity for transparencies | Up to 15 cards |
| Standard output capacity for envelopes | 10 sheets |
| Standard output capacity for cards | Up to 20 cards |
| Maximum output capacity for transparencies | 10 sheets |
| Maximum input capacity for transparencies | 15 sheets |
| Maximum input capacity for labels | Up to 10 |
| Maximum input capacity for envelopes | 10 |
| Maximum input capacity for cards | 20 |
| Maximum paper trays | 1 |
| Paper handling standard/input | 80-sheet input tray |
| Paper handling standard/output | 20-sheet output tray |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Card stock, Envelopes, Iron-On Transfers, Labels, Photo paper, Plain paper, Transparencies |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| ISO C-series sizes (C0...C9) | C6 |
| Non-ISO print media sizes | Legal |
| Media size (tray 1) | A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), DL (110 x 220 mm), C6 (114 x 162 mm), A6 (105 x 148 mm), (300 x 100 mm), (130 x 180 mm), (100 x 150 mm) |
| Media weight (tray 1) | A4: 75 to 90 g/m², legal: 75 to 90 g/m², envelopes: 75 to 90 g/m², cards: up to 200 g/m², 10 x 15 cm photo: up to 280 g/m² |
| Media weights by paper path | A4: 75 to 90 g/m2; legal: 75 to 90 g/m2; envelopes: 75 to 90 g/m2; cards: up to 200 g/m2; 10 x 15 cm photo: up to 280 g/m2 |
| Paper handling | 80-sheet input tray, 20-sheet output tray |
| Recommended media weight | 75 - 280 g/m² |
| Standard media sizes | A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), DL (110 x 220 mm), C6 (114 x 162 mm), A6 (105 x 148 mm), 300 x 100 mm, 130 x 180 mm, 100 x 150 mm |
| Custom media sizes | 76.2 x 127 to 215.9 x 762 mm |
| Media handling | Sheetfed |
| Recommended media | Paper (plain, inkjet, photo), envelopes, transparencies, labels, cards, HP Advanced Media, iron-on transfers, borderless media, panorama |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Direct printing | No |
| PictBridge | No |
| I/O ports | 1 Hi-Speed USB 2.0, 1 wireless 802.11b/g |
| Wireless option type | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Drive device, buffer size | 64 MB |
| Acoustic power emissions | 6.9 B(A) (black-and-white fast draft print mode ), 5.7 B(A) (colour normal print mode), 6.0 B(A) (black-and-white normal print mode), 2.7 B(A) (idle) |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 3.18 cm (1.25") |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 3.2 W |
| Power consumption (PowerSave) | 2 W |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista (32-bit & 64-bit); Microsoft Windows XP (SP1 or higher/32-bit); Mac OS X v10.4, v10.5 |
| Minimum system requirements | Microsoft Windows XP Professional (SP1 or higher); any Intel Pentium II, Celeron or compatible processor; 233 MHz or higher; 128 MB RAM (256 MB or higher recommended); 600 MB hard disk space; Internet Explorer 6 or higher; CD-ROM/DVD drive or Internet connection; USB port; Windows Vista; 800 MHz 32- |
| Minimum system requirements for Macintosh | Mac OS X v10.4 or v10.5; PowerPC G3, G4, G5 or Intel Core processor; 256 MB RAM; 500 MB available hard disk space; CD ROM; USB port |
| JetDirect Compatible Products | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 59 - 86 °F |
| Recommended operating temperature range (T-T) | 15 - 30 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 443 mm |
| Depth | 485 mm |
| Height | 147 mm |
| Weight | 2.62 kg |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 3251 mm |
| Maximum dimensions (W x D x H) | 433 x 485 x 147 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | Windows Live Photo Gallery |
| Package weight | 4.2 kg |
| Package weight (imperial) | 4.18 kg (9.22 lbs) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 10 pc(s) |
| Layers per pallet | 10 pc(s) |
| Pallet size (EU) | 1200 x 1000 x 2351 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 433 x 210 x 164 mm |
| Functions | |
| Interface | Hi-Speed USB 2.0, wireless 802.11b/g |
| Media types supported | Paper (plain, inkjet, photo), envelopes, transparencies, labels, cards, HP Advanced Media, iron-on transfers, borderless media, panorama |
| Networking features | Built-in wireless 802.11b/g |
| Power requirements | Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz); may vary by region |
| Print head | 2 (1 each black, tri-color) |
| Print quality, vertical alignment accuracy | +/-0.0508 mm |
| Print technology | Inkjet |
| Size (imperial) | 43.3 cm (17.1") |
| Standard input trays | 1 |
| Wireless technology | IEEE 802.11b/g |
| Package dimensions (WxDxH) | 484 x 219 x 246 mm |
| Maximum print length | 0.762 m |
| Compatible ink types, supplies | Dye-based; pigment-based |
| Duplex print options | Manual (driver support provided) |
| Automatic paper sensor | No |
| Camera phone | No |

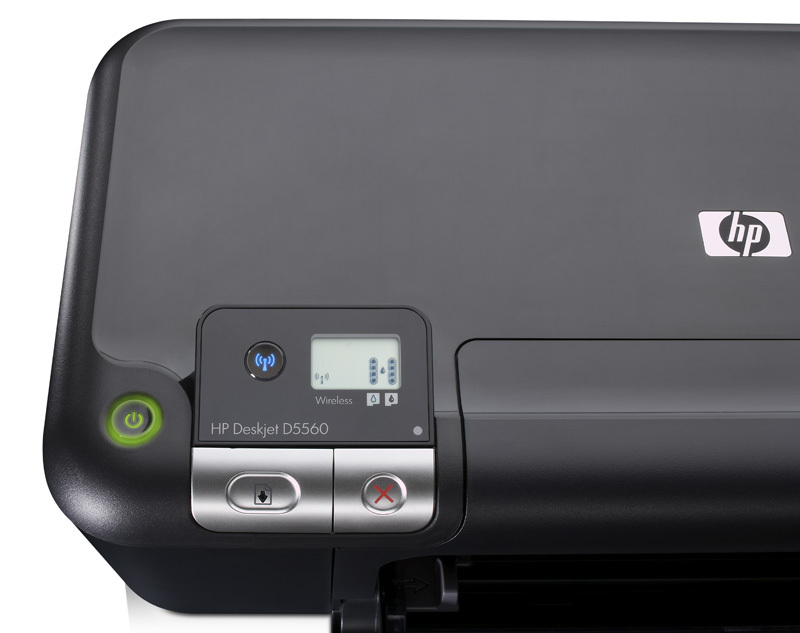

| Control panel | 4 lights (Power, Resume, Error Indicator, Wireless); 4 Buttons (Power, Cancel, Resume, Wireless) |
| Dimension note (imperial) | Dimensions vary as per configuration |
| Dimension note (metric) | Dimensions vary as per configuration |
| Exifprint supported | No |
| Maximum input capacity (photo paper) | 20 sheets |
| Maximum input capacity for 10 x 15 cm photographs | 20 sheets |
| Maximum output capacity (photo paper) | 20 sheets |
| Maximum output capacity for labels | 10 sheets |
| Maximum print length (imperial) | 30 in |
| Media sizes supported (imperial) | Letter; legal; 4 x 6 in; 5 x 7 in; 8 x 10 in; No. 10 envelopes |
| Package dimensions (W x D x H) | 485.1 x 218.4 x 246.4 mm (19.1 x 8.6 x 9.7") |
| Page yield identifier | DJD5500 |
| Pallet dimensions (W x D x H) (imperial) | 1199.9 x 1000 x 2351 mm (47.2 x 39.4 x 92.6") |
| Photo proofsheets supported | No |
| Print speed (black, best quality, letter) | < 5 ppm |
| Print speed (colour, best quality, letter) | < 2 ppm |
| Print speed (colour, draft quality, letter) | < 21 ppm |
| Product dimensions optional (metric) | 433 x 210 x 147 mm (with input tray and extension close) |
| Recommended media weight (imperial) | 20 to 26 lb |
| Skew | +/- 0.006 in |
| Skew (transparency) | +/- 0.012 in |
| Standard input capacity for legal | 80 sheets |
| Standard output capacity for labels | 10 sheets |
| Standard output capacity for legal | 20 sheets |
| Standard output capacity for transparencies | 10 sheets |
| SureSupply connection type | Direct and Network |
| SureSupply supported | Yes |
| Technical features | ENERGY STAR qualified printer; less waste too – created from 35% recycled plastic. 4-ink colour; optional high-capacity cartridges. Reliable – easy to set up and easy to use. Four one-touch buttons (power, resume, cancel, wireless), ink level gauge. HP Smart Web Printing. Borderless printing: 10 x 1 |
| Video action printing supported | No |
| Vivera inks supported | No |
| Weight (imperial) | none 5.76 lb |
