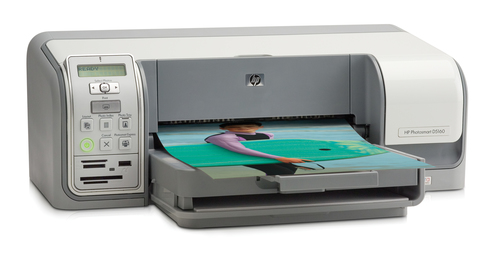

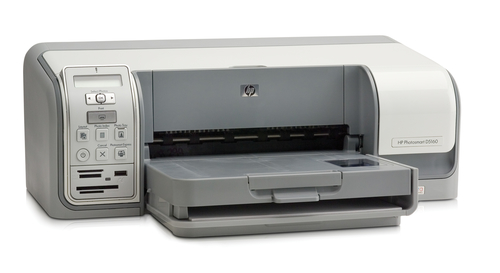

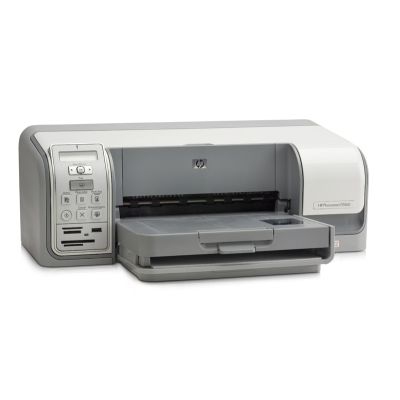

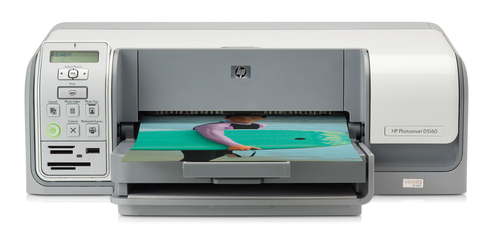

Photosmart D5160 Printer
Model Photosmart D5160 PrinterPart no. Q7090AEAN 882780576957
131 specifications
- Memory32 MB
- Weight4.95 kg
- ColourYes
- Maximum resolution4800 x 1200 DPI
- Total input capacity125 sheets
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 32 MB
- Weight
- 4.95 kg
- Colour
- Yes
- Maximum resolution
- 4800 x 1200 DPI
- Total input capacity
- 125 sheets
- Maximum ISO A-series paper size
- A4
- Brand
- HP
- Category
- Inkjet Printer
- Model
- Photosmart D5160 Printer
- Part numbers
- Q7090A, Q7091B
- EAN / UPC
- 882780576957, 808736760928, 882780576902, 882780576919 +3 more
- Also known as
- HP Photosmart D5160 Printer inkjet printer Colour 4800 x 1200 DPI A4
Specifications
131 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum duty cycle | 3000 pages per month |
| Printing colours | Light Cyan, Magenta, Yellow |
Printing
| Specification | Value |
|---|---|
| Maximum resolution | 4800 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 31 ppm |
| Print speed (colour, draft quality, A4/US Letter) | 24 ppm |
| Print speed (black, draft quality, A4/US Letter) | 31 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 24 ppm |
| Print speed (colour, best quality, A4) | 2.3 ppm |
| Print speed (black, best quality, A4) | 2.3 ppm |
| Print quality (colour, best quality) | 4800 DPI |
| Print quality (black, normal quality) | 600 DPI |
| Print quality (black, draft quality) | 300 DPI |
| Print quality (black, best quality) | 1200 |
| Print speed (black, fast normal quality, A4) | 11 ppm |
| Print speed (colour, fast normal quality, A4) | 7.2 ppm |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 125 sheets |
| Total output capacity | 65 sheets |
| Maximum input capacity | 125 sheets |
| Maximum output capacity | 65 sheets |
| Envelope feeder | No |
| Standard input capacity for cards | Up to 60 cards |
| Standard input capacity for transparencies | Up to 95 sheets |
| Standard output capacity for cards | Up to 30 cards |
| Maximum output capacity for transparencies | 50 sheets |
| Duty cycle letter size (maximum) | 3000 pages per month |
| Maximum input capacity for transparencies | 95 sheets |
| Maximum input capacity for labels | Up to 60 sheets |
| Maximum input capacity for envelopes | 15 |
| Maximum input capacity for cards | 60 |
| Maximum paper trays | 1 plus automated photo tray that supports 4 x 6-in and 5 x 7-in photo paper |
| Paper handling standard/input | 125-sheet input tray, automated 20-sheet photo tray (supports 10 x 15 cm and 13 x 18 cm) |
| Paper handling standard/output | 65-sheet output tray |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 210 x 297 mm |
| ISO B-series sizes (B0...B9) | B5 |
| ISO C-series sizes (C0...C9) | C6 |
| A6 Card | Yes |
| Media weights by paper path | US letter: 60 to 90 g/m2; A4: 60 to 90 g/m2; legal: 75 to 90 g/m2; envelopes: 75 to 90 g/m2; cards: up to 200 g/m2; photo paper: up to 280 g/m2 |
| Recommended media weight | A4: 60 - 90, HP envelopes: 70 - 90, HP cards: up - 200, HP pho- paper: up - 280, CD-DVD labels |
| Standard media sizes | A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), DL (110 x 220 mm), C6 (114 x 162 mm), A6 (105 x 148 mm), 100 x 300 mm, 215 x 610 mm, 130 x 180 mm, 100 x 150 mm, CD/DVD |
| Custom media sizes | 77 x 127 to 215 x 610 mm |
| Media handling | Sheetfed |
| Recommended media | Paper (plain, inkjet, photo), envelopes, transparencies, labels, cards (index, greeting), borderless media, CD/DVD |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Direct printing | Yes |
| PictBridge | Yes |
| I/O ports | 1 USB - compatible with USB 2.0 specifications, 1 PictBridge, 4 memory card slots |
| Wireless option type | Optional, with HP bt450 Bluetooth Wireless Printer and PC Adapter |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32 MB |
| Maximum internal memory | 32 MB |
| Sound power level (printing) | 4.7 dB |
| Acoustic power emissions | 4.7 B(A) |
| Acoustic pressure emissions | 47 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Display | LCD |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 50 W |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | - Windows 2000 / XP Home / XP Professional / Windows Vista - Mac OS X v10.3.9, 10.4 |
| Minimum processor | Intel Pentium II / Celeron |
| Minimum RAM | 128 MB |
| Minimum storage drive space | 425 MB |
| Minimum system requirements | Any Intel Pentium II, Celeron-compatible processor or higher; 128 MB RAM (256 MB or higher recommended); 425 MB available hard disk space; SVGA 800 x 600 monitor with 16-bit colour; Windows 2000 (SP3 or higher), XP Home and XP Professional; Internet Explorer 5.01 (SP2 or higher); CD-ROM drive; avail |
| Minimum system requirements for Macintosh | Mac OS X v10.3.9, v 10.4; G3 processor (G4 or higher recommended); 128 MB RAM (256 MB or higher recommended), 400 MB available hard disk space; SVGA 800 x 600 monitor with 16-bit colour; CD-ROM drive; requires CD writer and 700 MB of additional hard disk space; available USB port and USB cable for d |
| JetDirect Compatible Products | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 59 - 86 °F |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Recommended operating temperature range (T-T) | 15 - 30 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 458 mm |
| Depth | 382 mm |
| Height | 171 mm |
| Weight | 4.95 kg |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2345 mm |
| Maximum dimensions (W x D x H) | 458 x 382 x 171 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | - HP Photosmart Essential - Premier Software - HP Photosmart Express |
| Package weight | 6.8 kg |
| Package weight (imperial) | 6.78 kg (14.9 lbs) |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 363 kg |
| Master (outer) cases per pallet | 10 pc(s) |
| Layers per pallet | 5 pc(s) |
| Products per pallet | 50 pc(s) |
| Products per pallet (EU) | 50 pc(s) |
| Pallet size (EU) | 1200 x 1000 x 2345 mm |
Other features
| Specification | Value |
|---|---|
| Network ready | No |
| Dimensions (WxDxH) | 458 x 382 x 171 mm |
| Functions | |
| Interface | USB 2.0, PictBridge, memory cards |
| Media types supported | Paper (inkjet, photo, plain), envelopes, labels, cards (greeting, index), transparencies, iron-on transfers, CD/DVD |
| Power requirements | Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz) |
| Print head | 4 (1 each black, photo, tri-color, optional gray photo) |
| Print quality, vertical alignment accuracy | +/- 0.0508 mm |
| Print technology | Inkjet |
| Product dimensions when open (LxWxD) | 45.7 cm (18") |
| Size (imperial) | 45.7 cm (18") |
| Standard input trays | 2 |
| Wireless technology | Bluetooth |
| Package dimensions (WxDxH) | 500 x 240 x 437 mm |
| Maximum print length | 610 m |
| Compatible ink types, supplies | Dye-based, pigment-based |
| Duplex print options | Manual (driver support provided) |
| Automatic paper sensor | Yes |
| Camera phone | Direct photo printing from camera phones with the optional HP bt450 Bluetooth Wireless Printer and PC Adapter Yes |
| Control panel | 8 front-panel buttons (Power, Cancel, HP Photosmart Express, Photo tray, Photo index, Layout, Print, OK) plus two select arrows |
| Exifprint supported | Yes, Version 2.2 |
| Maximum input capacity (photo paper) | 45 sheets |
| Maximum input capacity for 10 x 15 cm photographs | 20 sheets |
| Maximum output capacity (photo paper) | 25 sheets |
| Maximum output capacity for labels | 30 sheets |
| Maximum print length (imperial) | 24 in |
| Media sizes supported (imperial) | Letter, legal, executive, cards, No. 10 envelopes, photo (4 x 6 in, 5 x 7 in, 8 x 10 in), panoramic (4 x 12 in, 4 x 24 in), CD/DVD |
| Package dimensions (W x D x H) | 500.1 x 239.8 x 436.6 mm (19.7 x 9.44 x 17.2") |
| Pallet dimensions (W x D x H) (imperial) | 1219.2 x 1016 x 2347 mm (48 x 40 x 92.4") |
| Pallet weight (imperial) | 362.4 kg (799 lbs) |
| Photo proofsheets supported | Yes |
| Print speed (colour, draft quality, letter) | < 24 |
| Recommended media weight (imperial) | 16 to 24 lb |
| Skew | +/- 0.006 in |
| Skew (transparency) | +/- 0.012 in |
| Standard input capacity for legal | 125 sheets |
| Standard output capacity for labels | 10 sheets |
| Standard output capacity for legal | 65 sheets |
| Standard output capacity for transparencies | 50 sheets |
| SureSupply supported | Yes |
| Technical features | Versatile photo and document printing plus direct CD/DVD printing*. Print 10 x 15 cm photos in as fast as 26 secs, print documents at up to 31 ppm black/24 ppm colour. Numeric display and HP photo proof sheet allow selection of photos, size and quantity without a PC. Organise, enhance, remove red-ey |
| Video action printing supported | Yes |
| Vivera inks supported | Yes |
| Weight (imperial) | 10.9 lb |
