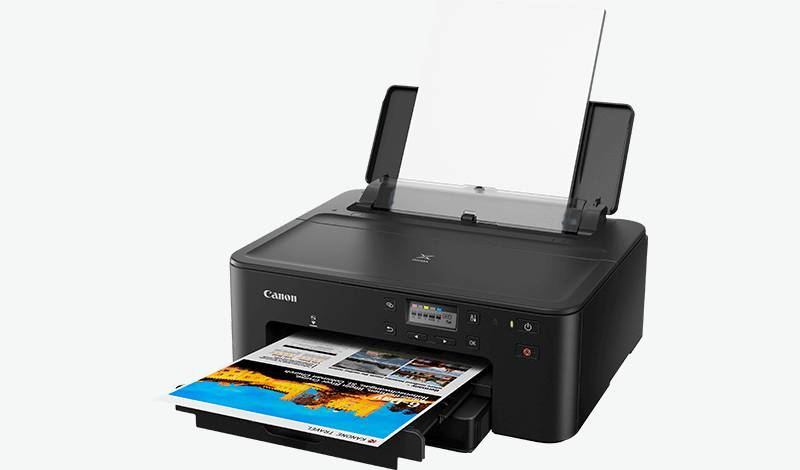

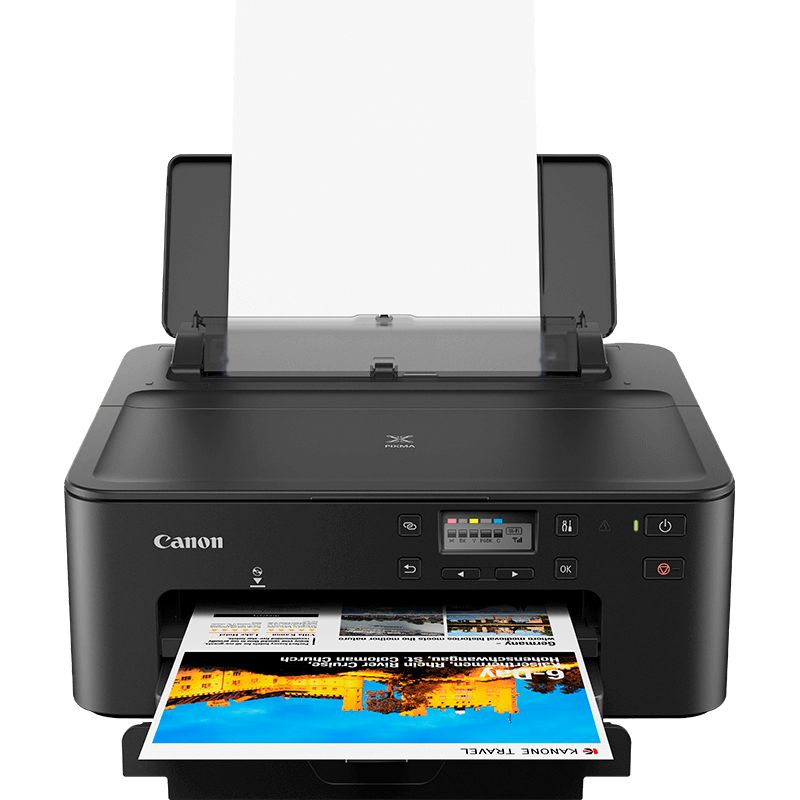

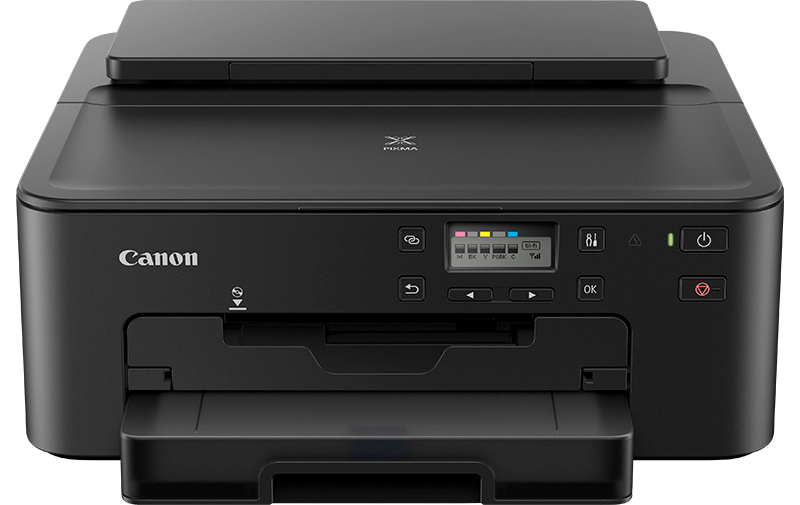

PIXMA TS704 inkjet printer Colour
4800 x 1200 DPI A4 Wi-Fi
Model TS704Part no. PIXMA TS704
54 specifications
- Resolution1024 x 768 pixels
- Weight5.4 kg
- ColourYes
- Maximum resolution4800 x 1200 DPI
- Total input capacity100 sheets
- Maximum ISO A-series paper sizeA4
Overview
- Resolution
- 1024 x 768 pixels
- Weight
- 5.4 kg
- Colour
- Yes
- Maximum resolution
- 4800 x 1200 DPI
- Total input capacity
- 100 sheets
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Inkjet Printer
- Model
- TS704
- Part numbers
- PIXMA TS704, 3109C027
- Also known as
- Canon PIXMA TS704 inkjet printer Colour 4800 x 1200 DPI A4 Wi-Fi
Specifications
54 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Colour | Yes |
| Number of print cartridges | 5 |
| Duplex printing | Yes |
| Printing colours | Black, Cyan, Magenta, Pigment black, Yellow |
| Ink tank system | Yes |
Printing
| Specification | Value |
|---|---|
| Maximum resolution | 4800 x 1200 DPI |
| Time to first page (black, normal) | 8 s |
| Time to first page (colour, normal) | 10 s |
| Print speed (ISO/IEC 24734) colour | 10 ipm |
| Print speed (ISO/IEC 24734) mono | 15 ipm |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 100 sheets |
| Maximum input capacity | 250 sheets |
| Paper input type | Cassette, Paper tray |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Art paper, Envelopes, Glossy paper, High resolution paper, Matte paper, Photo paper, Plain paper, Semi-glossy paper |
| ISO A-series sizes (A0...A9) | A4, A5 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | Legal, Letter |
| Envelopes sizes | Com-10, DL |
| Photo paper sizes (imperial) | 4x6,5x7,8x10 |
| Borderless printing media sizes | 8.9x8.9, 10x15, 13x18, 13x13, 20x25, A4 |
| Paper tray media weight | 64 - 300 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Direct printing | Yes |
| PictBridge | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi Direct | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Security algorithms | WEP, WPA, WPA-PSK |
| Mobile printing technologies | Apple AirPrint, Canon Easy-PhotoPrint, Google Cloud Print, Mopria Print Service, PIXMA Cloud Link |
Performance
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 50.5 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Display resolution | 1024 x 768 pixels |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 23 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.9 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.14 kWh/week |
| AC input voltage | 100 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 372 mm |
| Depth | 365 mm |
| Height | 158 mm |
| Weight | 5.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | AC |
