YHT-5960U home cinema system 5.1 channels
80 W Black
Model YHT-5960UPart no. YHT-5960UBL
44 specifications
- ColourBlack
- Optical disc player typeNot included
- Video upscalingYes
- Audio output channels5.1 channels
- Front speakers RMS power30 W
- Subwoofer RMS power50 W
Overview
- Colour
- Black
- Optical disc player type
- Not included
- Video upscaling
- Yes
- Audio output channels
- 5.1 channels
- Front speakers RMS power
- 30 W
- Subwoofer RMS power
- 50 W
- Brand
- Yamaha
- Category
- Home Cinema System
- Model
- YHT-5960U
- Part number
- YHT-5960UBL
- Also known as
- Yamaha YHT-5960U home cinema system 5.1 channels 80 W Black
Specifications
44 specifications in 14 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | Not included |
| Disc types supported | No |
Video
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| Video upscaling | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 80 W |
| Audio decoders | DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Audio formats supported | AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | AM, FM |
Front speakers
| Specification | Value |
|---|---|
| Front speakers RMS power | 30 W |
| Front speaker sensitivity | 83 dB |
| Front speaker peak power | 100 W |
Center speaker
| Specification | Value |
|---|---|
| Center speaker RMS power | 30 W |
| Center speaker sensitivity | 84 dB |
| Center speaker peak power | 100 W |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer RMS power | 50 W |
| Subwoofer driver diameter (imperial) | 20.3 cm (8") |
| Subwoofer frequency range | 28 - 200 Hz |
| Subwoofer impedance | 5 Ω |
| Subwoofer peak power | 100 W |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |

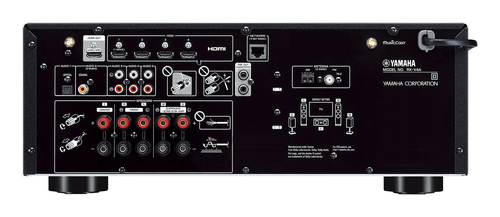

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 5 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 1 |
| Audio (L/R) in | 3 |
| Digital audio coaxial in | 1 |
| Digital audio optical in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Main unit weight | 8.8 kg |
| Front speaker weight | 590 g |
| Center speaker weight | 730 g |
| Subwoofer weight | 8.48 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| Karaoke | No |
