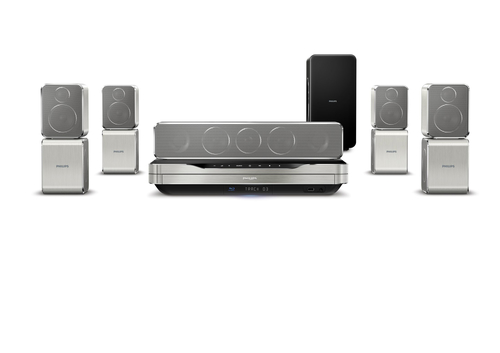

5.1 Home theater HTS9520/98
Model HTS9520/98EAN 8712581520878
117 specifications
- Power125 W
- Weight4.2 g
- ColourBlack, Silver
- Optical disc player typeBlu-Ray player
- 3DYes
- Audio output channels5.1 channels
Overview
- Power
- 125 W
- Weight
- 4.2 g
- Colour
- Black, Silver
- Optical disc player type
- Blu-Ray player
- 3D
- Yes
- Audio output channels
- 5.1 channels
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTS9520/98
- Part number
- HTS9520/98
- EAN / UPC
- 8712581520878
- Also known as
- Philips 5.1 Home theater HTS9520/98
Specifications
117 specifications in 15 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | Blu-Ray player |
| Disc types supported | BD, BD-R, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Playback disc formats | SVCD, VCD |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Video formats supported | ASF, AVCHD, AVI, DIVX, MKV, MP4, MPEG, MPEG4, WMV |
| Full HD | Yes |
| Analog signal format system | NTSC, PAL |
| Progressive scan | Yes |
| Video upscaling | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 800 W |
| Audio decoders | DTS, DTS-HD HR, Dolby Digital 5.1, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Audio formats supported | AAC, MP3, WAV, WMA |
| Equalizer | Yes |
| Sound enhancement technology | Yes |
| MP3 bit rates | 112 - 320 Kbit/s |
| WMA bit rates | 48 - 192 Kbit/s |
| Audio Return Channel (ARC) | Yes |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | FM |
| Radio Data System (RDS) | Yes |
| Preset stations quantity | 40 |
Center speaker
| Specification | Value |
|---|---|
| Center speaker type | 2.5-way |
| Center speaker frequency range | 150 - 20000 Hz |
| Center speaker impedance | 4 Ω |
| Center speaker tweeter diameter | 2.54 cm (1") |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speaker frequency range | 150 - 20000 Hz |
| Satellite speaker impedance | 6 Ω |
| Satellite speaker tweeter diameter | 2.54 cm (1") |
| Satellite speaker mid-range driver diameter | 6.35 cm (2.5") |
| Satellite speaker woofer diameter (imperial) | 6.35 cm (2.5") |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Subwoofer driver diameter (imperial) | 16.5 cm (6.5") |
| Subwoofer frequency range | 20 - 150 Hz |
| Subwoofer impedance | 4 Ω |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| SCART ports quantity | 0 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| S-Video outputs quantity | 0 |
| AUX in | No |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 0 |
| Digital audio optical in | 1 |
| Digital audio optical out | 0 |
| FM antenna | Yes |
| HDMI version | 1.4 |
| Front / Side connections | MP3 Link, USB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 125 W |
| AC input frequency | 50-60 Hz |
| AC input voltage | 220-240 V |
| Power consumption (standby) | 0.22 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Main unit dimensions (WxDxH) | 437 x 342 x 75 mm |
| Main unit weight | 4.5 kg |
| Front speaker dimensions (WxDxH) | 247 x 117 x 99 mm |
| Front speaker weight | 1.17 kg |
| Center speaker dimensions (WxDxH) | 85 x 117 x 435 mm |
| Center speaker weight | 1.67 kg |
| Subwoofer dimensions (W x D x H) | 404 x 342 x 195 mm |
| Subwoofer weight | 6.4 kg |
| Rear speaker weight | 1.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 560 mm |
| Package depth | 400 mm |
| Package height | 554 mm |
| Package weight | 23.5 kg |
| Package dimensions (WxDxH) | 560 x 554 x 400 mm |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking | Yes |
| Apple docking compatibility | iPhone, iPod |
| Built-in HDD | No |
| TV tuner integrated | No |
| AirPlay | No |
| Center speaker depth | 11.7 cm |
| Center speaker height | 8.5 cm |
| Center speaker width | 43.5 cm |
| Centre speaker dimensions (WxHxD) | 435 x 85 x 111 mm |
| Centre speaker driver diameter | 2.54 cm (1") |
| Channels quantity | 40 channels |
| Deep colour support | Yes |
| Depth | 342 mm |
| Front speaker depth | 11.7 cm |
| Front speaker height | 24.7 cm |
| Front speaker width | 9.9 cm |
| Height | 75 mm |
| Image formats supported | GIF, JPEG, JPG, PNG |
| Number of batteries supported | 2 |
| Rear speaker depth | 11.7 cm |
| Rear speaker height | 24.7 cm |
| Rear speaker width | 9.9 cm |
| Satellite speaker driver diameter | 5.08 cm (2") |
| Subwoofer depth | 34.2 cm |
| Subwoofer height | 40.4 cm |
| Subwoofer width | 19.5 cm |
| Video compression formats | AVCHD, DivX Ultra, MPEG1, MPEG2, MPEG4 |
| Weight | 4.2 g |
| Width | 437 mm |
| Wireless ready | Yes |
| Subwoofer dimensions (WxHxD) | 196 x 397 x 342 mm |
| Set weight | 4.2 g |
| Set width | 43.7 cm |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Karaoke | No |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Night mode | Yes |
| Playback modes | Rotation, Slideshow, Zoom |
| Power | 125 W |
