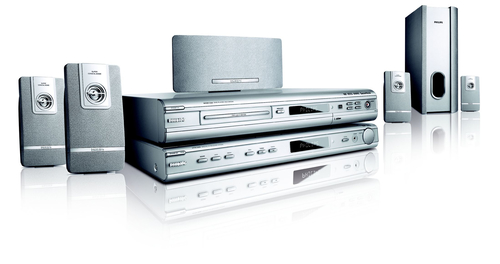

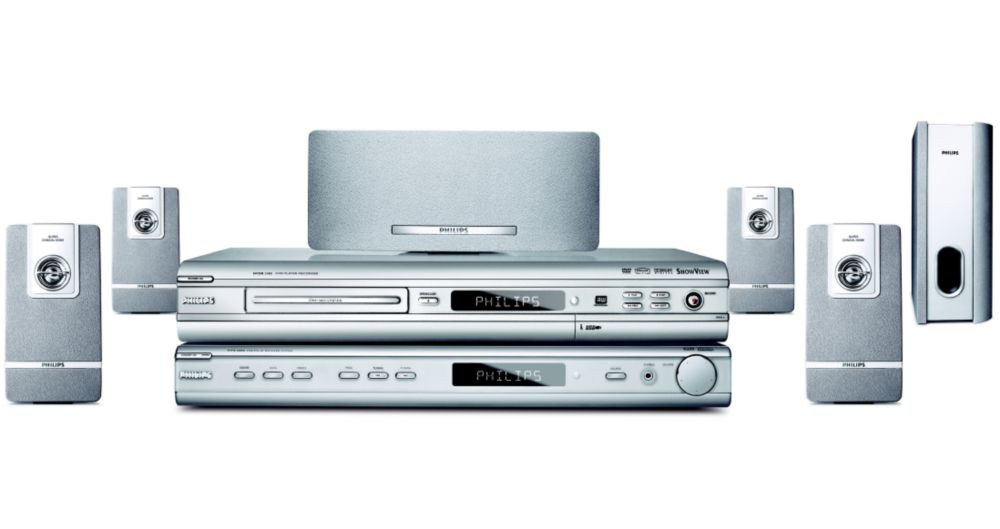

HTS5700R/12 home cinema system
700 W White
Model HTS5700R/12EAN 8710895905350
121 specifications
- ColourWhite
- Optical disc player typeDVD recorder
- 3DNo
- RMS rated power700 W
- FM radioYes
- Center speaker type2-way
Overview
- Colour
- White
- Optical disc player type
- DVD recorder
- 3D
- No
- RMS rated power
- 700 W
- FM radio
- Yes
- Center speaker type
- 2-way
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTS5700R/12
- Part number
- HTS5700R/12
- EAN / UPC
- 8710895905350
- Also known as
- Philips HTS5700R/12 home cinema system 700 W White
Specifications
121 specifications in 17 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | DVD recorder |
| Disc types supported | CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Number of optical discs | 1 discs |
| Playback disc formats | CD audio, CD video, SVCD, VCD |
Video
| Specification | Value |
|---|---|
| 3D | No |
| Video formats supported | DIVX, MPEG1, MPEG2, MPEG4 |
| Video D/A Converter (DAC) | 10-bit/54MHz |
| Analog signal format system | PAL, SECAM |
| Aspect ratio | 4:3, 16:9 |
| Movie modes | Action, Concert, Drama, Science Fiction |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 700 W |
| Audio decoders | Dolby Digital, DTS |
| Audio D/A Converter (DAC) | 24-bit/96kHz |
| Signal-to-Noise Ratio (SNR) | 60 dB |
| Audio formats supported | MP3, PCM |
| Equalizer | Yes |
| Sound enhancement technology | Yes |
| MP3 bit rates | 32 - 256 Kbit/s |
| Frequency response CD | 150 - 20000 Hz |
| Frequency response DVD | 150 - 20000 Hz |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | FM, MW |
| Radio Data System (RDS) | Yes |
| Preset stations quantity | 40 |
Center speaker
| Specification | Value |
|---|---|
| Center speaker type | 2-way |
| Center speaker frequency range | 140 - 20000 Hz |
| Center speaker impedance | 3 Ω |
| Center speaker tweeter diameter | 2.54 cm (1") |
| Center speaker woofer diameter (imperial) | 7.62 cm (3") |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speaker type | 2-way |
| Satellite speaker frequency range | 140 - 20000 Hz |
| Satellite speaker impedance | 3 Ω |
| Satellite speaker tweeter diameter | 2.54 cm (1") |
| Satellite speaker woofer diameter (imperial) | 7.62 cm (3") |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Wireless subwoofer | No |
| Subwoofer frequency range | 40 - 140 Hz |
| Subwoofer impedance | 3 Ω |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Management features
| Specification | Value |
|---|---|
| Programming period | 30 day(s) |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 0 |
| Number of HDMI outputs | 0 |
| SCART ports quantity | 2 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Composite video in | 1 |
| Composite video out | 1 |
| S-Video inputs quantity | 1 |
| S-Video outputs quantity | 1 |
| AUX in | Yes |
| Audio (L/R) in | 1 |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 1 |
| Digital audio optical in | 1 |
| Digital audio optical out | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| FM antenna | Yes |
| Headphone outputs | 1 |
| MW antenna | Yes |
Display
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 205 W |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240 V |
| Power consumption (standby) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Center speaker dimensions (WxDxH) | 220 x 75 x 95 mm |
| Subwoofer dimensions (W x D x H) | 130 x 360 x 340 mm |
| Receiver dimensions (WxDxH) | 435 x 359 x 53 mm |
| Receiver weight | 4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 651 mm |
| Package depth | 456 mm |
| Package height | 475 mm |
| Package weight | 23 kg |
| Package dimensions (WxDxH) | 651 x 456 x 475 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), Coaxial, SCART |
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking compatibility | Not supported |
| Built-in HDD | No |
| TV tuner integrated | Yes |
| Antenna | 75 ohm coaxial (IEC75) |
| Audio input | iLINK |
| Audio system | Stereo |
| Auto digital tuning | Yes |
| CD-RW playback | Yes |
| Center speaker depth | 7.5 cm |
| Center speaker height | 9.5 cm |
| Center speaker width | 22 cm |
| Crosstalk (1kHz) | 35 dB |
| DVD recorder | Yes |
| Depth | 285 mm |
| Dimensions (WxDxH) | 435 x 285 x 65 mm |
| Distortion and noise (1kHz) | 65 dB |
| Dynamic range (1kHz) | 85 dB |
| Height | 65 mm |
| MP3 playback | Yes |
| Number of TV tuners | 1 |
| Number of products included | 1 pc(s) |
| Programmable events | 8 |
| Recording media | DVD+R, DVD+RW, DVD-R, DVD-RW |
| Subwoofer depth | 36 cm |
| Subwoofer height | 34 cm |
| Subwoofer width | 13 cm |
| Surround speaker depth | 6.5 cm |
| Surround speaker dimensions (WxHxD) | 95 x 65 x 175 mm |
| Surround speaker height | 17.5 cm |
| Surround speaker width | 9.5 cm |
| Tuner enhancements | Auto store, Auto tuning |
| Tuner type | Analog |
| Video compression formats | DivX, MPEG1, MPEG2, MPEG4 |
| Video recording speed modes | EP, HQ, SLP, SP |
| Width | 435 mm |
| Set weight | 5 kg |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |
| Karaoke | No |
| USB direct playback | Yes |
| Playback modes | Rotation, Slideshow |
| Slideshow | Yes |
| TV-in port | Yes |
