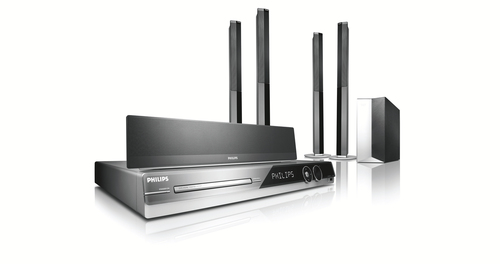

HTS3548W/55 home cinema system 5.1 channels
1000 W Black
Model HTS3548W/55EAN 8712581321741
110 specifications
- Weight4.04 kg
- ColourBlack
- Optical disc player typeDVD player
- 3DNo
- Audio output channels5.1 channels
- FM radioYes
Overview
- Weight
- 4.04 kg
- Colour
- Black
- Optical disc player type
- DVD player
- 3D
- No
- Audio output channels
- 5.1 channels
- FM radio
- Yes
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTS3548W/55
- Part number
- HTS3548W/55
- EAN / UPC
- 8712581321741
- Also known as
- Philips HTS3548W/55 home cinema system 5.1 channels 1000 W Black
Specifications
110 specifications in 16 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | DVD player |
| Disc types supported | CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Playback disc formats | CD audio, CD video, DVD-Video, SVCD |
Video
| Specification | Value |
|---|---|
| 3D | No |
| Video formats supported | DIVX, MPEG1, MPEG2 |
| Video D/A Converter (DAC) | 12-bit/108MHz |
| Analog signal format system | NTSC, PAL |
| Movie modes | Action, Concert, Drama |
| Progressive scan | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 1000 W |
| Audio decoders | DTS, Dolby Digital, Dolby Pro Logic II |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Audio formats supported | MP3, WMA |
| Equalizer | Yes |
| MP3 bit rates | 32 - 256 Kbit/s |
| Frequency response DVD | 180 - 14000 Hz |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | AM, FM |
| Preset stations quantity | 40 |
Center speaker
| Specification | Value |
|---|---|
| Center speaker type | 3-way |
| Center speaker frequency range | 150 - 20000 Hz |
| Center speaker impedance | 3 Ω |
| Center speaker tweeter diameter | 5.08 cm (2") |
| Center speaker woofer diameter (imperial) | 12.7 cm (5") |
Satellite speakers
| Specification | Value |
|---|---|
| Number of satellite speakers | 4 |
| Satellite speaker frequency range | 150 - 20000 Hz |
| Satellite speaker impedance | 6 Ω |
| Satellite speaker woofer diameter (imperial) | 7.62 cm (3") |
| Wireless satellite speakers | Yes |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Wireless subwoofer | Yes |
| Subwoofer driver diameter (imperial) | 20.3 cm (8") |
| Subwoofer frequency range | 40 - 150 Hz |
| Subwoofer impedance | 8 Ω |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Wi-Fi ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 0 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| S-Video outputs quantity | 1 |
| AUX in | Yes |
| Digital audio coaxial in | 2 |
| FM antenna | Yes |
| MW antenna | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 120 - 230 V |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Main unit dimensions (WxDxH) | 435 x 310 x 55 mm |
| Main unit weight | 4.04 kg |
| Center speaker dimensions (WxDxH) | 435 x 67 x 93.5 mm |
| Center speaker weight | 1.45 kg |
| Satellite speaker dimensions (WxDxH) | 95 x 73.5 x 1184 mm |
| Satellite speaker weight | 3.6 kg |
| Subwoofer dimensions (W x D x H) | 159.5 x 370 x 355.5 mm |
| Subwoofer weight | 4.78 kg |
| Receiver dimensions (WxDxH) | 126 x 126 x 131.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 924 mm |
| Package depth | 420 mm |
| Package height | 584 mm |
| Package weight | 3.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Cables included | AC, Composite, HDMI |
| Manual | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking | No |
| Built-in HDD | No |
| AirPlay | No |
| Center speaker depth | 6.7 cm |
| Center speaker height | 9.35 cm |
| Center speaker width | 43.5 cm |
| Depth | 126 mm |
| Game mode | Yes |
| Height | 131.5 mm |
| Image formats supported | JPEG |
| Receiver depth | 12.6 cm |
| Receiver height | 13.2 cm |
| Receiver width | 12.6 cm |
| Sound modes | Game, Movie, Music, News |
| Subwoofer depth | 37 cm |
| Subwoofer height | 35.5 cm |
| Subwoofer width | 15.9 cm |
| Surround speaker depth | 7.35 cm |
| Surround speaker height | 1.184 mm |
| Surround speaker weight | 3.6 kg |
| Surround speaker width | 9.5 cm |
| Transmitter depth | 4.9 cm |
| Transmitter height | 8.83 cm |
| Transmitter width | 4.85 cm |
| Video compression formats | DivX, DivX Ultra, MPEG1, MPEG2 |
| Weight | 4.04 kg |
| Width | 126 mm |
| Picture enhancement | High Def (720p, 1080i) |
| Set weight | 4.04 kg |
| Set width | 43.5 cm |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| Equalizer modes | Game, Jazz, Lounge, RnB, Rock |
| Frequency range | 180 - 14000 Hz |
| Night mode | Yes |
| Playback modes | Rotation, Slideshow, Zoom |
| TV-in port | Yes |
