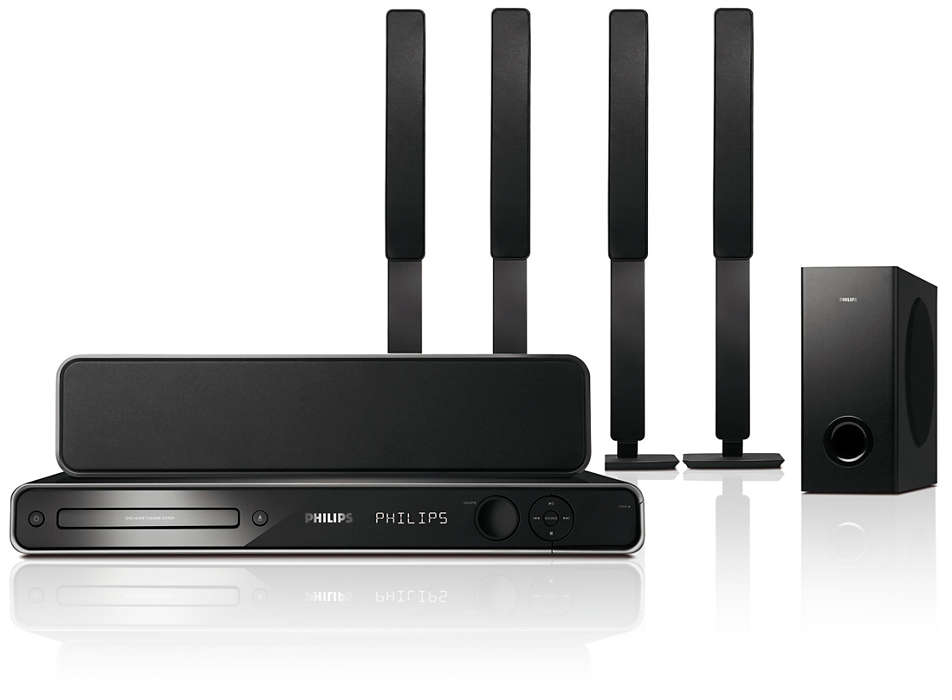

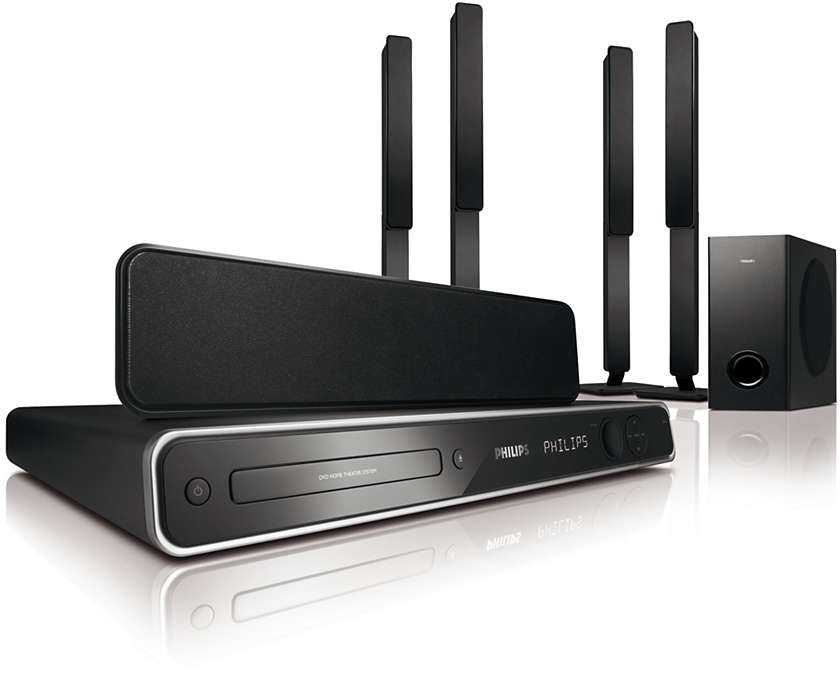

HTS3568/12 home cinema system 5.1 channels
1000 W Black
Model HTS3568/12EAN 8712581452681
112 specifications
- Power180 W
- Weight3.75 g
- ColourBlack
- Optical disc player typeDVD player
- Video formats supportedMPEG1, MPEG2, MPEG4, WMV
- Audio output channels5.1 channels
Overview
- Power
- 180 W
- Weight
- 3.75 g
- Colour
- Black
- Optical disc player type
- DVD player
- Video formats supported
- MPEG1, MPEG2, MPEG4, WMV
- Audio output channels
- 5.1 channels
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTS3568/12
- Part number
- HTS3568/12
- EAN / UPC
- 8712581452681
- Also known as
- Philips HTS3568/12 home cinema system 5.1 channels 1000 W Black
Specifications
112 specifications in 17 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | DVD player |
| Disc types supported | CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Playback disc formats | CD video, DVD-Video, SVCD |
Video
| Specification | Value |
|---|---|
| Video formats supported | MPEG1, MPEG2, MPEG4, WMV |
| Video D/A Converter (DAC) | 12-bit/108MHz |
| Analog signal format system | NTSC, PAL |
| Movie modes | Action, Concert, Drama |
| Progressive scan | Yes |
| Video upscaling | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 1000 W |
| Audio decoders | DTS, Dolby Digital, Dolby Pro Logic II |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Audio formats supported | MP3, WMA |
| Equalizer | Yes |
| MP3 bit rates | 32 - 256 Kbit/s |
| Frequency response DVD | 180 - 14000 Hz |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Radio Data System (RDS) | Yes |
| Preset stations quantity | 40 |
Center speaker
| Specification | Value |
|---|---|
| Center speaker RMS power | 250 W |
| Center speaker frequency range | 150 - 20000 Hz |
| Center speaker impedance | 3 Ω |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speakers RMS power | 500 W |
| Number of satellite speakers | 4 |
| Satellite speaker frequency range | 150 - 20000 Hz |
| Satellite speaker impedance | 6 Ω |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Subwoofer RMS power | 250 W |
| Subwoofer driver diameter (imperial) | 20.3 cm (8") |
| Subwoofer frequency range | 40 - 150 Hz |
| Subwoofer impedance | 3 Ω |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI in | 0 |
| Number of HDMI outputs | 1 |
| SCART ports quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| S-Video outputs quantity | 1 |
| AUX in | Yes |
| Digital audio optical in | 1 |
| FM antenna | Yes |
| Front / Side connections | Hi-Speed, USB MP3 Line-in |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 180 W |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Front speaker dimensions (WxDxH) | 262 x 264 x 1199 mm |
| Front speaker weight | 3.29 kg |
| Center speaker dimensions (WxDxH) | 440 x 71 x 105 mm |
| Center speaker weight | 1.29 kg |
| Subwoofer dimensions (W x D x H) | 163 x 369 x 363 mm |
| Subwoofer weight | 5.08 kg |
| Rear speaker weight | 3.29 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 765 mm |
| Package depth | 410 mm |
| Package height | 620 mm |
| Package weight | 2.65 kg |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Cables included | SCART |
| Manual | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| AirPlay | No |
| Audio system | DTS, Dolby Digital, Dolby Prologic II, Stereo |
| Center speaker depth | 7.1 cm |
| Center speaker height | 10.5 cm |
| Center speaker width | 44 cm |
| Centre speaker driver diameter | 2.54 cm (1") |
| Depth | 36.5 mm |
| Front speaker depth | 26.4 cm |
| Front speaker height | 119.9 cm |
| Front speaker width | 26.2 cm |
| Height | 5.7 mm |
| Image formats supported | JPEG |
| Number of products included | 1 pc(s) |
| Quantity | 1 |
| Rear speaker depth | 26.4 cm |
| Rear speaker height | 119.9 cm |
| Rear speaker width | 26.2 cm |
| Satellite speaker driver diameter | 7.62 cm (3") |
| Subwoofer depth | 36.9 cm |
| Subwoofer height | 36.3 cm |
| Subwoofer width | 16.3 cm |
| Video compression formats | DivX, DivX Ultra, MPEG1, MPEG2, MPEG4, WMV |
| Weight | 3.75 g |
| Width | 43.5 mm |
| Packaging net weight | 25.4 kg |
| Packaging tare weight | 3.4 kg |
| Picture enhancement | High Def (720p, 1080i, 1080p) |
| Set width | 43.5 cm |
Outer carton
| Specification | Value |
|---|---|
| Gross weight of outer carton | 28.8 kg |
| Height (cm) outer carton | 62 cm |
| Length (cm) outer carton | 76.5 cm |
| Net weight of outer carton | 25.4 kg |
| Quantity outer carton | 1 pc(s) |
| Tare weight outer carton | 3.4 kg |
| Width (cm) outer carton | 41 cm |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| Equalizer modes | Classic, Rock |
| Frequency range | 180 - 14000 Hz |
| Night mode | Yes |
| Playback modes | Rotation, Slideshow, Zoom |
| Power | 180 W |
| Slideshow | Yes |
