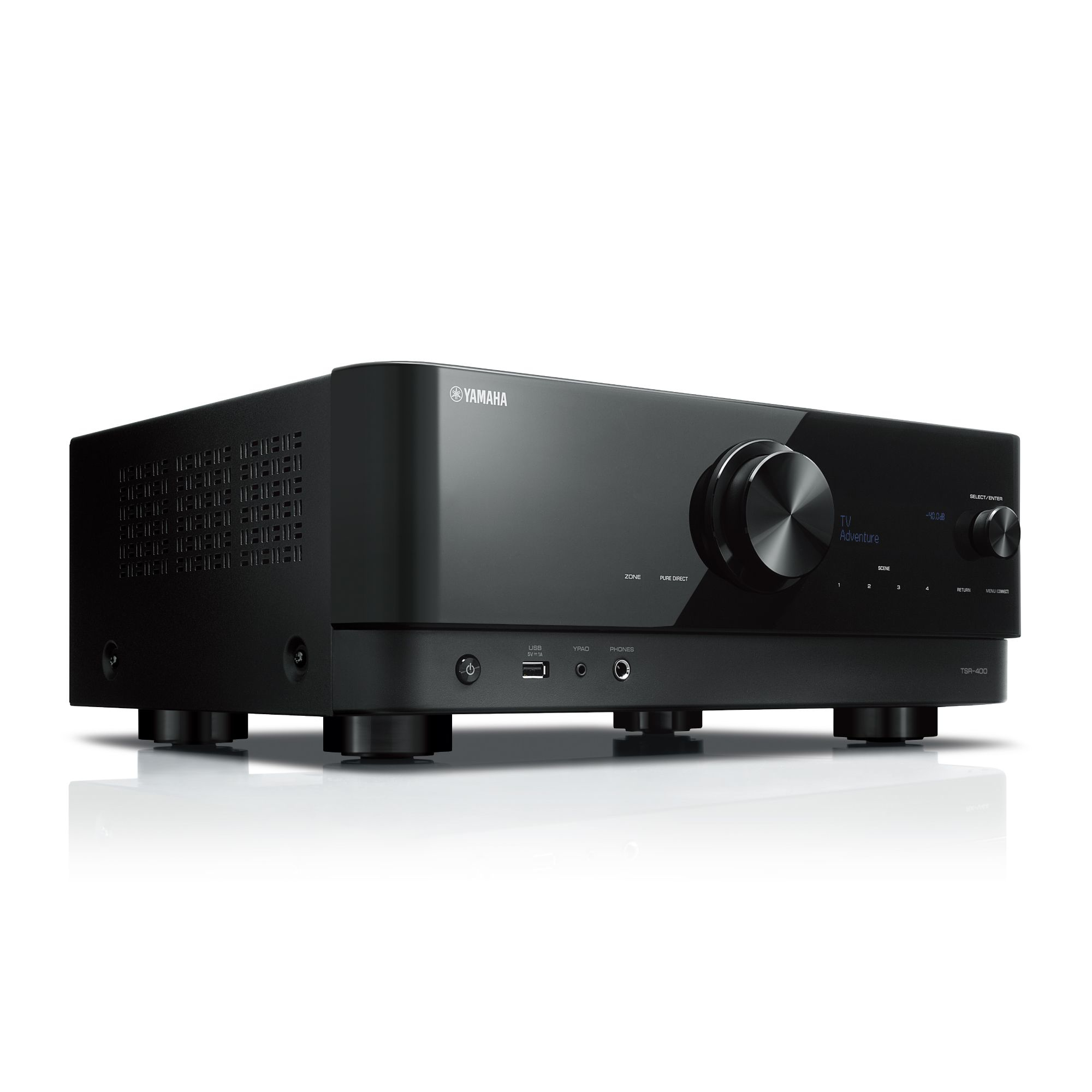

YHT-4960 home cinema system 5.2 channels
150 W Black
Model YHT-4960Part no. YHT-4960-BLEAN 4013175229998
56 specifications
- ColourBlack
- Optical disc player typeNot included
- Video D/A Converter (DAC)32-bit/384 kHz
- Audio output channels5.2 channels
- FM radioYes
- Front speakers RMS power100 W
Overview
- Colour
- Black
- Optical disc player type
- Not included
- Video D/A Converter (DAC)
- 32-bit/384 kHz
- Audio output channels
- 5.2 channels
- FM radio
- Yes
- Front speakers RMS power
- 100 W
- Brand
- Yamaha
- Category
- Home Cinema System
- Model
- YHT-4960
- Part number
- YHT-4960-BL
- EAN / UPC
- 4013175229998
- Also known as
- Yamaha YHT-4960 home cinema system 5.2 channels 150 W Black
Specifications
56 specifications in 15 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | Not included |
| Disc types supported | No |
Video
| Specification | Value |
|---|---|
| Video D/A Converter (DAC) | 32-bit/384 kHz |
| Video upscaling | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.2 channels |
| RMS rated power | 150 W |
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Audio formats supported | AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA |
| Sound enhancement technology | Yes |
| Audio Return Channel (ARC) | Yes |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | AM, DAB, FM |
Front speakers
| Specification | Value |
|---|---|
| Front speakers RMS power | 100 W |
| Front speaker frequency range | 28 - 25000 Hz |
| Front speaker sensitivity | 83 dB |
| Front speaker impedance | 6 Ω |
| Front speaker tweeter diameter | 6.98 cm (2.75") |
| Front speakers wall mountable | Yes |
Center speaker
| Specification | Value |
|---|---|
| Center speaker RMS power | 100 W |
| Center speaker frequency range | 28 - 25000 Hz |
| Center speaker sensitivity | 84 dB |
| Center speaker tweeter diameter | 6.98 cm (2.75") |
| Center speaker wall mountable | Yes |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speakers RMS power | 100 W |
| Satellite speaker frequency range | 28 - 25000 Hz |
| Satellite speaker sensitivity | 83 dB |
| Satellite speaker tweeter diameter | 6.98 cm (2.75") |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer RMS power | 100 W |
| Subwoofer driver diameter (imperial) | 20.3 cm (8") |
| Subwoofer frequency range | 28 - 200 Hz |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |

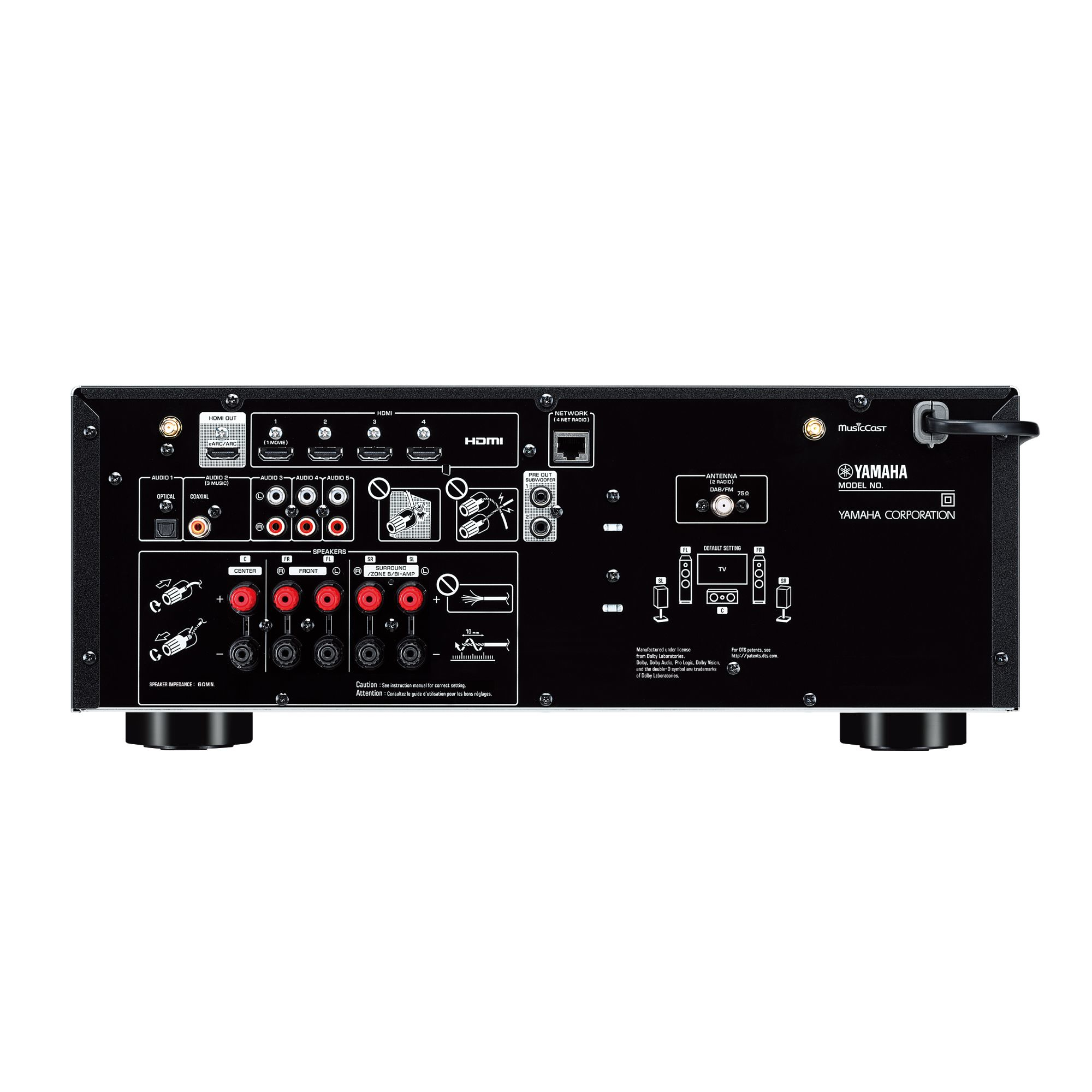

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 7 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 1 |
| Audio (L/R) in | 4 |
| Digital audio coaxial in | 1 |
| Digital audio optical in | 1 |
| Headphone outputs | 1 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Auto power off | Yes |
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Main unit dimensions (WxDxH) | 435 x 377 x 171 mm |
| Main unit weight | 9.8 kg |
| Front speaker dimensions (WxDxH) | 176 x 116 x 112 mm |
| Front speaker weight | 590 g |
| Center speaker dimensions (WxDxH) | 111 x 118 x 276 mm |
| Center speaker weight | 730 g |
| Satellite speaker dimensions (WxDxH) | 176 x 116 x 112 mm |
| Satellite speaker weight | 590 g |
| Subwoofer dimensions (W x D x H) | 292 x 341 x 291 mm |
| Subwoofer weight | 8.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
