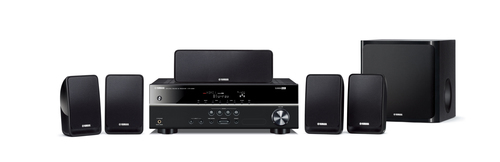

Yamaha YHT-196 home cinema system 5.1 channels

600 W 3D Black

Model YHT-196Part no. YHT196BEAN 4957812499613

72 specifications

ColourBlack
Optical disc player typeNot included
3DYes
Audio output channels5.1 channels
Front speakers RMS power200 W
Center speaker RMS power100 W

See all specifications

Overview

Colour: Black
Optical disc player type: Not included
3D: Yes
Audio output channels: 5.1 channels
Front speakers RMS power: 200 W
Center speaker RMS power: 100 W

Brand: Yamaha
Category: Home Cinema System
Model: YHT-196
Part numbers: YHT196B, YHT-196BL
EAN / UPC: 4957812499613
Also known as: Yamaha YHT-196 home cinema system 5.1 channels 600 W 3D Black

Specifications

72 specifications in 16 groups

Optical drive

Specification	Value
Optical disc player type	Not included
Disc types supported	No

Video

Specification	Value
3D	Yes

Audio

Specification	Value
Audio output channels	5.1 channels
RMS rated power	600 W
Audio decoders	Dolby Digital, DTS
Audio D/A Converter (DAC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.06%
Audio Return Channel (ARC)	Yes

Radio

Specification	Value
FM radio	Yes
Supported radio bands	FM

Front speakers

Specification	Value
Front speakers RMS power	200 W
Front speaker sensitivity	83 dB
Front speaker impedance	6 Ω
Front speaker woofer diameter (imperial)	6.98 cm (2.75")

Center speaker

Specification	Value
Center speaker RMS power	100 W
Center speaker sensitivity	84 dB
Center speaker impedance	6 Ω
Center speaker woofer diameter (imperial)	6.98 cm (2.75")

Satellite speakers

Specification	Value
Satellite speakers RMS power	400 W
Number of satellite speakers	4
Satellite speaker frequency range	30 - 25000 Hz
Satellite speaker impedance	6 Ω
Satellite speaker sensitivity	83 dB
Satellite speaker woofer diameter (imperial)	6.98 cm (2.75")

Subwoofer

Specification	Value
Subwoofer RMS power	100 W
Wireless subwoofer	No
Subwoofer driver diameter (imperial)	16.5 cm (6.5")

Network

Specification	Value
Wi-Fi	No

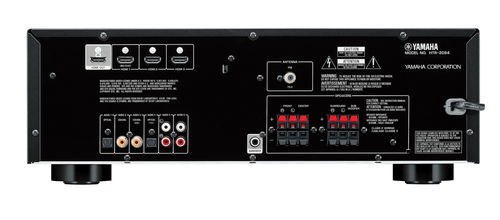

Ports & interfaces

Specification	Value
HDMI in	3
Number of HDMI outputs	1
SCART ports quantity	0
Component video (YPbPr/YCbCr) out	0
S-Video outputs quantity	0
Audio (L/R) in	2
Digital audio coaxial in	2
Digital audio coaxial out	0
Digital audio optical in	2
Digital audio optical out	0
Ethernet LAN (RJ-45) ports	0
Headphone outputs	1

Power

Specification	Value
Power consumption (standby)	0.5 W

Weight & dimensions

Specification	Value
Main unit dimensions (WxDxH)	435 x 315 x 151 mm
Front speaker dimensions (WxDxH)	115 x 88 x 176 mm
Front speaker weight	480 g
Center speaker dimensions (WxDxH)	291 x 103 x 101 mm
Center speaker weight	680 g
Satellite speaker dimensions (WxDxH)	115 x 88 x 176 mm
Satellite speaker weight	480 g
Subwoofer dimensions (W x D x H)	262 x 287 x 264 mm
Subwoofer weight	5.2 kg

Packaging content

Specification	Value

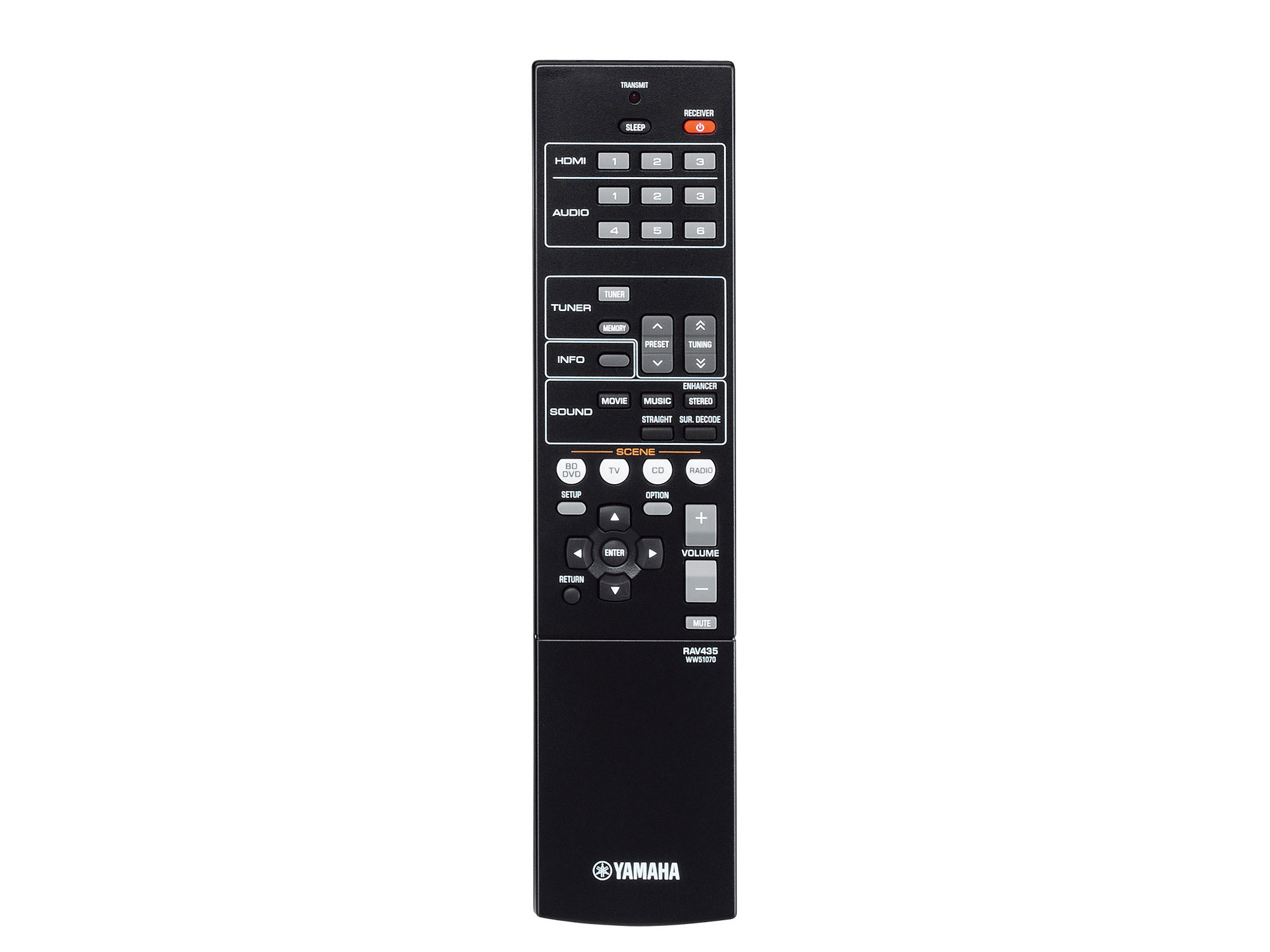

Remote control included	Yes

Other features

Specification	Value
Apple docking compatibility	Not supported
Built-in HDD	No
Center speaker depth	10.3 cm
Center speaker height	10.1 cm
Center speaker width	29.1 cm
Deep colour support	Yes
Front speaker depth	8.8 cm
Front speaker height	17.6 cm
Front speaker width	11.5 cm
Subwoofer depth	28.7 cm
Subwoofer height	26.4 cm
Subwoofer width	26.2 cm
Surround speaker depth	8.8 cm
Surround speaker height	17.6 cm
Surround speaker width	11.5 cm
x.v.Color support	Yes

Certificates

Specification	Value
Consumer Electronics Control (CEC)	Anynet+

Technical details

Specification	Value
Product colour	Black
Karaoke	No
