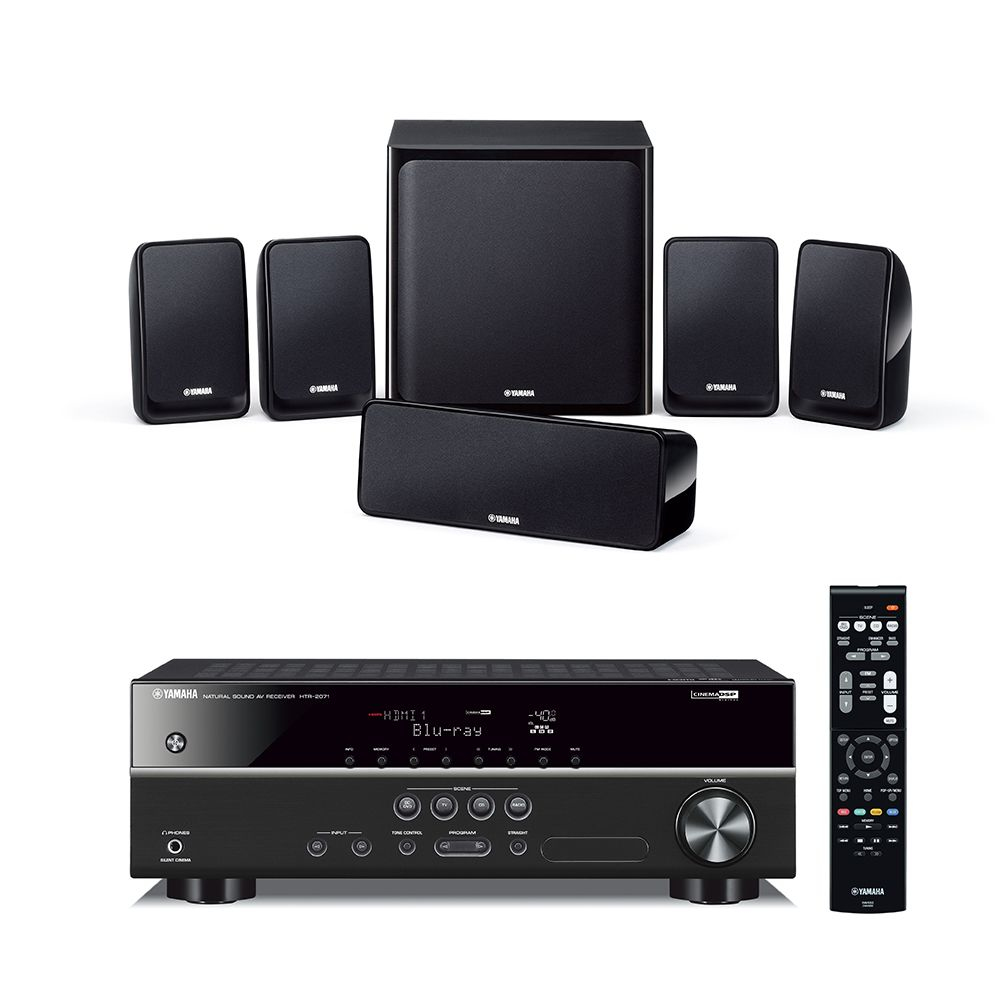

YHT-1940 home cinema system 5.1 channels 3D Black

YHT-1940 home cinema system 5.1 channels 3D Black

Model YHT-1940Part no. APK YHT-1940EU BLEAN 4013175229073

99 specifications

ColourBlack
Optical disc player typeNot included
3DYes
Audio output channels5.1 channels
Front speaker type2-way
Subwoofer typeActive subwoofer

See all specifications

Overview

Colour: Black
Optical disc player type: Not included
3D: Yes
Audio output channels: 5.1 channels
Front speaker type: 2-way
Subwoofer type: Active subwoofer

Brand: Yamaha
Category: Home Cinema System
Model: YHT-1940
Part number: APK YHT-1940EU BL
EAN / UPC: 4013175229073
Also known as: Yamaha YHT-1940 home cinema system 5.1 channels 3D Black

Specifications

99 specifications in 18 groups

Optical drive

Specification	Value
Optical disc player type	Not included
Disc types supported	No

Video

Specification	Value
3D	Yes
Full HD	Yes
Video upscaling	Yes

Audio

Specification	Value
Audio output channels	5.1 channels
Audio decoders	DTS, DTS-HD, Dolby Digital, Dolby Digital Plus, Dolby Surround
Audio D/A Converter (DAC)	24-bit/192kHz
Total Harmonic Distortion (THD)	0.09%
Equalizer	Yes
Sound enhancement technology	Yes
Audio Return Channel (ARC)	Yes
Number of speakers	5
Surround modes quantity	17

Radio

Specification	Value
FM radio	Yes
Supported radio bands	FM
Radio Data System (RDS)	Yes
RDS features	PLL
Preset stations quantity	40

Front speakers

Specification	Value
Front speaker type	2-way
Front speakers RMS power	60 W
Front speaker impedance	6 Ω
Front speaker peak power	100 W
Front speakers wall mountable	Yes

Center speaker

Specification	Value
Center speaker type	2-way
Center speaker RMS power	30 W
Center speaker impedance	6 Ω
Center speaker peak power	100 W
Center speaker wall mountable	Yes

Satellite speakers

Specification	Value
Satellite speaker type	2-way
Satellite speakers RMS power	60 W
Number of satellite speakers	2
Satellite speaker impedance	6 Ω
Satellite speaker peak power	100 W
Wireless satellite speakers	No

Subwoofer

Specification	Value
Subwoofer type	Active subwoofer
Subwoofer RMS power	30 W
Wireless subwoofer	No
Subwoofer impedance	6 Ω
Subwoofer peak power	100 W
Bass adjustment	Yes

Network

Specification	Value
Bluetooth	No
Ethernet LAN	No
Wi-Fi	No

Management features

Specification	Value
Sleep timer	Yes

Ports & interfaces

Specification	Value
HDMI in	4
Number of HDMI outputs	1
SCART ports quantity	0
USB ports quantity	0
Component video (YPbPr/YCbCr) out	0
S-Video outputs quantity	0
AUX in	Yes
Audio (L/R) in	1
Digital audio coaxial in	2
Digital audio coaxial out	0
Digital audio optical in	1
Digital audio optical out	0
Headphone outputs	1

Display

Specification	Value
Built-in display	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Dutch, English, Spanish, French, Italian, Japanese, Russian

Power

Specification	Value
Auto power off	Yes
Power consumption (standby)	0.3 W

Weight & dimensions

Specification	Value
Main unit dimensions (WxDxH)	435 x 315 x 151 mm
Main unit weight	7.4 kg
Front speaker dimensions (WxDxH)	115 x 88 x 176 mm
Center speaker dimensions (WxDxH)	291 x 103 x 101 mm
Satellite speaker dimensions (WxDxH)	115 x 88 x 176 mm
Subwoofer dimensions (W x D x H)	262 x 287 x 264 mm

Packaging data

Specification	Value
Package weight	7.4 kg

Packaging content

Specification	Value
Manual	Yes
Quick installation guide	Yes
Quick start guide	Yes
Remote control included	Yes

Other features

Specification	Value
24p support	Yes
4K Ultra HD upscaling	Yes
AirPlay	No
Audio amplifier	Yes
Bass reflex	Yes
Deep colour support	Yes
Display	LED
Easy setup	Yes
Equalizer customizable	Yes
Impedance	6 Ω
Number of amplifier channels	2 channels
Number of tuners	1 tuner(s)
Power LED	Yes
Smartphone/tablet remote support	Yes
Virtual surround	Yes
x.v.Color support	Yes
Satellite speakers wall mountable	Yes

Technical details

Specification	Value
Product colour	Black
Karaoke	No
BD-Live	Yes
Frequency range	30 - 25000 Hz
Power source type	AC
Sleep mode	Yes
Sound effects	Acoustic resonance, Compression, Flanger/Digital Signal Processing (DSP)
Speaker type	2-way
