BDX-610 home cinema system 5.1 channels
500 W 3D Black
Model BDX-610Part no. BDX610BEAN 4957812501385
107 specifications
- ColourBlack
- Optical disc player typeBlu-Ray player
- Card reader integratedNo
- 3DYes
- Audio output channels5.1 channels
- Front speaker type1-way
Overview
- Colour
- Black
- Optical disc player type
- Blu-Ray player
- Card reader integrated
- No
- 3D
- Yes
- Audio output channels
- 5.1 channels
- Front speaker type
- 1-way
- Brand
- Yamaha
- Category
- Home Cinema System
- Model
- BDX-610
- Part number
- BDX610B
- EAN / UPC
- 4957812501385
- Also known as
- Yamaha BDX-610 home cinema system 5.1 channels 500 W 3D Black
Specifications
107 specifications in 18 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | Blu-Ray player |
| Disc loading type | Tray |
| Disc types supported | BD-R, BD-RE, BD-ROM, CD, CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-ROM, DVD-RW |
| Number of optical discs | 1 discs |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Video formats supported | WMV |
| Full HD | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 500 W |
| Audio decoders | Dolby TrueHD, DTS-HD |
| Audio formats supported | MP3, WAV, WMA |
| Total Harmonic Distortion (THD) | 0.05% |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| FM band range | 87.5 - 108 MHz |
Front speakers
| Specification | Value |
|---|---|
| Front speaker type | 1-way |
| Front speakers RMS power | 30 W |
| Front speaker frequency range | 70 - 25000 Hz |
| Front speaker sensitivity | 83 dB |
| Front speaker impedance | 6 Ω |
| Front speaker woofer diameter (imperial) | 7 cm (2.76") |
| Front speaker peak power | 100 W |
| Front speakers wall mountable | Yes |
Center speaker
| Specification | Value |
|---|---|
| Center speaker type | 1-way |
| Center speaker RMS power | 30 W |
| Center speaker frequency range | 65 - 25000 Hz |
| Center speaker sensitivity | 84 dB |
| Center speaker impedance | 6 Ω |
| Center speaker mid-range driver diameter | 7 cm (2.76") |
| Center speaker peak power | 100 W |
| Center speaker wall mountable | Yes |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speaker type | 1-way |
| Satellite speakers RMS power | 30 W |
| Number of satellite speakers | 4 |
| Satellite speaker frequency range | 70 - 25000 Hz |
| Satellite speaker impedance | 6 Ω |
| Satellite speaker sensitivity | 83 dB |
| Satellite speaker mid-range driver diameter | 7 cm (2.76") |
| Satellite speaker peak power | 100 W |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Subwoofer RMS power | 30 W |
| Wireless subwoofer | No |
| Subwoofer driver diameter (imperial) | 16 cm (6.3") |
| Subwoofer frequency range | 30 - 2000 Hz |
| Subwoofer impedance | 6 Ω |
| Subwoofer peak power | 100 W |
| Subwoofer sensitivity | 86 dB |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Management features
| Specification | Value |
|---|---|
| Sleep timer | Yes |

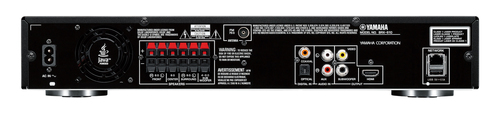

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 0 |
| Number of HDMI outputs | 1 |
| SCART ports quantity | 0 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Composite video out | 1 |
| S-Video inputs quantity | 0 |
| S-Video outputs quantity | 0 |
| AUX in | Yes |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 0 |
| Digital audio optical in | 1 |
| Digital audio optical out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| FM antenna | Yes |
| Microphone in | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 72 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220-240 V |
| Power consumption (standby) | 0.5 W |
| Supported batteries | AAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Front speaker weight | 480 g |
| Center speaker weight | 680 g |
| Satellite speaker dimensions (WxDxH) | 115 x 88 x 176 mm |
| Satellite speaker weight | 480 g |
| Subwoofer weight | 5.2 kg |
| Receiver weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Composite |

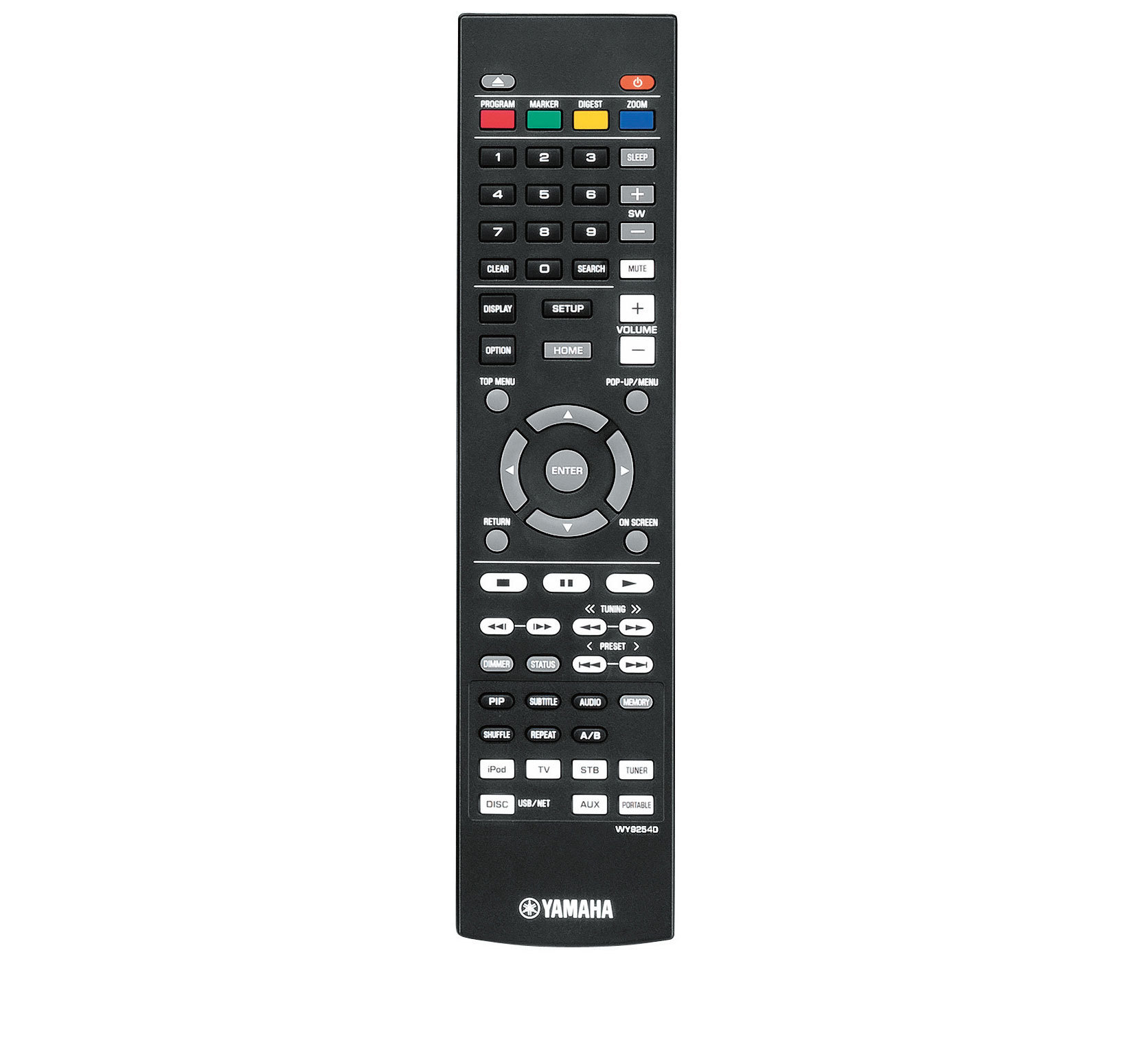

| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking compatibility | Not supported |
| Built-in HDD | No |
| TV tuner integrated | No |
| Center speaker depth | 10.3 cm |
| Center speaker height | 10.1 cm |
| Center speaker width | 29.1 cm |
| Detachable power cord | Yes |
| Display | LCD |
| Front speaker depth | 8.8 cm |
| Front speaker height | 17.6 cm |
| Front speaker width | 11.5 cm |
| Image formats supported | JPG |
| Receiver height | 8 cm |
| Receiver width | 43.5 cm |
| Satellite speaker driver diameter | 7 cm (2.76") |
| Subwoofer depth | 28.7 cm |
| Subwoofer height | 26.4 cm |
| Subwoofer width | 26.2 cm |
| Transmitter depth | 36.2 cm |
| Volume control | Rotary |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| USB direct playback | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Frequency range | 30 - 25000 Hz |
| Slideshow | Yes |
