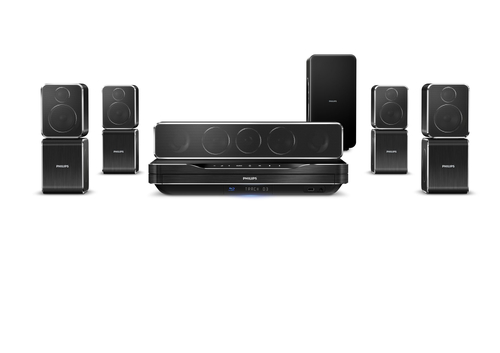

Philips 5.1 Home theater HTS9540/12
Model HTS9540/12EAN 8712581511814
68 specifications
- ColourBlack
- Optical disc player typeBlu-Ray
- Analog signal format systemNTSC, PAL
- Audio output channels5.1 channels
- FM radioYes
- Center speaker frequency range150 - 20000 Hz
Overview
- Colour
- Black
- Optical disc player type
- Blu-Ray
- Analog signal format system
- NTSC, PAL
- Audio output channels
- 5.1 channels
- FM radio
- Yes
- Center speaker frequency range
- 150 - 20000 Hz
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTS9540/12
- Part number
- HTS9540/12
- EAN / UPC
- 8712581511814
- Also known as
- Philips 5.1 Home theater HTS9540/12
Specifications
68 specifications in 14 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | Blu-Ray |
| Number of optical discs | 1 discs |
Video
| Specification | Value |
|---|---|
| Video formats supported | AVCHD, avi, MKV, MPEG1, MPEG2, MPEG4, WMV |
| Analog signal format system | NTSC, PAL |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 800 W |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Audio formats supported | MP3, WAV, WMA |
| Equalizer | Yes |
| Sound enhancement technology | Yes |
| MP3 bit rates | 112 kbps - 320 kbps |
| WMA bit rates | 48 - 192 Kbit/s |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | FM |
| Radio Data System (RDS) | Yes |
Center speaker
| Specification | Value |
|---|---|
| Center speaker frequency range | 150 - 20000 Hz |
| Center speaker impedance | 4 Ω |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speaker frequency range | 150 - 20000 Hz |
| Satellite speaker impedance | 8 Ω |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Subwoofer driver diameter (imperial) | 16.5 cm (6.5") |
| Subwoofer frequency range | 40 - 150 Hz |
| Subwoofer impedance | 4 Ω |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| AUX in | Yes |
| Digital audio coaxial in | 1 |
| Digital audio optical in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| FM antenna | Yes |
| Microphone in | Yes |
| Front / Side connections | USB, MP3 |
| I/O ports | HDMI 1.4 3D |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 100 W |
| Power consumption (standby) | 0.3 W |
| Supported batteries | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Front speaker dimensions (WxDxH) | 247 x 117 x 99 mm |
| Front speaker weight | 1.17 kg |
| Center speaker dimensions (WxDxH) | 85 x 111 x 435 mm |
| Center speaker weight | 1.67 kg |
| Subwoofer dimensions (W x D x H) | 397 x 342 x 196 mm |
| Subwoofer weight | 6.4 kg |
| Rear speaker weight | 1.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 400 mm |
| Package depth | 560 mm |
| Package height | 554 mm |
| Package weight | 23.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Quick start guide | Yes |
| Remote control included | Yes |
| Warranty card | Yes |
| Additional accessories | RWSS9500, STS9500, STS9510 |
Other features
| Specification | Value |
|---|---|
| Antenna | Yes |
| Centre speaker driver diameter | 7.62 cm (3") |
| Compatibility | Philips Cinema 21:9, iPod |
| HDMI | Yes |
| Image formats supported | GIF, JPG |
| Media types supported | USB |
| Power requirements | 220 - 240 V, 50 Hz |
| Rear speaker depth | 11.7 cm |
| Rear speaker height | 24.7 cm |
| Rear speaker width | 9.9 cm |
| Satellite speaker driver diameter | 5.08 cm (2") |
| Wall mountable | Yes |
| Picture enhancement | 720p, 1080i, 1080p |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| Frequency range | 20 - 20000 Hz |
