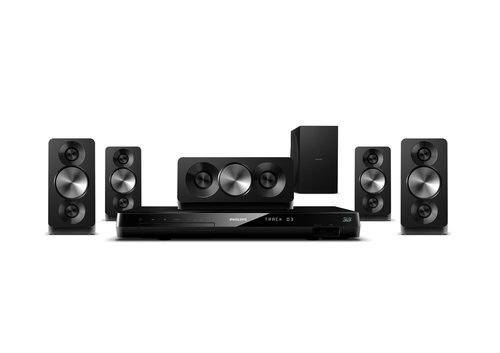

Philips HTS5563/55 home cinema system 5.1 channels

Philips HTS5563/55 home cinema system 5.1 channels

1000 W 3D Black

Model HTS5563/55EAN 8712581626822

99 specifications

Weight10.4 kg
ColourBlack
Optical disc player typeBlu-Ray player
Card reader integratedYes
Audio output channels5.1 channels
Front speakers RMS power166 W

See all specifications

Overview

Weight: 10.4 kg
Colour: Black
Optical disc player type: Blu-Ray player
Card reader integrated: Yes
Audio output channels: 5.1 channels
Front speakers RMS power: 166 W

Brand: Philips
Category: Home Cinema System
Model: HTS5563/55
Part number: HTS5563/55
EAN / UPC: 8712581626822
Also known as: Philips HTS5563/55 home cinema system 5.1 channels 1000 W 3D Black

Specifications

99 specifications in 18 groups

Optical drive

Specification	Value
Optical disc player type	Blu-Ray player
Disc loading type	Tray
Disc types supported	BD, BD-R, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	SVCD, VCD

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD, SDHC

Video

Specification	Value
3D	Yes
Video formats supported	AVCHD, AVI, DIVX, MKV, MP4, MPEG, MPEG1, MPEG2, MPEG4, MPG
Full HD	Yes
Progressive scan	Yes
Video enhancement technology	Yes
Video upscaling	Yes

Audio

Specification	Value
Audio output channels	5.1 channels
RMS rated power	1000 W
Audio decoders	Dolby Digital 5.1, Dolby Digital Plus, Dolby Pro Logic II, Dolby Surround, Dolby TrueHD, DTS-HD HR, DTS-HD Master Audio
Audio formats supported	AAC, MKA, MP3, WAV, WMA
Total Harmonic Distortion (THD)	30%
Equalizer	Yes
Sound enhancement technology	Yes
MP3 bit rates	32 - 320 Kbit/s
Audio Return Channel (ARC)	Yes

Radio

Specification	Value
FM radio	Yes
Supported radio bands	FM
Preset stations quantity	40

Front speakers

Specification	Value
Front speakers RMS power	166 W
Front speaker frequency range	150 - 20000 Hz
Front speaker impedance	4 Ω
Front speaker woofer diameter (imperial)	7.62 cm (3")

Center speaker

Specification	Value
Center speaker RMS power	166 W
Center speaker frequency range	150 - 20000 Hz
Center speaker impedance	4 Ω
Center speaker woofer diameter (imperial)	7.62 cm (3")

Satellite speakers

Specification	Value
Satellite speakers RMS power	166 W
Number of satellite speakers	2
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker impedance	4 Ω
Satellite speaker woofer diameter (imperial)	7.62 cm (3")
Wireless satellite speakers	Yes

Subwoofer

Specification	Value
Subwoofer type	Passive subwoofer
Subwoofer RMS power	166 W
Wireless subwoofer	No
Subwoofer driver diameter (imperial)	16.5 cm (6.5")
Subwoofer frequency range	20 - 150 Hz
Subwoofer impedance	4 Ω

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No

Ports & interfaces

Specification	Value
HDMI in	2
Number of HDMI outputs	1
SCART ports quantity	0
USB ports quantity	1
USB version	2.0
Component video (YPbPr/YCbCr) out	0
Composite video out	1
S-Video outputs quantity	0
AUX in	Yes
Digital audio coaxial in	1
Digital audio coaxial out	0
Digital audio optical in	1
Digital audio optical out	0
Ethernet LAN (RJ-45) ports	1
FM antenna	Yes
HDMI version	1.4

Power

Specification	Value
Power consumption (typical)	105 W
AC input frequency	50 - 60 Hz
AC input voltage	220-240 V
Power consumption (standby)	0.5 W

Weight & dimensions

Specification	Value
Main unit dimensions (WxDxH)	435 x 330 x 45 mm
Main unit weight	3.69 kg
Front speaker dimensions (WxDxH)	90 x 82 x 187 mm
Front speaker weight	570 g
Center speaker dimensions (WxDxH)	223 x 80 x 102 mm
Center speaker weight	570 g
Satellite speaker dimensions (WxDxH)	90 x 82 x 187 mm
Satellite speaker weight	570 g
Subwoofer dimensions (W x D x H)	178 x 343 x 303 mm
Subwoofer weight	3.9 kg

Packaging data

Specification	Value
Package weight	12.5 kg
Package dimensions (WxDxH)	600 x 327 x 393 mm

Packaging content

Specification	Value
Batteries included	Yes
Manual	Yes
Quick start guide	Yes
Remote control included	Yes
Warranty card	Yes

Other features

Specification	Value
Apple docking	Yes
Apple docking compatibility	Yes
Built-in HDD	No
TV tuner integrated	No
Image formats supported	GIF, JPG, PNG
Internet TV	Yes
Quantity	1
Video compression formats	AVCHD, MPEG1, MPEG2, MPEG4
Weight	10.4 kg

Certificates

Specification	Value
Consumer Electronics Control (CEC)	EasyLink

Technical details

Specification	Value
Product colour	Black
Karaoke	No
USB direct playback	Yes
Night mode	Yes
Slideshow	Yes
Smart TV	Yes
