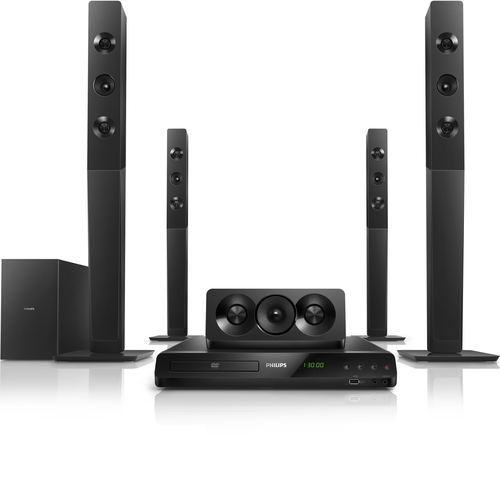

HTD5580/51 home cinema system 5.1 channels
1000 W Black
Model HTD5580/51EAN 8712581717407
86 specifications
- Weight19.7 kg
- ColourBlack
- Optical disc player typeDVD player
- 3DNo
- Audio output channels5.1 channels
- FM radioYes
Overview
- Weight
- 19.7 kg
- Colour
- Black
- Optical disc player type
- DVD player
- 3D
- No
- Audio output channels
- 5.1 channels
- FM radio
- Yes
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTD5580/51
- Part number
- HTD5580/51
- EAN / UPC
- 8712581717407
- Also known as
- Philips HTD5580/51 home cinema system 5.1 channels 1000 W Black
Specifications
86 specifications in 17 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | DVD player |
| Disc loading type | Tray |
| Disc types supported | CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Playback disc formats | SVCD, VCD |
Video
| Specification | Value |
|---|---|
| 3D | No |
| Video formats supported | AVI, DIVX, MPEG, MPEG1, MPEG2, MPEG4, MPG |
| Full HD | Yes |
| Video enhancement technology | Yes |
| Video upscaling | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 1000 W |
| Audio decoders | Dolby Digital 5.1 |
| Audio formats supported | MP3, WMA |
| Total Harmonic Distortion (THD) | 10% |
| Equalizer | Yes |
| Sound enhancement technology | Yes |
| MP3 bit rates | 32 - 320 Kbit/s |
| Audio Return Channel (ARC) | Yes |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | FM |
| Preset stations quantity | 40 |
Front speakers
| Specification | Value |
|---|---|
| Front speakers RMS power | 166 W |
| Front speaker frequency range | 150 - 20000 Hz |
| Front speaker impedance | 4 Ω |
| Front speaker woofer diameter (imperial) | 7.62 cm (3") |
Center speaker
| Specification | Value |
|---|---|
| Center speaker RMS power | 166 W |
| Center speaker frequency range | 150 - 20000 Hz |
| Center speaker impedance | 4 Ω |
| Center speaker woofer diameter (imperial) | 7.62 cm (3") |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speakers RMS power | 166 W |
| Satellite speaker frequency range | 150 - 20000 Hz |
| Satellite speaker impedance | 4 Ω |
| Satellite speaker woofer diameter (imperial) | 7.62 cm (3") |
| Wireless satellite speakers | No |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Subwoofer RMS power | 166 W |
| Wireless subwoofer | No |
| Subwoofer driver diameter (imperial) | 20.3 cm (8") |
| Subwoofer frequency range | 20 - 150 Hz |
| Subwoofer impedance | 4 Ω |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 0 |
| Number of HDMI outputs | 1 |
| SCART ports quantity | 0 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Composite video out | 1 |
| S-Video outputs quantity | 0 |
| Audio (L/R) in | 1 |
| Digital audio coaxial in | 0 |
| Digital audio coaxial out | 0 |
| Digital audio optical in | 1 |
| Digital audio optical out | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| FM antenna | Yes |
| HDMI version | 1.4 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 105 W |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240 V |
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Front speaker dimensions (WxDxH) | 247 x 242 x 1090 mm |
| Center speaker dimensions (WxDxH) | 223 x 80 x 100 mm |
| Center speaker weight | 650 g |
| Satellite speaker dimensions (WxDxH) | 247 x 242 x 1090 mm |
| Satellite speaker weight | 2.66 kg |
| Subwoofer weight | 3.66 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 21.4 kg |
| Package dimensions (WxDxH) | 664 x 400 x 545 mm |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking compatibility | Not supported |
| Built-in HDD | No |
| TV tuner integrated | No |
| Image formats supported | GIF, JPG, PNG, TIF |
| Quantity | 1 |
| Video compression formats | MPEG1, MPEG2, MPEG4 |
| Weight | 19.7 kg |
Certificates
| Specification | Value |
|---|---|
| Consumer Electronics Control (CEC) | EasyLink |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| Karaoke | Yes |
| USB direct playback | Yes |
| Night mode | Yes |
