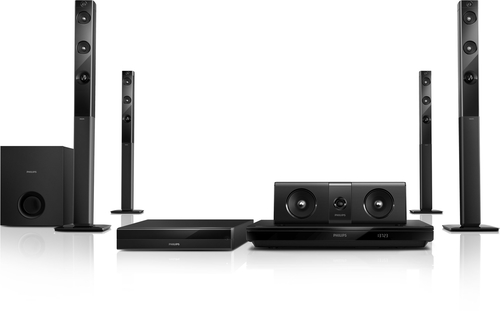

5.1 3D Blu-ray Home theatre HTB5580/78
Model HTB5580/78EAN 8712581719456
86 specifications
- Weight2.44 kg
- ColourBlack
- Optical disc player typeBlu-Ray player
- 3DYes
- Audio output channels5.1 channels
- Front speakers RMS power166 W
Overview
- Weight
- 2.44 kg
- Colour
- Black
- Optical disc player type
- Blu-Ray player
- 3D
- Yes
- Audio output channels
- 5.1 channels
- Front speakers RMS power
- 166 W
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTB5580/78
- Part number
- HTB5580/78
- EAN / UPC
- 8712581719456
- Also known as
- Philips 5.1 3D Blu-ray Home theatre HTB5580/78
Specifications
86 specifications in 17 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | Blu-Ray player |
| Disc loading type | Tray |
| Disc types supported | BD-R, BD-R DL, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Playback disc formats | SVCD, VCD |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Video formats supported | AVCHD, AVI, DIVX, DIVX HD, MKV, MP4, MPEG, MPEG1, MPEG2, MPEG4, MPG |
| Full HD | Yes |
| Progressive scan | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 1000 W |
| Audio decoders | Dolby Digital 5.1, Dolby Digital Plus, Dolby Pro Logic II, Dolby Surround, Dolby TrueHD, DTS-HD Master Audio |
| Audio formats supported | AAC, FLAC, MKA, MP3, WAV, WMA |
| Total Harmonic Distortion (THD) | 10% |
| Sound enhancement technology | Yes |
| MP3 bit rates | 8 - 320 Kbit/s |
| Audio Return Channel (ARC) | Yes |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | FM |
Front speakers
| Specification | Value |
|---|---|
| Front speakers RMS power | 166 W |
| Front speaker frequency range | 150 - 20000 Hz |
| Front speaker impedance | 3 Ω |
Center speaker
| Specification | Value |
|---|---|
| Center speaker RMS power | 166 W |
| Center speaker frequency range | 150 - 20000 Hz |
| Center speaker impedance | 3 Ω |
| Center speaker woofer diameter (imperial) | 7.62 cm (3") |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speakers RMS power | 166 W |
| Satellite speaker frequency range | 150 - 20000 Hz |
| Satellite speaker impedance | 3 Ω |
| Wireless satellite speakers | Yes |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Subwoofer RMS power | 166 W |
| Wireless subwoofer | No |
| Subwoofer driver diameter (imperial) | 20.3 cm (8") |
| Subwoofer frequency range | 20 - 150 Hz |
| Subwoofer impedance | 3 Ω |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Near Field Communication (NFC) | Yes |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 0 |
| Number of HDMI outputs | 1 |
| SCART ports quantity | 0 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Component video (YPbPr/YCbCr) out | 0 |
| S-Video outputs quantity | 0 |
| Audio (L/R) in | 1 |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 0 |
| Digital audio optical in | 1 |
| Digital audio optical out | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| FM antenna | Yes |
| HDMI version | 1.4 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 160 W |
| AC input voltage | 220-240 V |
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Main unit dimensions (WxDxH) | 435 x 291 x 58 mm |
| Front speaker dimensions (WxDxH) | 100 x 101 x 1178 mm |
| Center speaker dimensions (WxDxH) | 314 x 83 x 103 mm |
| Satellite speaker dimensions (WxDxH) | 100 x 101 x 1178 mm |
| Subwoofer dimensions (W x D x H) | 228 x 310 x 293 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 26.9 kg |
| Package dimensions (WxDxH) | 954 x 376 x 494 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Remote control included | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking compatibility | Not supported |
| Built-in HDD | No |
| TV tuner integrated | No |
| Deep colour support | Yes |
| Image formats supported | GIF, JPG, PNG |
| Internet TV | Yes |
| Miracast | Yes |
| Quantity | 1 |
| Video compression formats | AVCHD, MPEG1, MPEG2, MPEG4 |
| Weight | 2.44 kg |
Certificates
| Specification | Value |
|---|---|
| Consumer Electronics Control (CEC) | EasyLink |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| Karaoke | Yes |
| USB direct playback | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Night mode | Yes |
| Slideshow | Yes |
| Smart TV | Yes |
