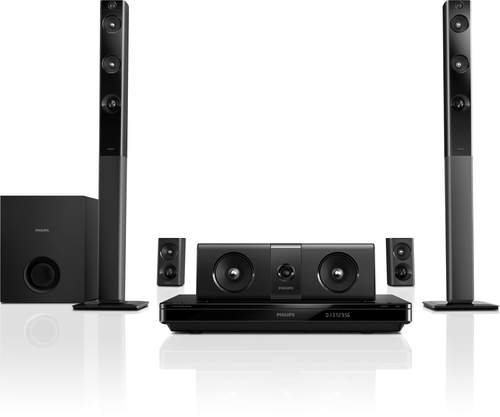

Philips HTB5540D/51 home cinema system 5.1 channels

1000 W 3D Black

Model HTB5540D/51EAN 8712581691486

106 specifications

Power160 W
Weight2.72 kg
ColourBlack
Optical disc player typeBlu-Ray player
Card reader integratedNo
3DYes

See all specifications

Overview

Power: 160 W
Weight: 2.72 kg
Colour: Black
Optical disc player type: Blu-Ray player
Card reader integrated: No
3D: Yes

Brand: Philips
Category: Home Cinema System
Model: HTB5540D/51
Part number: HTB5540D/51
EAN / UPC: 8712581691486
Also known as: Philips HTB5540D/51 home cinema system 5.1 channels 1000 W 3D Black

Specifications

106 specifications in 17 groups

Optical drive

Specification	Value
Optical disc player type	Blu-Ray player
Disc loading type	Tray
Disc types supported	BD, BD-R, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Number of optical discs	1 discs
Playback disc formats	Blu-Ray video, CD audio, SVCD, VCD

Storage

Specification	Value
Card reader integrated	No

Video

Specification	Value
3D	Yes
Video formats supported	AVCHD, AVI, DIVX, DIVX HD, MKV, MP4, MPEG, MPEG1, MPEG2, MPEG4, MPG
Full HD	Yes
Progressive scan	Yes
Video enhancement technology	Yes
Video upscaling	Yes

Audio

Specification	Value
Audio output channels	5.1 channels
RMS rated power	1000 W
Audio decoders	Dolby Digital, Dolby Digital 5.1, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, DTS-HD, DTS-HD Master Audio
Audio formats supported	AAC, FLAC, MKA, MP3, OGG, WAV, WMA
Total Harmonic Distortion (THD)	30%
Equalizer	Yes
Sound enhancement technology	Yes
Audio Return Channel (ARC)	Yes

Radio

Specification	Value
FM radio	Yes
Supported radio bands	FM
Preset stations quantity	40

Front speakers

Specification	Value
Front speakers RMS power	166 W
Front speaker frequency range	150 - 20000 Hz
Front speaker impedance	4 Ω
Front speaker tweeter diameter	1.78 cm (0.7")
Front speaker woofer diameter (imperial)	7.62 cm (3")
Front speakers wall mountable	Yes

Center speaker

Specification	Value
Center speaker RMS power	166 W
Center speaker frequency range	150 - 20000 Hz
Center speaker impedance	4 Ω
Center speaker tweeter diameter	1.78 cm (0.7")
Center speaker mid-range driver diameter	7.62 cm (3")
Center speaker wall mountable	No

Satellite speakers

Specification	Value
Satellite speakers RMS power	166 W
Satellite speaker impedance	4 Ω
Satellite speaker mid-range driver diameter	7.62 cm (3")
Wireless satellite speakers	Yes

Subwoofer

Specification	Value
Subwoofer type	Passive subwoofer
Subwoofer RMS power	166 W
Subwoofer driver diameter (imperial)	20.3 cm (8")
Subwoofer impedance	4 Ω

Network

Specification	Value
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi ready	Yes

Ports & interfaces

Specification	Value
HDMI in	2
Number of HDMI outputs	1
SCART ports quantity	0
USB ports quantity	2
USB version	2.0
Component video (YPbPr/YCbCr) out	0
Composite video out	1
S-Video outputs quantity	0
AUX in	Yes
Audio (L/R) in	1
Digital audio coaxial in	1
Digital audio coaxial out	0
Digital audio optical in	1
Digital audio optical out	0
Ethernet LAN (RJ-45) ports	1
FM antenna	Yes
HDMI version	1.4
Microphone in	Yes

Weight & dimensions

Specification	Value
Main unit dimensions (WxDxH)	435 x 287 x 56 mm
Main unit weight	3.69 kg
Front speaker dimensions (WxDxH)	100 x 101 x 1178 mm
Front speaker weight	570 g
Center speaker dimensions (WxDxH)	314.2 x 83 x 110 mm
Center speaker weight	570 g
Satellite speaker dimensions (WxDxH)	100.17 x 130 x 200 mm
Satellite speaker weight	570 g
Subwoofer dimensions (W x D x H)	228.8 x 310 x 293 mm
Subwoofer weight	3.9 kg

Packaging data

Specification	Value
Package width	93.2 mm
Package depth	37.2 mm
Package height	38.2 mm
Package weight	12.5 kg
Package dimensions (WxDxH)	932 x 372 x 382 mm

Packaging content

Specification	Value
Manual	No

Other features

Specification	Value
Apple docking compatibility	Not supported
Built-in HDD	No
TV tuner integrated	No
CD-RW playback	Yes
Centre speaker dimensions (WxHxD)	314.2 x 110 x 83 mm
Centre speaker driver diameter	2.54 cm (1")
Channels quantity	40 channels
Deep colour support	Yes
Depth	280 mm
Game mode	Yes
Height	5.8 mm
Image formats supported	GIF, JPG, PNG
Internet TV	Yes
Quantity	1
Wall mountable	Yes
Weight	2.72 kg
Width	43.5 mm
Subwoofer dimensions (WxHxD)	228.8 x 293 x 310 mm

Certificates

Specification	Value
Consumer Electronics Control (CEC)	EasyLink

Technical details

Specification	Value
Product colour	Black
Karaoke	Yes
BD-Live	Yes
Power	160 W
Slideshow	Yes
Smart TV	Yes
