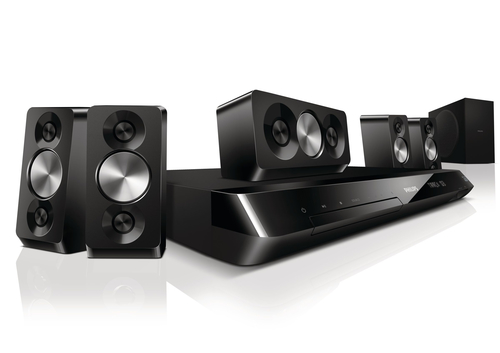

Philips 5.1 3D Blu-ray Home theater HTB5520G/12
Model HTB5520G/12EAN 8712581710767
71 specifications
- ColourBlack
- Optical disc player typeBlu-Ray player
- 3DYes
- Audio output channels5.1 channels
- Front speakers RMS power332 W
- Center speaker RMS power166 W
Overview
- Colour
- Black
- Optical disc player type
- Blu-Ray player
- 3D
- Yes
- Audio output channels
- 5.1 channels
- Front speakers RMS power
- 332 W
- Center speaker RMS power
- 166 W
- Brand
- Philips
- Category
- Home Cinema System
- Model
- HTB5520G/12
- Part number
- HTB5520G/12
- EAN / UPC
- 8712581710767
- Also known as
- Philips 5.1 3D Blu-ray Home theater HTB5520G/12
Specifications
71 specifications in 17 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | Blu-Ray player |
| Disc types supported | BD, BD-R, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Number of optical discs | 1 discs |
| Playback disc formats | Blu-Ray audio, Blu-Ray video, CD audio, CD video, SVCD, VCD |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Video formats supported | DIVX, DIVX HD, MPEG1, MPEG2 |
| Full HD | Yes |
| Progressive scan | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| RMS rated power | 1000 W |
| Audio decoders | Dolby Digital 5.1, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, DTS-HD Master Audio |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
Front speakers
| Specification | Value |
|---|---|
| Front speakers RMS power | 332 W |
| Front speaker frequency range | 150 - 20000 Hz |
| Front speaker impedance | 3 Ω |
Center speaker
| Specification | Value |
|---|---|
| Center speaker RMS power | 166 W |
| Center speaker frequency range | 150 - 20000 Hz |
| Center speaker impedance | 3 Ω |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speakers RMS power | 332 W |
| Number of satellite speakers | 2 |
| Satellite speaker frequency range | 150 - 20000 Hz |
| Satellite speaker impedance | 3 Ω |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Passive subwoofer |
| Subwoofer RMS power | 166 W |
| Wireless subwoofer | No |
| Subwoofer frequency range | 20 - 150 Hz |
| Subwoofer impedance | 3 Ω |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Digital audio coaxial out | 1 |
| Digital audio optical out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| FM antenna | Yes |
| HDMI version | 1.4 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 160 W |
| AC input voltage | 220-240 V |
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Main unit dimensions (WxDxH) | 435 x 291 x 58 mm |
| Main unit weight | 2.67 kg |
| Front speaker dimensions (WxDxH) | 100 x 130 x 229 mm |
| Center speaker dimensions (WxDxH) | 314 x 83 x 103 mm |
| Satellite speaker dimensions (WxDxH) | 100 x 125 x 192 mm |
| Subwoofer dimensions (W x D x H) | 228 x 310 x 293 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 498 mm |
| Package depth | 376 mm |
| Package height | 493 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Apple docking compatibility | Not supported |
| Built-in HDD | No |
| Image formats supported | GIF, JPG |
| Miracast | Yes |
| Package weight | 13 kg |
| Packaging net weight | 10.49 kg |
| Packaging tare weight | 2.51 kg |
Outer carton
| Specification | Value |
|---|---|
| Gross weight of outer carton | 13 kg |
| Height (cm) outer carton | 49.3 cm |
| Length (cm) outer carton | 49.8 cm |
| Net weight of outer carton | 10.49 kg |
| Quantity outer carton | 1 pc(s) |
| Tare weight outer carton | 2.51 kg |
| Width (cm) outer carton | 37.6 cm |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| USB direct playback | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Smart TV | Yes |
