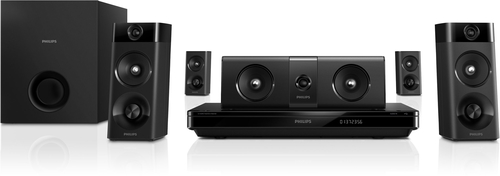

Philips HTB5510D/78 home cinema system 5.1 channels

1000 W 3D

Model HTB5510D/78EAN 8712581680008

92 specifications

Power105 W
Optical disc player typeBlu-Ray player
3DYes
Audio output channels5.1 channels
Center speaker frequency range150 - 20000 Hz
Satellite speakers RMS power133 W

See all specifications

Overview

Power: 105 W
Optical disc player type: Blu-Ray player
3D: Yes
Audio output channels: 5.1 channels
Center speaker frequency range: 150 - 20000 Hz
Satellite speakers RMS power: 133 W

Brand: Philips
Category: Home Cinema System
Model: HTB5510D/78
Part number: HTB5510D/78
EAN / UPC: 8712581680008
Also known as: Philips HTB5510D/78 home cinema system 5.1 channels 1000 W 3D

Specifications

92 specifications in 17 groups

Optical drive

Specification	Value
Optical disc player type	Blu-Ray player
Disc types supported	BD, BD-R, BD-RE, CD, CD-DA, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	SVCD, VCD

Video

Specification	Value
3D	Yes
Video formats supported	AVI, DIVX, MKV, MP4, MPEG, MPG
Aspect ratio	21:9
Progressive scan	Yes
Video upscaling	Yes

Audio

Specification	Value
Audio output channels	5.1 channels
RMS rated power	1000 W
Audio decoders	DTS Digital Surround, DTS-HD, DTS-HD Master Audio, Dolby Digital 5.1, Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
Audio formats supported	AAC, MKA, MP3, WMA
Total Harmonic Distortion (THD)	10%
Equalizer	Yes
MP3 bit rates	32 - 320 Kbit/s
Audio Return Channel (ARC)	Yes

Radio

Specification	Value
FM radio	Yes
Supported radio bands	FM
Radio Data System (RDS)	Yes
Preset stations quantity	40

Center speaker

Specification	Value
Center speaker frequency range	150 - 20000 Hz
Center speaker impedance	4 Ω
Center speaker peak power	133 W

Satellite speakers

Specification	Value
Satellite speakers RMS power	133 W
Number of satellite speakers	4
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker impedance	4 Ω
Wireless satellite speakers	Yes

Soundbar speaker

Specification	Value
Number of tweeter drivers	1
Woofer diameter (imperial)	7.62 cm (3")

Subwoofer

Specification	Value
Subwoofer type	Passive subwoofer
Subwoofer RMS power	133 W
Subwoofer driver diameter (imperial)	2.54 cm (1")
Subwoofer frequency range	20 - 150 Hz
Subwoofer impedance	4 Ω

Network

Specification	Value
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes

Ports & interfaces

Specification	Value
HDMI in	2
Number of HDMI outputs	1
SCART ports quantity	0
USB ports quantity	1
USB version	3.2 Gen 1 (3.1 Gen 1)
Component video (YPbPr/YCbCr) out	0
Composite video out	1
S-Video outputs quantity	0
Audio (L/R) in	1
Digital audio coaxial in	1
Digital audio coaxial out	0
Digital audio optical in	1
Ethernet LAN (RJ-45) ports	1
FM antenna	Yes
HDMI version	1.4
Microphone in	Yes

Power

Specification	Value
Power consumption (typical)	105 W
AC input voltage	110-240 V
Power consumption (standby)	0.5 W

Weight & dimensions

Specification	Value
Main unit dimensions (WxDxH)	435 x 280 x 58 mm
Main unit weight	11.7 kg
Front speaker dimensions (WxDxH)	100.17 x 130.33 x 227.7 mm
Front speaker weight	0.63 g
Center speaker dimensions (WxDxH)	314.2 x 83 x 111.04 mm
Center speaker weight	1 kg
Subwoofer dimensions (W x D x H)	228.8 x 310 x 293 mm
Subwoofer weight	4 kg

Packaging data

Specification	Value
Package width	4940 mm
Package depth	3720 mm
Package height	4810 mm
Package weight	11.7 kg
Package dimensions (WxDxH)	600 x 393 x 327 mm

Packaging content

Specification	Value
Batteries included	Yes
Cables included	AC, HDMI
Manual	Yes
Quick start guide	Yes
Remote control included	Yes
Warranty card	Yes

Other features

Specification	Value
Number of woofer drivers	2
Deep colour support	Yes
Image formats supported	GIF, JPG
Quantity	1
Video compression formats	AVCHD, DivX, MPEG1, MPEG2, MPEG4
Wireless connection	Yes
iPhone connectivity	Yes
iPod connectivity	Yes
Picture enhancement	HD (720p, 1080i, 1080p / 24fps)

Certificates

Specification	Value
Consumer Electronics Control (CEC)	EasyLink

Technical details

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Night mode	Yes
Power	105 W
Slideshow	Yes
Smart TV	Yes
Type of shelf-placement	Horizontal
