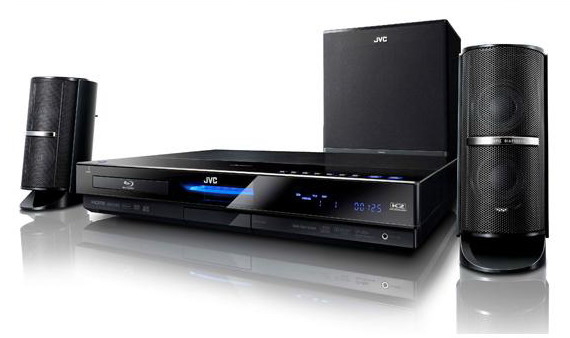

JVC NX-BD3 Blu-ray Network Media System
Model NX-BD3 Blu-ray Network Media SystemPart no. NX-BD3
44 specifications
- Weight5 kg
- Optical disc player typeDVD player
- Audio output channels4.1 channels
- Radio Data System (RDS)Yes
- Center speaker RMS power55 W
- Subwoofer typeActive subwoofer
Overview
- Weight
- 5 kg
- Optical disc player type
- DVD player
- Audio output channels
- 4.1 channels
- Radio Data System (RDS)
- Yes
- Center speaker RMS power
- 55 W
- Subwoofer type
- Active subwoofer
- Brand
- JVC
- Category
- Home Cinema System
- Model
- NX-BD3 Blu-ray Network Media System
- Part number
- NX-BD3
- Also known as
- JVC NX-BD3 Blu-ray Network Media System home cinema system 4.1 channels 420 W
Specifications
44 specifications in 12 groups
Optical drive
| Specification | Value |
|---|---|
| Optical disc player type | DVD player |
| Disc types supported | BD-ROM |
| Number of optical discs | 1 discs |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 4.1 channels |
| RMS rated power | 420 W |
| Audio decoders | Dolby Digital, Dolby Pro Logic II, DTS |
| Equalizer | Yes |
Radio
| Specification | Value |
|---|---|
| Radio Data System (RDS) | Yes |
| Preset stations quantity | 45 |
Center speaker
| Specification | Value |
|---|---|
| Center speaker RMS power | 55 W |
| Center speaker sensitivity | 76 dB |
| Center speaker impedance | 3 Ω |
Satellite speakers
| Specification | Value |
|---|---|
| Satellite speakers RMS power | 55 W |
| Satellite speaker impedance | 3 Ω |
| Satellite speaker sensitivity | 76 dB |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Active subwoofer |
| Subwoofer RMS power | 200 W |
| Subwoofer frequency range | 30 - 200 Hz |
| Subwoofer impedance | 6 Ω |
| Subwoofer sensitivity | 75 dB |
Management features
| Specification | Value |
|---|---|
| Sleep timer | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| SCART ports quantity | 2 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| Audio (L/R) in | 1 |
| Digital audio optical in | 1 |
| Headphone outputs | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 0.7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Center speaker dimensions (WxDxH) | 88 x 127 x 203 mm |
| Center speaker weight | 1.3 kg |
| Subwoofer dimensions (W x D x H) | 361 x 303 x 300 mm |
| Subwoofer weight | 11.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Audio system | DD+/Dolby TrueHD (DD Core only) / DTS-HD High Resolution/DTS-HD Master Audio (DTS Core only) / Multi-ch LPCM (Re-encoded Dolby Digital or Downmix 2ch) |
| Dimensions (WxDxH) | 460 x 79 x 360 mm |
| Media types supported | AVCHD, MP3, WMA, WAV (L.PCM), JPEG Digital Still, MPEG-2, DivX (ver.3/4/5/6/) |
| Power requirements | AC 230V, 50Hz |
| Speakers | 5.5cm, Cone x 2, Anisotropic Diaphragm |
| Surround speaker dimensions (WxHxD) | 88 x 203 x 127 mm |
| Surround speaker weight | 1.3 kg |
| Weight | 5 kg |
| Set weight | 19.1 kg |
