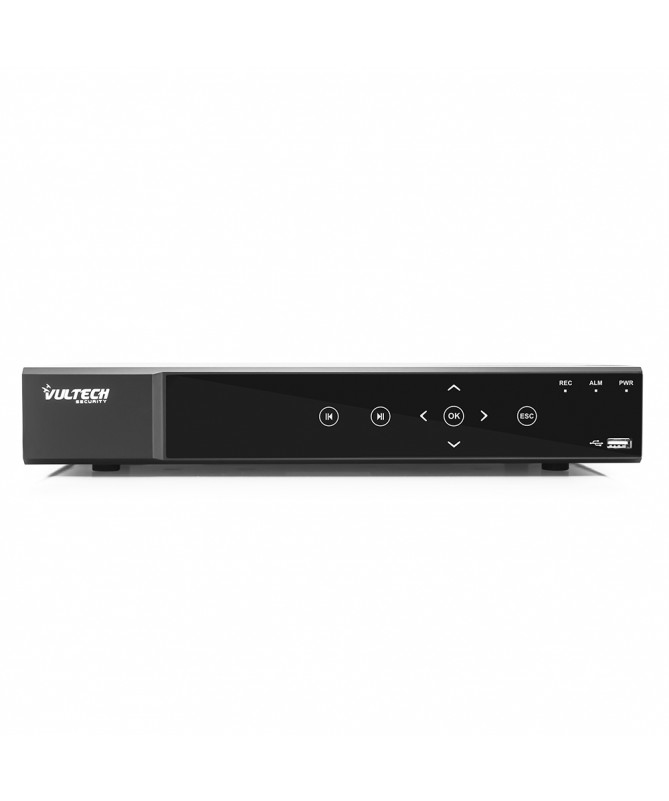

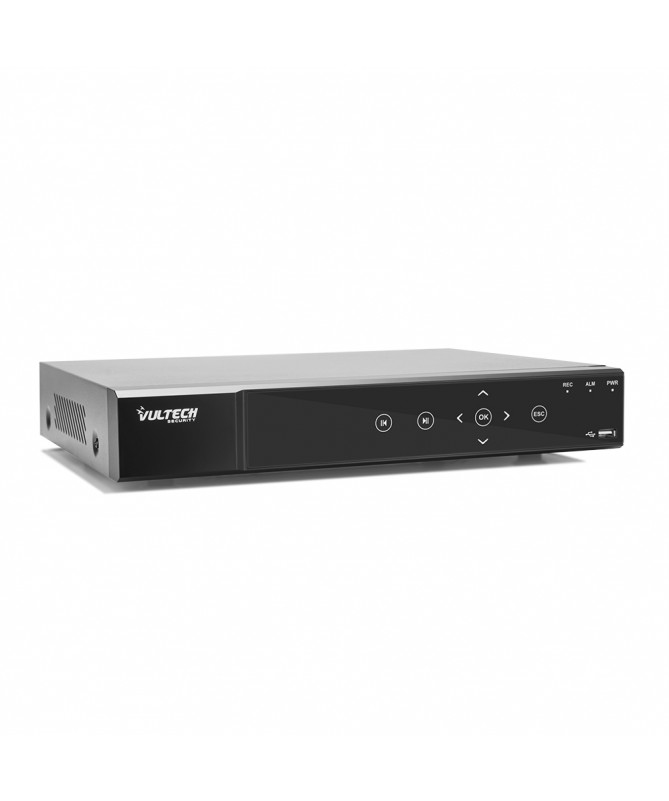

VS-UVR7016-RTN1 digital video recorder (DVR) Black
Model VS-UVR7016-RTN1EAN 8057284625230
27 specifications
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- BNC input ports16
- Ethernet LANYes
- Number of HDDs supported2
- Power supply typeDC
Overview
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- BNC input ports
- 16
- Ethernet LAN
- Yes
- Number of HDDs supported
- 2
- Power supply type
- DC
- Brand
- Vultech Security
- Category
- Digital Video Recorders (DVR)
- Model
- VS-UVR7016-RTN1
- Part number
- VS-UVR7016-RTN1
- EAN / UPC
- 8057284625230
- Also known as
- Vultech Security VS-UVR7016-RTN1 digital video recorder (DVR) Black
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 |
| Video compression formats | H.264 |
| Bit rate | 2707 Kbit/s |
| Languages support | English, Spanish, Italian, Portuguese |
| Motion sensor | Yes |
| Product colour | Black |

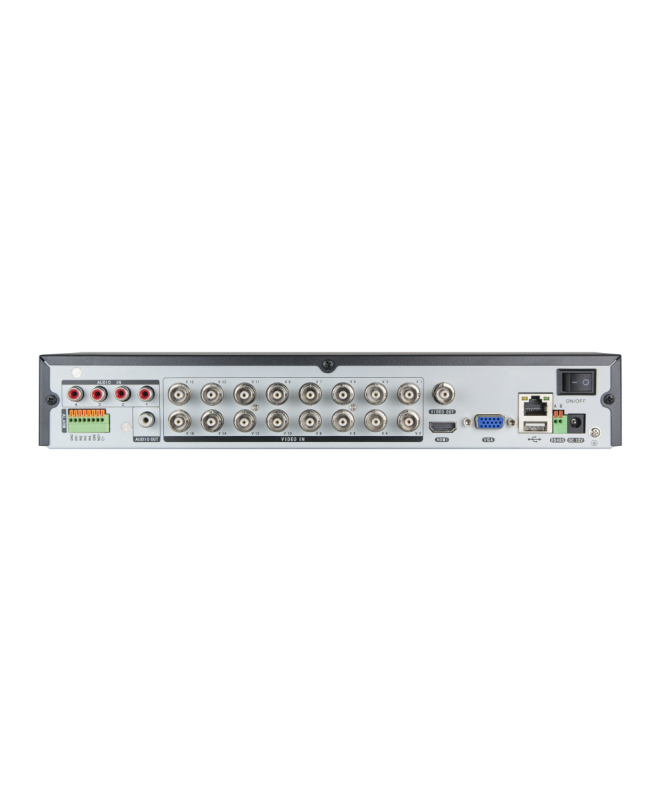

Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 4 |
| Audio output | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | TCP/IP, P2P, HTTP, HTTPS, DHCP, DNS, DDNS, RTSP, SMTP, MULTICAST, NTP, UPNP™, SNMP, FTP, 3G/4G, Wi-Fi, Cloud Storage |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 12 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 326 mm |
| Depth | 243 mm |
| Height | 52 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 50 °C |
